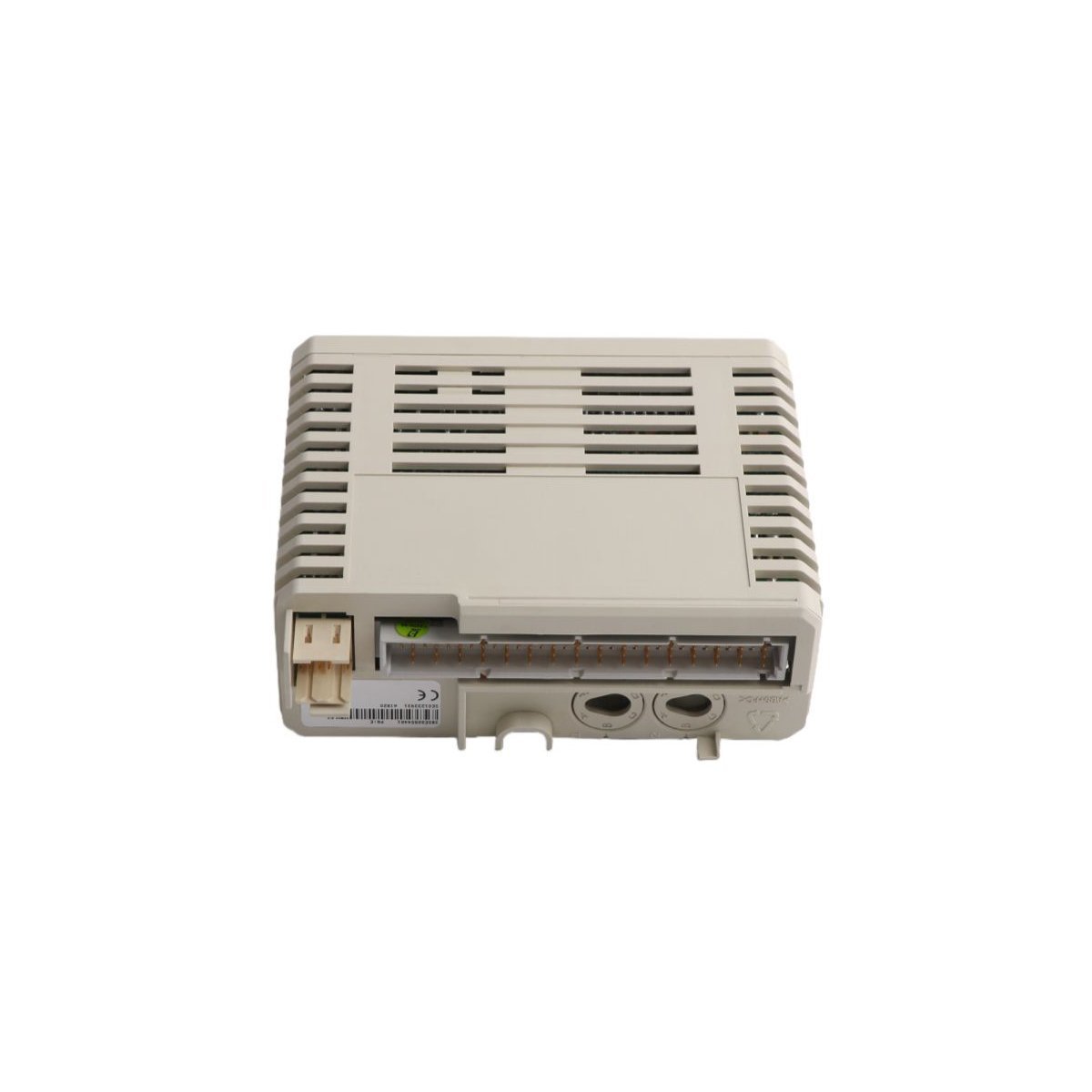

The ABB AI820 3BSE008544R1 is a 4-channel analog input module for S800 I/O systems. It features 14-bit resolution and group isolation for precision DCS monitoring.
The ABB AI820 3BSE008544R1 serves as a high-precision analog input interface for the S800 I/O system. This module specializes in differential and bipolar signal processing for complex automation tasks. It supports four distinct channels for measuring diverse electrical variables in real time. Engineers frequently deploy this unit within Advant-800xA architectures to monitor critical process sensors. Because it handles both voltage and current inputs, it provides exceptional flexibility for plant operators. It bridges the gap between field instruments and digital control logic.
This input module delivers superior data conversion through a 14-bit plus sign resolution. It reliably processes standard industrial signals like 4-20 mA and ±10 V ranges. Additionally, each channel features robust protection against accidental overvoltage up to 30V DC. This hardware safety prevents localized faults from damaging the internal module circuitry. The unit also includes a dedicated power distribution feature for two-wire transmitters. Consequently, external field devices receive stable power without needing extra current-limiting hardware.
| Specification Item | Details |
| Model Number | AI820 |
| Order Number | 3BSE008544R1 |
| Manufacturer | ABB |
| Number of Channels | 4 (Differential, Bipolar) |
| Resolution | 14 Bits + Sign |
| Signal Ranges | ±20 mA, 0-20 mA, 4-20 mA, ±10 V |
| Weight | 1.08 kg |
| Dimensions | 18.5 x 8.5 x 30.5 cm |
The AI820 architecture prioritizes signal integrity through group isolation from the ModuleBus. This design effectively minimizes the impact of electrical noise in high-interference areas. Furthermore, the module operates efficiently within a standard temperature range of 0°C to 55°C. The rugged Swedish construction ensures long-term stability in demanding process control cabinets. It also facilitates smart instrument integration through supported communication protocols. This reliability makes it a staple component for modern industrial infrastructure.
The compact dimensions of the 3BSE008544R1 allow for dense mounting in standard DCS racks. Its modular design simplifies maintenance and hardware replacement procedures during plant upgrades. Moreover, the unit integrates seamlessly with Ethernet router services for remote diagnostic monitoring. Technicians can easily configure each channel to match specific field sensor requirements. This adaptability reduces the need for multiple specialized boards in a single cabinet. It remains an active and supported part of the ABB automation portfolio.
