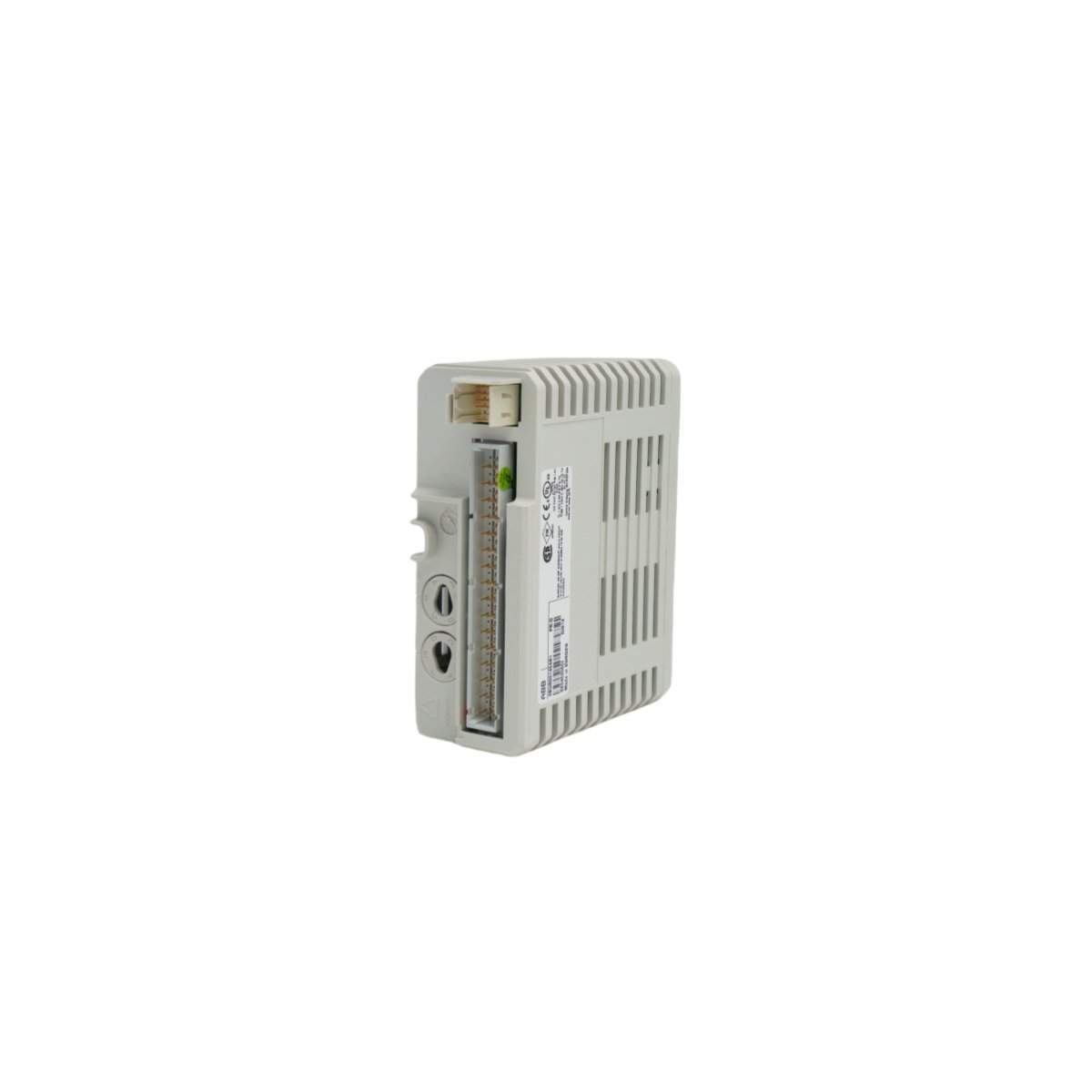

ABB DI814 3BUR001454R1 S800 Digital Input Module

Digital Signal Monitoring and System Logic

The ABB DI814 3BUR001454R1 is a high-density digital input module designed for the S800 I/O system, primarily utilized within the ABB Ability™ System 800xA and AC 800M controller environments. This module actively monitors 16 independent channels, processing 24V DC signals from field devices such as pushbuttons, limit switches, and proximity sensors. By converting these binary field signals into digital data for the controller, the DI814 allows the Distributed Control System (DCS) to make real-time logic decisions. Because the module is built for high-speed industrial pulse detection, it ensures that even rapid state changes are captured accurately without data loss.

Electrical Isolation and Signal Integrity

To ensure the highest levels of system safety and availability, the DI814 features comprehensive galvanic isolation. This protective barrier actively separates the 16 field input channels from the sensitive internal system logic and the ModuleBus. By isolating the field side, the module effectively prevents transient voltage surges or ground loop currents from damaging the central processor. Furthermore, each input channel includes filtered circuitry to suppress electromagnetic interference (EMI) and contact bounce, delivering a “clean” signal to the control logic even in electrically noisy industrial settings.

Installation Efficiency and Cabinet Optimization

The DI814 is engineered with a compact “S800 Small” form factor, weighing only 0.16 kg, which allows for high-density mounting on standard DIN rails. This design actively optimizes cabinet space, which is often a premium in offshore platforms or crowded control rooms. The module features hot-swap capability when used with the appropriate terminal base, allowing maintenance teams to replace the unit without powering down the entire I/O station. This “Plug-and-Produce” approach significantly reduces mean time to repair (MTTR) and minimizes operational downtime during scheduled maintenance or hardware upgrades.

Core Technical Specifications

• Manufacturer: ABB
• Model Number: DI814
• Order Code: 3BUR001454R1
• Product Range: S800 I/O
• Input Type: Digital / Binary
• Number of Channels: 16 Channels
• Rated Voltage: 24 V DC
• Input Current: Optimized for 24V current loops
• Physical Weight: 0.16 kg
• Dimensions: 4.5 cm x 10.5 cm x 12.0 cm
• Operating Temperature: Designed for harsh industrial ranges
• Origin: Sweden

Primary Industrial Applications

• Monitoring status contacts for pumps, motors, and valves.
• Interfacing with safety interlocks and emergency stop circuits.
• Capturing limit switch data in material handling and conveyor systems.
• General-purpose binary signal acquisition in chemical and power plants.
