The ABB DP820 3BSE013228R1 is a dual-channel S800 I/O pulse counter featuring an RS-422 interface. It supports high-frequency signal processing up to 1.5 MHz, making it ideal for precision speed and position monitoring in 800xA control systems.

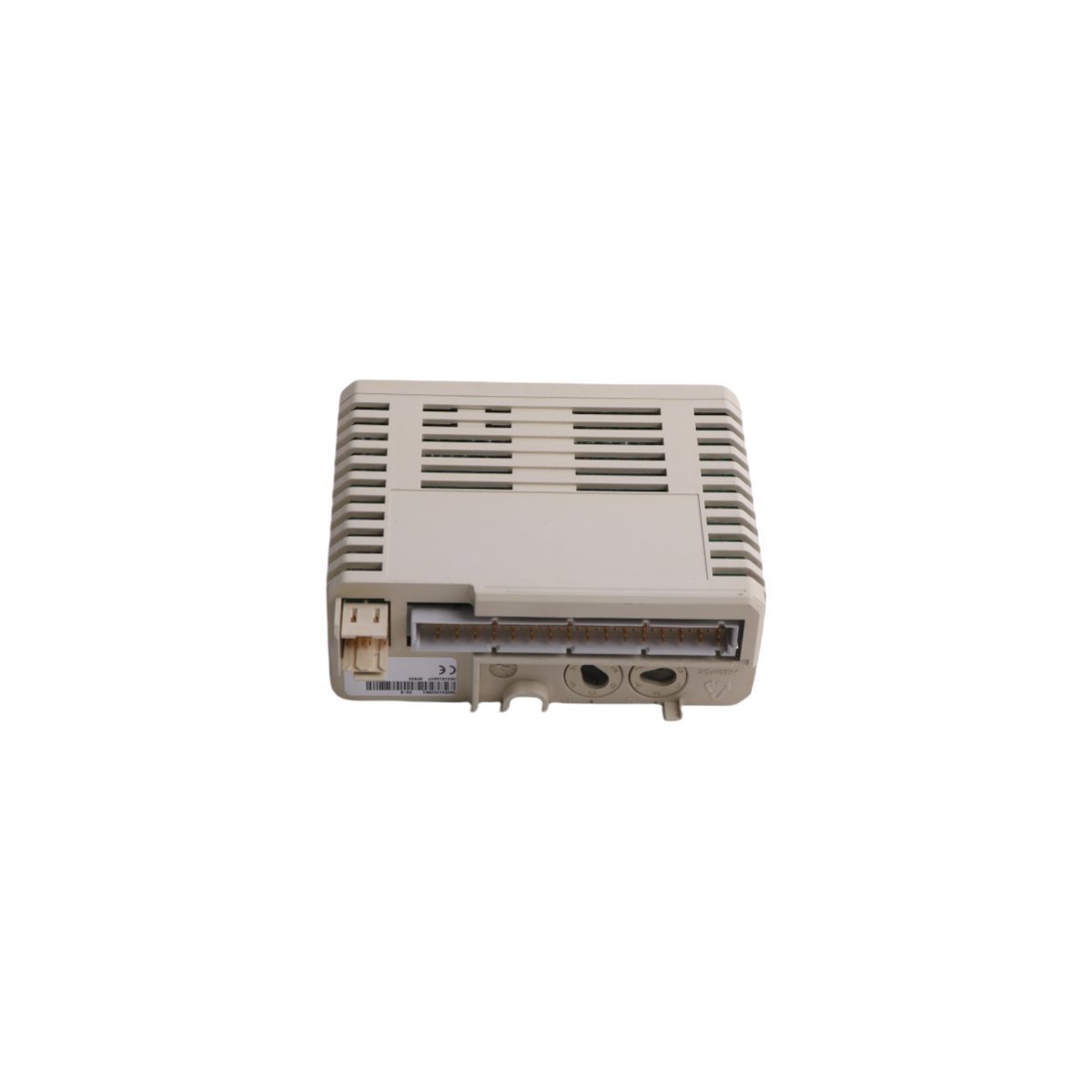

The ABB DP820, identified by part number 3BSE013228R1, functions as a high-precision, dual-channel pulse counter designed for the S800 I/O system. This module specializes in capturing high-frequency pulse trains from incremental encoders or various pulse-generating sensors. Because it supports the RS-422 signaling standard, the module ensures reliable data transmission over longer distances while maintaining high immunity against electrical noise in industrial environments.
Each module provides two independent channels that can perform frequency measurement, pulse counting, or period time calculations. This versatility allows the DP820 to integrate seamlessly into motion control applications, such as measuring motor speed or monitoring conveyor positioning. Furthermore, the module includes dedicated digital inputs for gate control and home position synchronization. Consequently, operators can achieve highly accurate positioning data without taxing the main controller’s CPU.
Safety and diagnostics remain central to the DP820’s design. The module continuously monitors the integrity of the RS-422 signals and reports any detected wire breaks or short circuits to the parent Distributed Control System (DCS). Moreover, the hardware utilizes a “hot-swap” capability, which means maintenance personnel can replace a faulty unit without powering down the entire I/O station. This feature significantly reduces potential system downtime and simplifies long-term facility management.
The Emerson DeltaV SIS™ KJ3001X1-BH1 (12P0558X152) is a legacy, high-performance isolated I/O interface card engineered for critical process safety and Distributed Control Systems (DCS). Providing robust electrical isolation to prevent ground loops and voltage spikes, this module features a field circuit rating of 60 VDC at 1 A per channel, a LocalBus power draw of 150 mA at 12 VDC, and a specialized B5 mechanical terminal block keying system to prevent incorrect field installation. Built to withstand punishing industrial conditions, its IP20-rated assembly is certified to ISA-S71.04-1985 Class G3 corrosion resistance standards, ensuring stable, interference-free safety loop communication in harsh, highly corrosive processing environments.
