ABB AO810 3BSE008522R1 S800 I/O Series

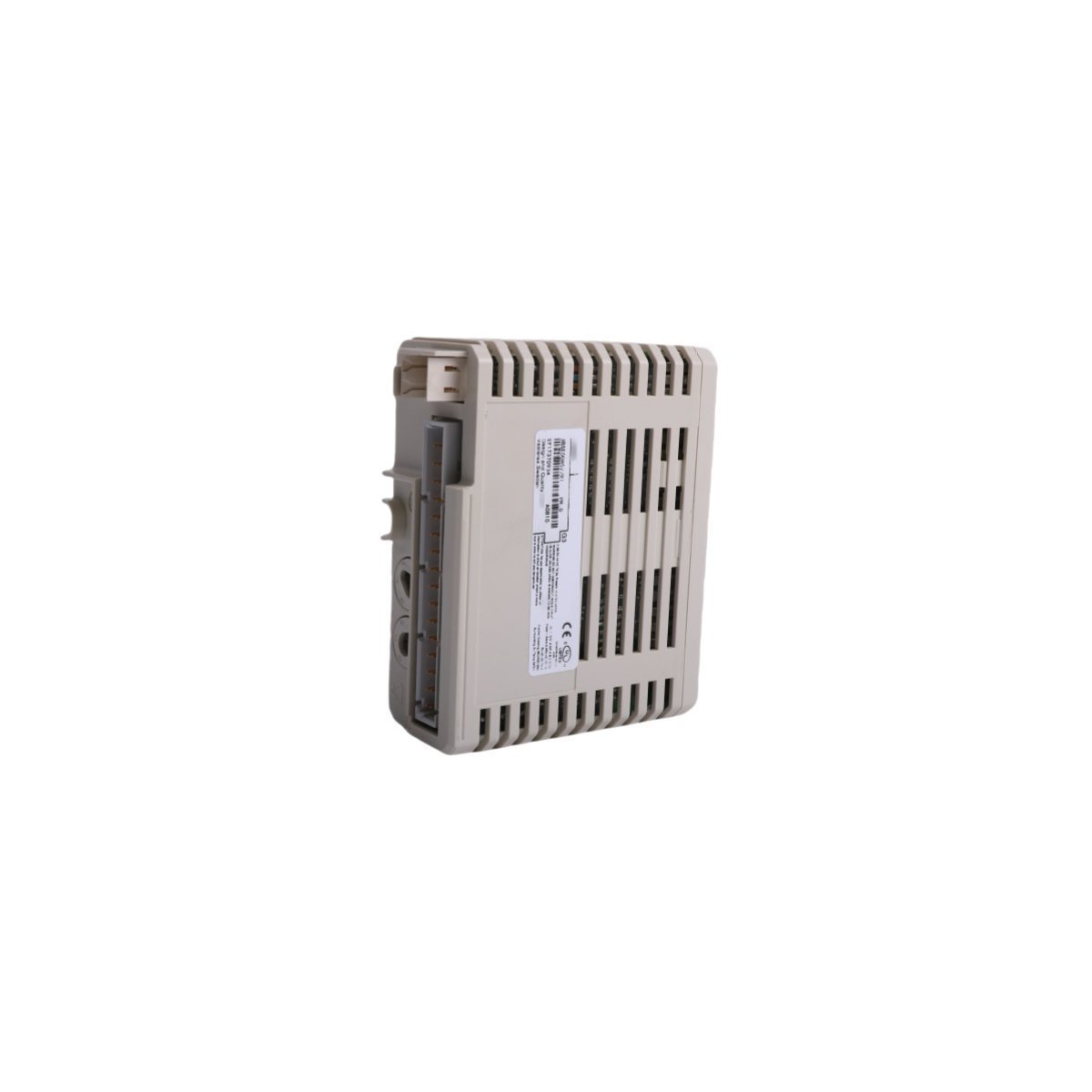

Configured for precise analog signaling in distributed control system platforms, the ABB AO810 3BSE008522R1 (AO810 Analog Output Module) provides direct physical/electrical execution. The hardware establishes 8 single-ended current output channels configured in a 1×8 architecture to regulate industrial loop mechanisms. It interfaces directly with the system backplane to receive binary command values, converting them into continuous physical current outputs with 12-bit resolution to actuate control valves, speed governors, and external analog devices.

Hardware Specifications

Industrial Control & Backplane Bus Characteristics

Operating inside the S800 I/O architecture, the module’s communication layer interfaces directly via specific backplane bus communication velocity Licences. Digital-to-analog converter matrices are driven via deterministic synchronous internal buses to minimize latency between processor calculations and terminal current delivery. The module circuitry incorporates filtering to suppress high-frequency noise from parallel switching power paths. Channel routing limits signal cross-talk during rapid step-change operations, ensuring loop-to-loop integrity is preserved during heavy I/O density scaling profiles across dense modular clusters.

Frequently Asked Questions

Q: What is the behavior of the AO810 3BSE008522R1 output channels if backplane bus communication fails?

A: Upon a total loss of deterministic network updates, the hardware executes a predefined configuration state, freezing outputs at the last valid value or defaulting to zero current to maintain loop predictability.

Q: Is hot-swapping supported for the AO810 module under live operating conditions?

A: Yes, the S800 I/O mechanical design permits hot-swap operations when paired with an energized active terminal base, provided the surrounding installation environment contains no explosive atmospheres.

Q: How does ambient temperature degradation affect the specified analog conversion accuracy?

A: The hardware retains its operational +/- 1% full-scale precision boundaries over the entire -25 to +60 deg C rating without requiring continuous active external cooling fans.

Field Installation Guidelines

• Mechanical Alignment: Mount the terminal base securely to the DIN-rail before snapping the module into position. Verify that the plastic latching mechanisms snap fully closed to maintain consistent internal backplane connections.
• Cable Shielding Layout: Shielded twisted-pair cabling must be deployed for all 8 analog current paths. Ground the shields exclusively at a single external bar within the enclosure to eliminate ground-loop current injections.
• Separation of Conductors: Maintain physical separation inside the wire trays between the low-voltage analog output wires and any high-voltage discrete I/O or power switching lines to block inductive interference.
• Thermal Integrity Management: Ensure the bottom and top ventilation openings on the module housing remain entirely clear of obstructions to facilitate convective heat rejection.
