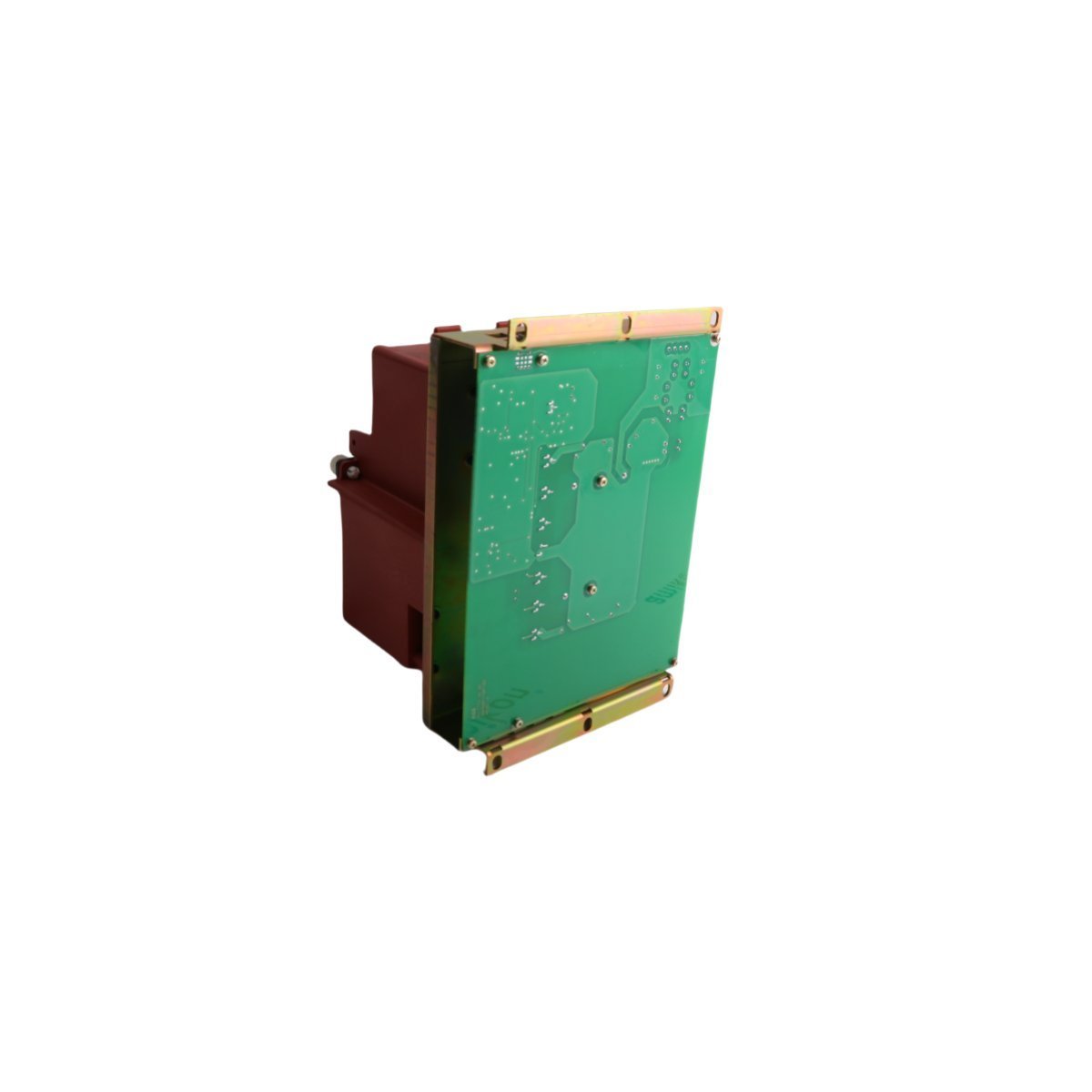

ABB 3BHB005243R0105 KUC755 AE105 Power Supply

The ABB KUC755 AE105 serves as a specialized power supply for high-power drive systems. This module provides stable electrical energy to the Integrated Gate-Commutated Thyristor (IGCT) gate units. It effectively manages the high-current demands required for switching semiconductor components. Furthermore, the 3BHB005243R0105 ensures consistent voltage levels during rapid load fluctuations. This regulation protects sensitive gate electronics from power surges and dips. Consequently, the module maintains the pulse integrity of the entire drive system. It remains a critical component for medium voltage converters and heavy industrial motor controllers.

Key Technical Specifications

• Manufacturer: ABB
• Product Line: AC 800M / Drive Control
• Model ID: KUC755 AE105
• Part Number: 3BHB005243R0105
• Component Category: Drive Gate Unit Power Supply
• Physical Weight: 3.68 kg
• Unit Dimensions: 27.6 x 18.7 x 18.8 cm
• Origin: Sweden
• Application: IGCT Power Conversion

Advanced Reliability and System Protection

The KUC755 AE105 hardware utilizes a rugged design to survive harsh industrial settings. It actively filters input power to eliminate electromagnetic noise from the supply line. Moreover, the unit provides integrated thermal protection to prevent overheating during continuous operation. The module communicates status data to the central DCS through standard automation interfaces. This feedback allows operators to monitor the health of the power stage in real time. Because it features built-in diagnostics, the system identifies power faults instantly. These internal safeguards significantly reduce the risk of catastrophic semiconductor failure.

Industrial Connectivity and Maintenance

The 3BHB005243R0105 integrates seamlessly into existing ABB AC 800M control architectures. It supports various network protocols to facilitate broad system interoperability. Additionally, the unit coordinates with Ethernet routers for advanced remote monitoring tasks. The heavy-duty chassis reflects the high quality of Swedish engineering standards. Maintenance teams can easily access the module for periodic inspection or replacement. Its specific form factor optimizes cabinet airflow for better heat dissipation. By choosing this authentic power supply, facilities ensure maximum uptime for their mission-critical drive assets.
