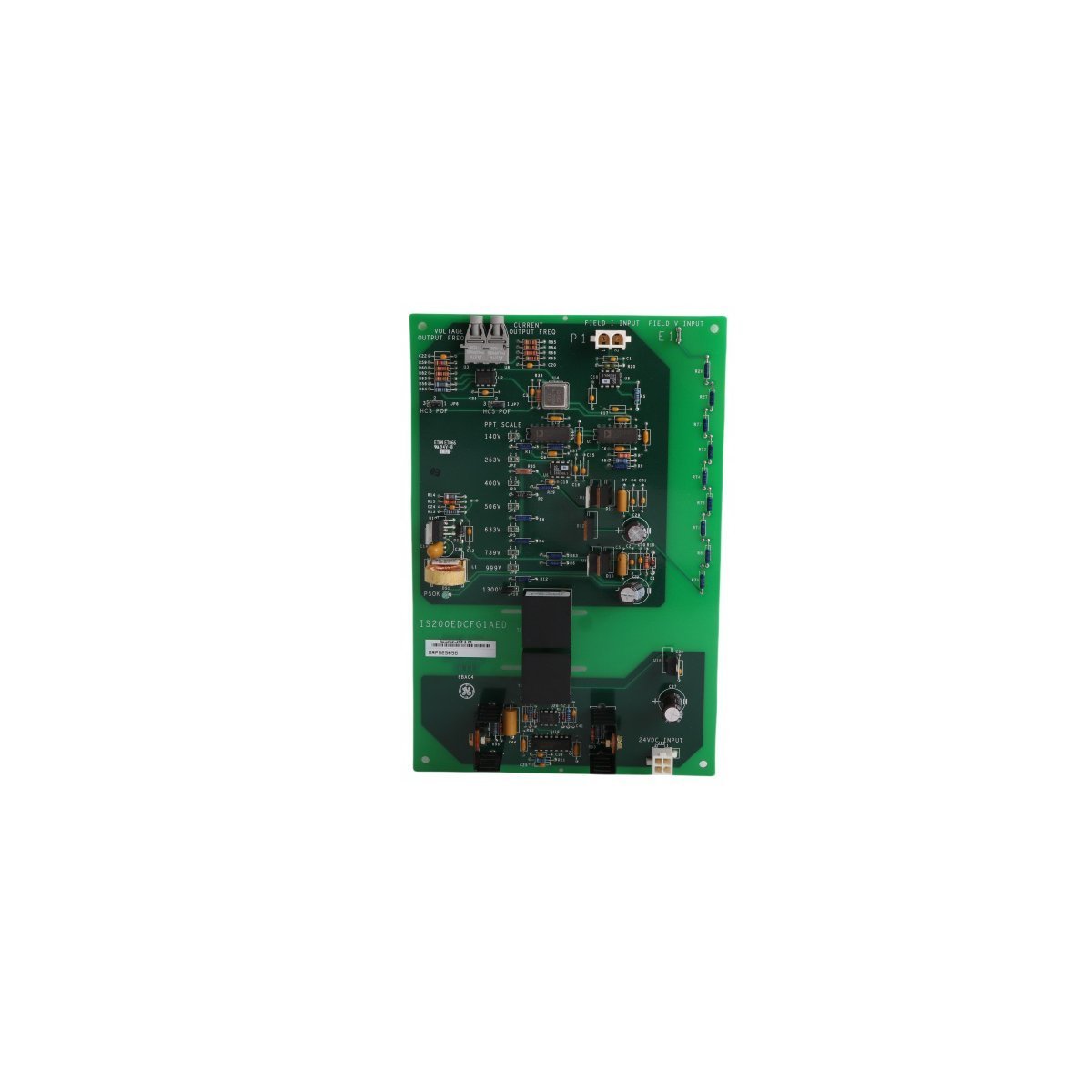

GE IS200EDCFG1AED Exciter DC Feedback Board EX2100 Control System

Technical Overview

The GE IS200EDCFG1AED serves as a high-precision Exciter Direct Current Feedback (EDCF) board within the EX2100 excitation control series. Its primary function involves the real-time acquisition of field current and voltage data directly from the Silicon Controlled Rectifier (SCR) bridge. By capturing these critical metrics, the board allows the control system to maintain stable generator excitation. Furthermore, the IS200EDCFG1AED utilizes advanced optical isolation to bridge the gap between high-voltage power components and low-voltage control electronics, effectively eliminating ground loops and protecting the main control processor from transient surges.

Engineering Features and Operational Benefits

• Advanced Galvanic Isolation: The board converts analog current and voltage signals into digital data transmitted via fiber-optic links. Consequently, this provides total electrical isolation between the SCR bridge and the EISB control board, significantly enhancing system safety and hardware longevity.
• Superior Noise Immunity: Because it relies on fiber-optic communication rather than traditional copper wiring, the EDCF board remains immune to Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI). This ensures signal purity in the electrically noisy environments typical of power plants.
• Dual-Media Fiber Support: The hardware supports multiple connectivity distances to suit various cabinet layouts. Specifically, installers can utilize Plastic Optical Fiber (POF) for short runs up to 10 meters or Hard-Clad Silica (HCS) fiber for long-range requirements reaching up to 90 meters.
• Synchronized Data Acquisition: Each monitored parameter—field voltage and field current—travels over a dedicated fiber-optic channel. This parallel transmission architecture minimizes latency and prevents signal crosstalk, resulting in higher measurement accuracy for the excitation loop.
• Ruggedized Industrial Design: GE engineered this board to operate within the high-heat and high-vibration conditions of an SCR terminal cabinet. As a result, the IS200EDCFG1AED delivers consistent performance without requiring frequent recalibration.

Primary Industry Applications

• Generator Excitation Systems: Provides the essential feedback loop for GE EX2100 series exciters in utility-scale power generation.
• SCR Bridge Monitoring: Directly measures the output of power conversion bridges to ensure accurate current regulation.
• Power Plant Automation: Integrates with Distributed Control Systems (DCS) to provide diagnostic data on generator health and field winding status.
• Industrial Synchronous Motors: Monitors excitation levels in large-scale industrial motors used in mining, oil, and gas applications.

Technical Product Specifications

• Manufacturer: General Electric (GE)
• Model Number: IS200EDCFG1AED (IS200EDCFG1A)
• System Range: EX2100 Excitation Control
• Functional Category: Direct Current Feedback (EDCF)
• Communication Link: High-speed Fiber-Optic
• Supported Fiber Types: Plastic (10m) / Hard-Clad Silica (90m)
• Measured Parameters: Field Current and SCR Bridge Voltage
• Physical Weight: 0.24 kg
• Dimensions: 22.8 x 15.1 x 3.5 cm
