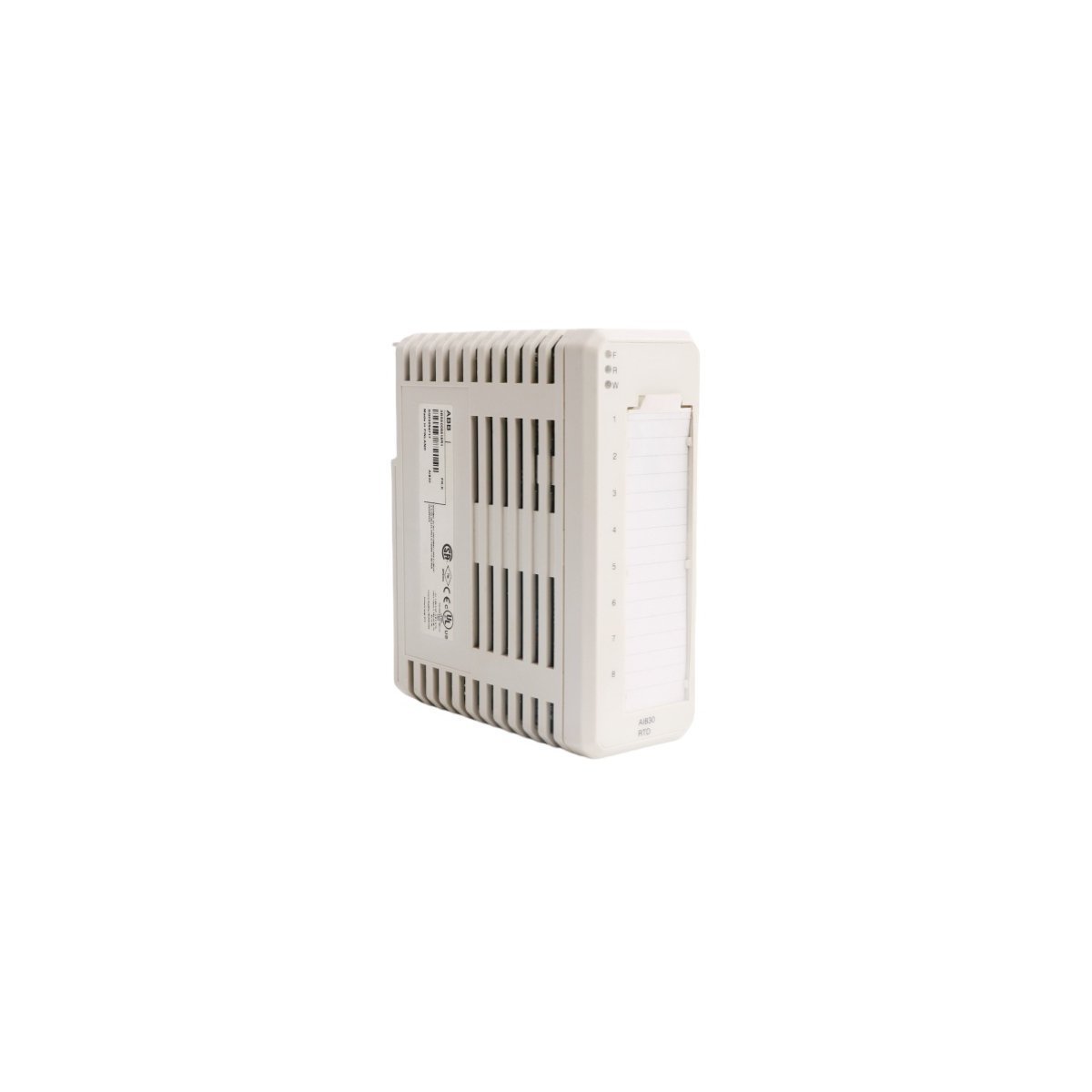

ABB AI830 3BSE008518R1 Digital Input Module

The ABB AI830, identified by part number 3BSE008518R1, serves as a high-precision RTD input component within the S800 I/O family. This module facilitates the integration of temperature sensors into Distributed Control Systems (DCS). It specifically handles signals from Resistance Temperature Detectors to monitor thermal variables in industrial processes. While some documentation labels it generally, the AI830 focuses on temperature-related analog data acquisition.

Technical Capabilities

The module incorporates eight individual channels designed for three-wire RTD measurements. It utilizes a sophisticated Analog-to-Digital Converter to translate physical resistance into digital values for the controller. The hardware supports common sensor types such as Pt100 and Ni120. Furthermore, the unit features built-in diagnostics to detect open circuits or shorted sensors immediately.

Physical and Environmental Specifications

• Module Type: Analog Input (RTD)
• Number of Channels: 8
• Resolution: 14 bits
• Power Consumption: 2 W maximum
• Operating Temperature: -25°C to +70°C
• Mounting Style: DIN rail via MTU
• Weight: 0.24 kg
• Dimensions: 45 x 105 x 120 mm

Operational Benefits

This module offers exceptional stability in fluctuating thermal environments. The three-wire connection method compensates for lead resistance to maintain measurement integrity. Its compact footprint allows for high-density I/O configurations in standard cabinets. Engineers often deploy the AI830 in oil, gas, and power generation facilities due to its robust build quality.

System Integration

The AI830 interacts with the controller via the ModuleBus interface. It requires a compatible Module Termination Unit (MTU) for field wiring and power distribution. The module supports “Hot Swap” functionality, which allows replacement without de-energizing the entire system. This feature significantly reduces downtime during routine maintenance or hardware upgrades.
