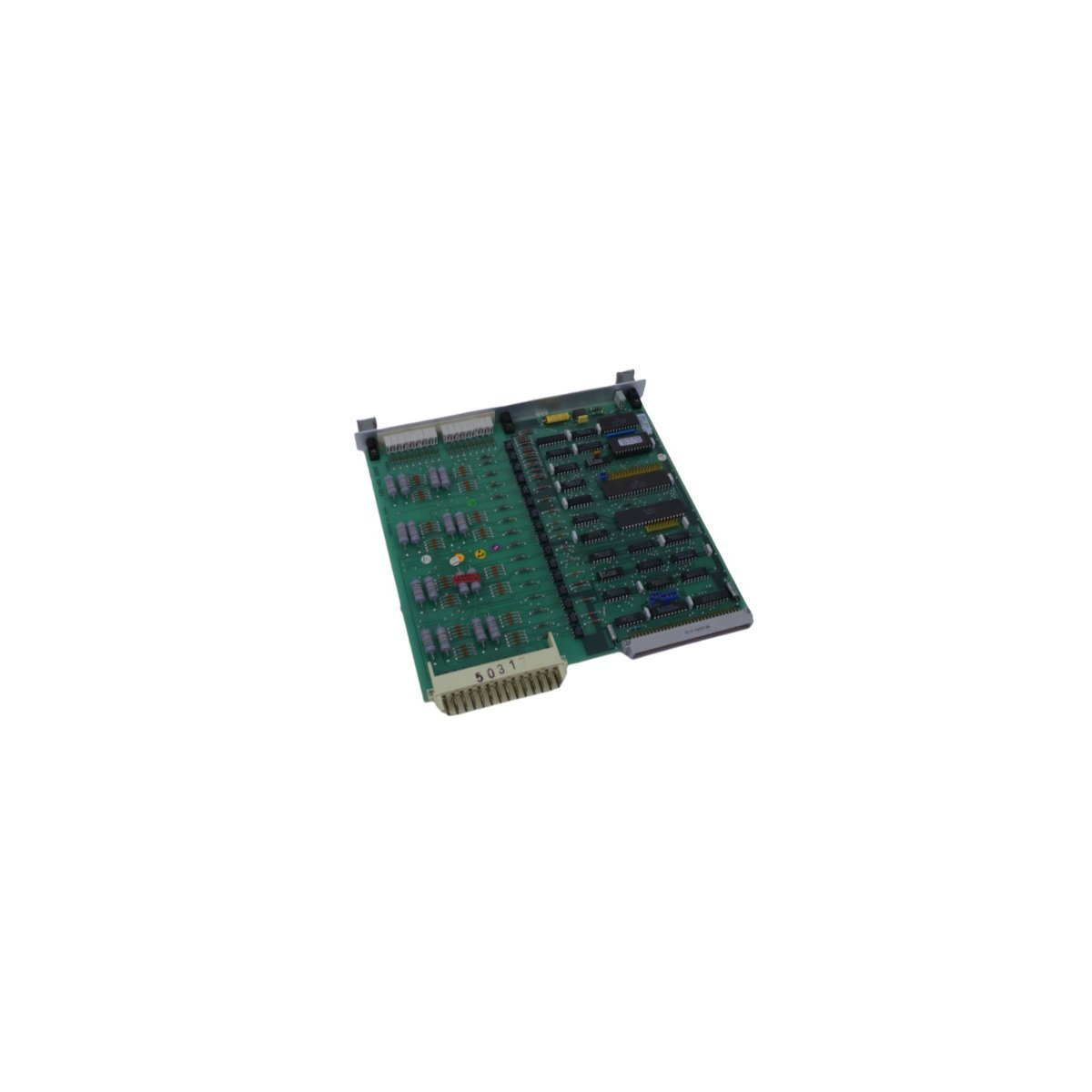

ABB DSDI131 57160001-GV Digital Input Module

The ABB DSDI131 57160001-GV serves as a high-density digital interface within the S100 I/O system. This module accurately captures status signals from field devices for the central controller. Furthermore, it features a 32-channel architecture to accommodate extensive sensor networks in a single slot. The unit operates on standard 24VDC logic to maintain broad industrial compatibility. Consequently, it provides a reliable bridge between physical process equipment and digital control logic.

Core Functionality and System Benefits

This digital input unit excels in high-precision data acquisition for modern DCS installations. It utilizes low-power internal circuitry to reduce the overall thermal load in control cabinets. Additionally, the integrated 16KB EEPROM ensures secure storage for module-specific configuration data. The DSDI131 also supports Modbus RTU protocols to facilitate easy communication with varied automation platforms. Its wide operating temperature range guarantees stable performance in extreme industrial climates.

The slim mechanical design optimizes available rack space within the Advant Controller environment. Moreover, the module features robust input filtering to prevent signal bounce from mechanical switches. This engineering choice improves the accuracy of sequence-of-events recording. Because the unit originates from Sweden, it meets rigorous European manufacturing and safety standards. These characteristics combine to offer an energy-efficient solution for large-scale infrastructure monitoring.

Industrial Applications

Maintenance teams typically specify the DSDI131 for critical process monitoring in oil and gas refineries. It tracks the status of remote switches and safety interlocks across the facility. Furthermore, the unit manages digital feedback from motor control centers and power substations. It also plays a vital role in automated material handling and chemical production lines. Its high channel density makes it ideal for dense control cabinet configurations.

Technical Specifications
