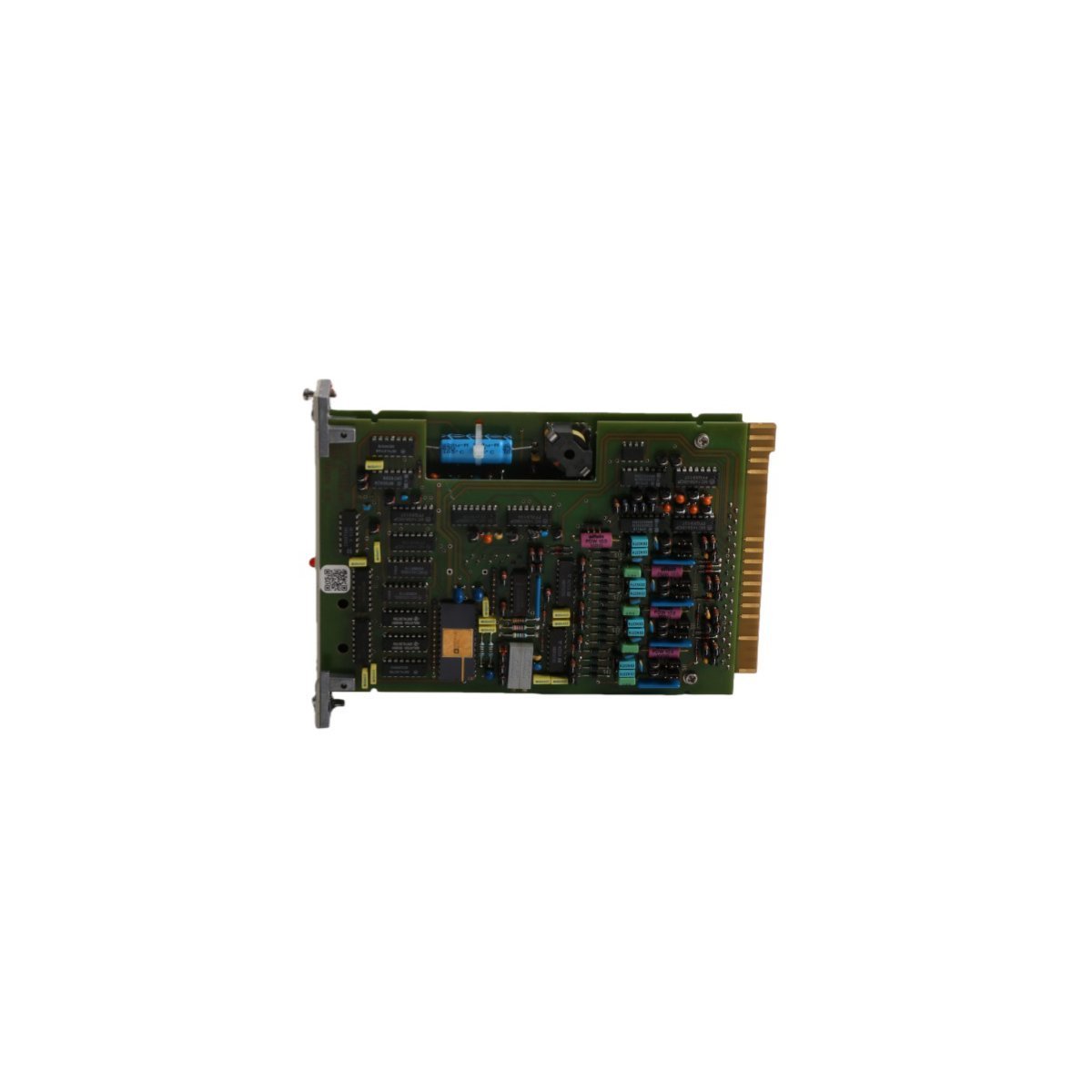

ABB HESG447388R1 70AA02B-E Analog Output Module

The ABB HESG447388R1 70AA02B-E is a high-precision analog output module for the Procontrol P13 system. It provides reliable signal conversion and actuator control for power generation and DCS applications.

Request a Quote

The ABB HESG447388R1 70AA02B-E serves as a critical interface within the Procontrol P13 Distributed Control System. This module converts digital processor data into precise analog signals. It effectively drives actuators, valves, and other control elements in power plant environments. Engineers value this component for its high reliability and long-term stability.

Technical Specifications

ParameterDetails
BrandABB
Model Number70AA02B-E
Order CodeHESG447388R1
System CompatibilityProcontrol P13
Module TypeAnalog Output / Relay Functionality
OriginSweden
Weight1.22 kg
Dimensions24 x 19 x 5.3 cm
CommunicationEthernet Router Service Support

Advanced Operational Features

This module utilizes high-resolution digital-to-analog conversion technology. Consequently, it maintains exceptional signal integrity during complex automation tasks. The onboard circuitry supports real-time linearization for various industrial loads. Integrated diagnostic functions monitor the health of the output loops constantly.

Furthermore, the hardware design prioritizes noise immunity in high-interference areas. This ensures stable performance near large electrical equipment. The module also features galvanic isolation to protect the central bus. This architecture prevents external faults from damaging the main control system.

Industrial Applications and Integration

  • Power generation plant control loops
  • Actuator and positioner signal management
  • Modernization of legacy Procontrol P13 racks
  • Medium-voltage DCS automation environments
  • Critical process control requiring high-resolution outputs

The HESG447388R1 offers seamless backward compatibility with existing P13 hardware. Therefore, plant operators can upgrade individual components without full system overhauls. This flexibility extends the operational lifespan of the entire control infrastructure. The rugged PCB construction withstands the harsh conditions of industrial plants.

Maintenance and Reliability

ABB manufactures this module in Sweden to meet strict international standards. The 70AA02B-E variant supports rapid hot-swapping to reduce potential downtime. Its robust relay and analog circuits ensure thousands of hours of maintenance-free service. Each unit undergoes rigorous testing to verify accuracy across the full output range.

Tags: ,

You may also like

Sale!
Allen Bradley 1756-OF8 ControlLogix Analog Output Module

Allen Bradley 1756-OF8 ControlLogix Analog Output Module

Configured for multi-channel analog signal generation in ControlLogix automation platforms, the Allen Bradley 1756-OF8 (1756-OF8 Analog Output Module) provides direct electrical execution of voltage and current control loops.

Hardware Specifications

ParameterSpecification
Model1756-OF8
BrandAllen Bradley
OriginUSA
Weight0.35 kg
Dimensions23.3 x 18.3 x 5.3 cm
Operating TempIndustrial Standard
Power ConsumptionSystem Backplane Dependent
Output Channels8 Points

Industrial Control and Network Characteristics

The 1756-OF8 module utilizes backplane bus communication velocity to process high-resolution analog output signals within the ControlLogix chassis. Integration into Profinet and EtherNet/IP deterministic networks enables synchronous command execution across distributed I/O racks. Firmware flash compatibility allows for version alignment with current control software, while configurable I/O density scaling supports expansion in modular automation architectures without degrading signal update rates.

Frequently Asked Questions

Q: Does the 1756-OF8 support Removal and Insertion Under Power (RIUP)?A: Yes, the module supports RIUP within a ControlLogix chassis, provided that the associated field wiring arm is secured correctly and the system is operating within defined environmental limits.Q: How is the channel isolation configured for this module?A: The 1756-OF8 utilizes internal galvanic isolation between the backplane and the I/O channels. No external isolation is required for standard loop power configurations, though ground referencing must be verified to prevent common-mode noise.

Field Installation Guidelines

  1. Ensure the ControlLogix chassis power is isolated before initiating module insertion.
  2. Align the module keying to the chassis slot to prevent incorrect installation.
  3. Slide the 1756-OF8 into the chassis until the backplane connector is fully engaged.
  4. Secure the module using the top and bottom latching mechanisms.
  5. Terminate field wiring to the Removable Terminal Block (RTB) according to the specific voltage or current loop wiring diagram (0-10 V or 4-20 mA).
  6. Verify shield termination at the cabinet entry point to suppress electromagnetic interference before energizing the chassis.
Sale!
ABB HESG446933R2 70AB02B-E Analog Output Module

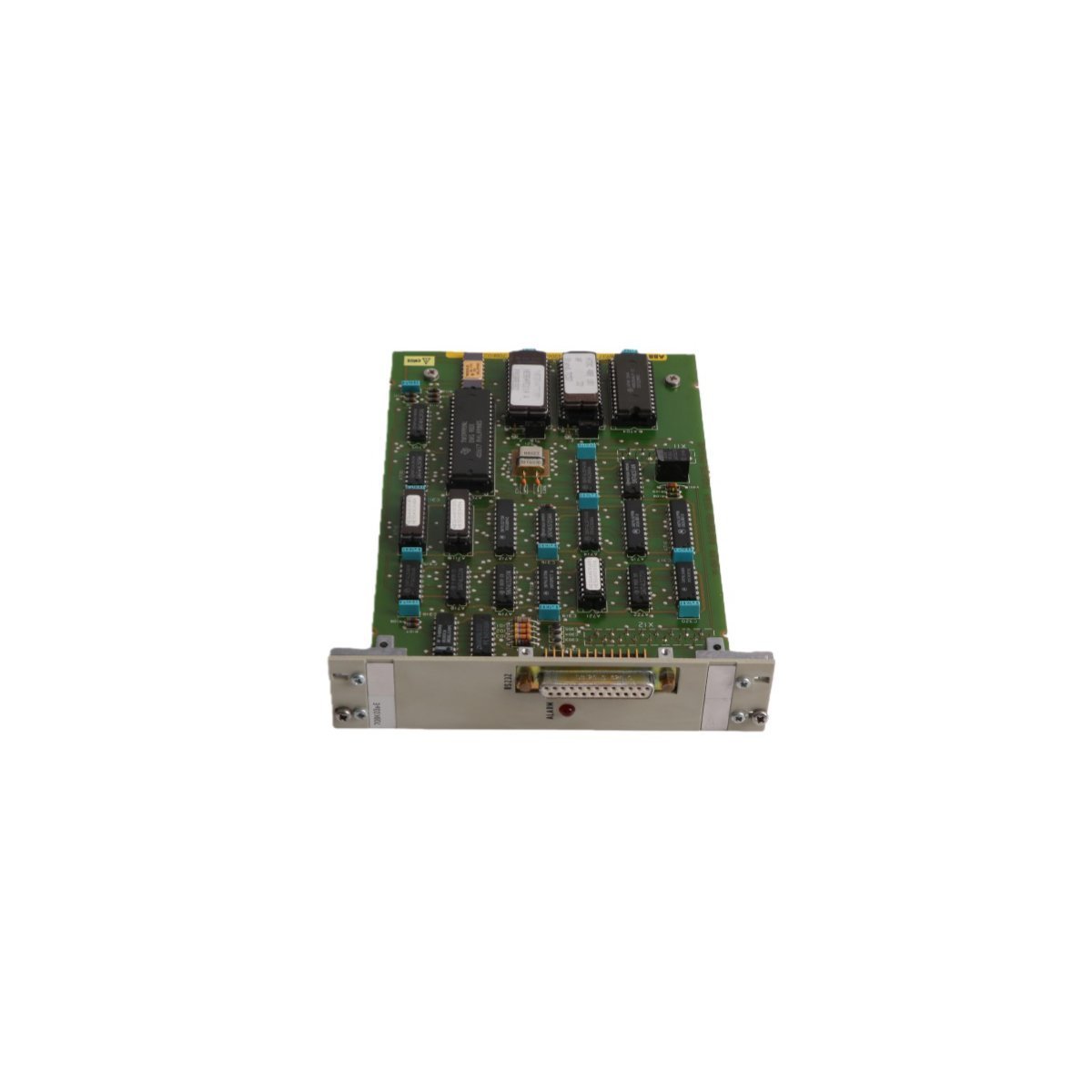

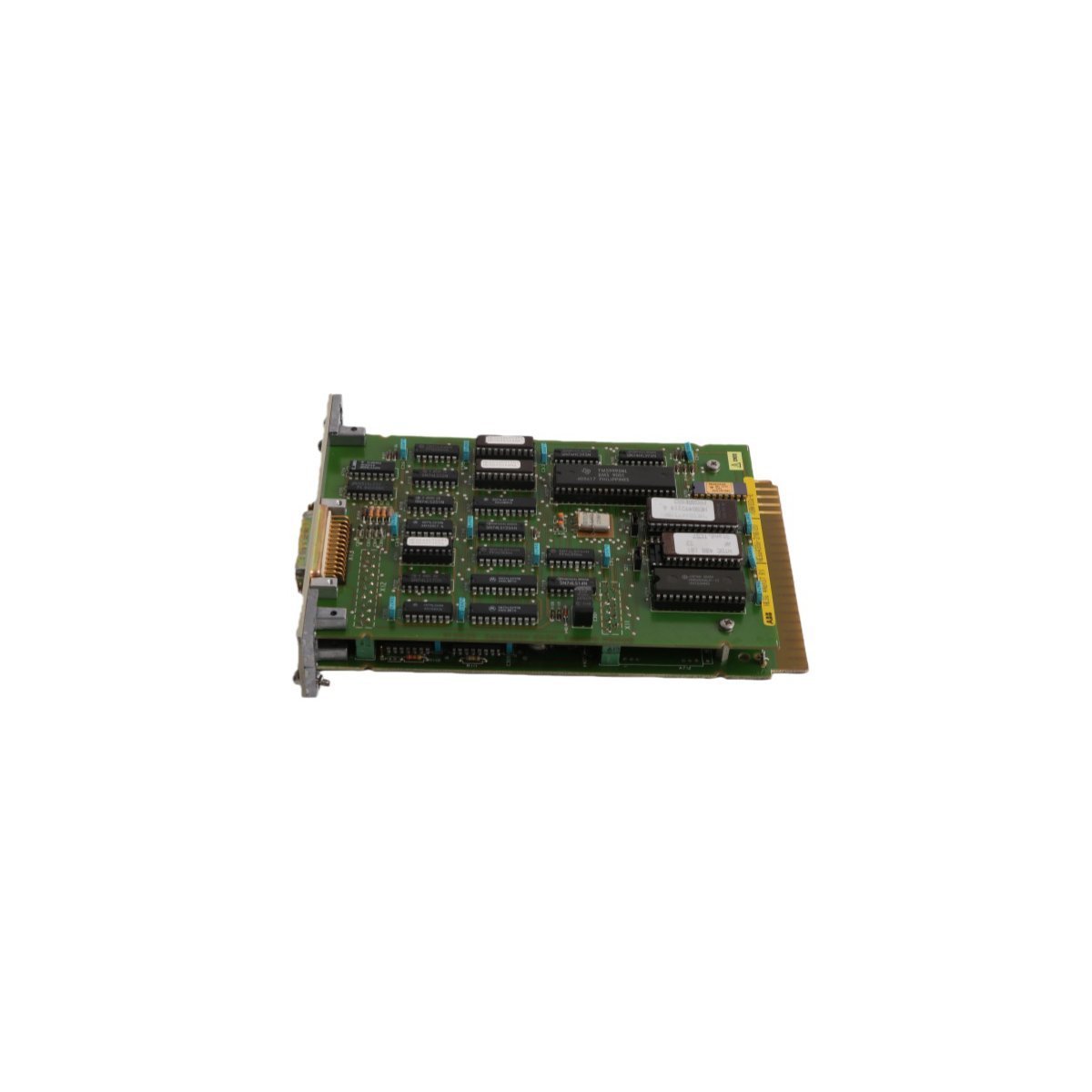

ABB HESG446933R2 70AB02B-E Analog Output Module
