SKU: IMASM01

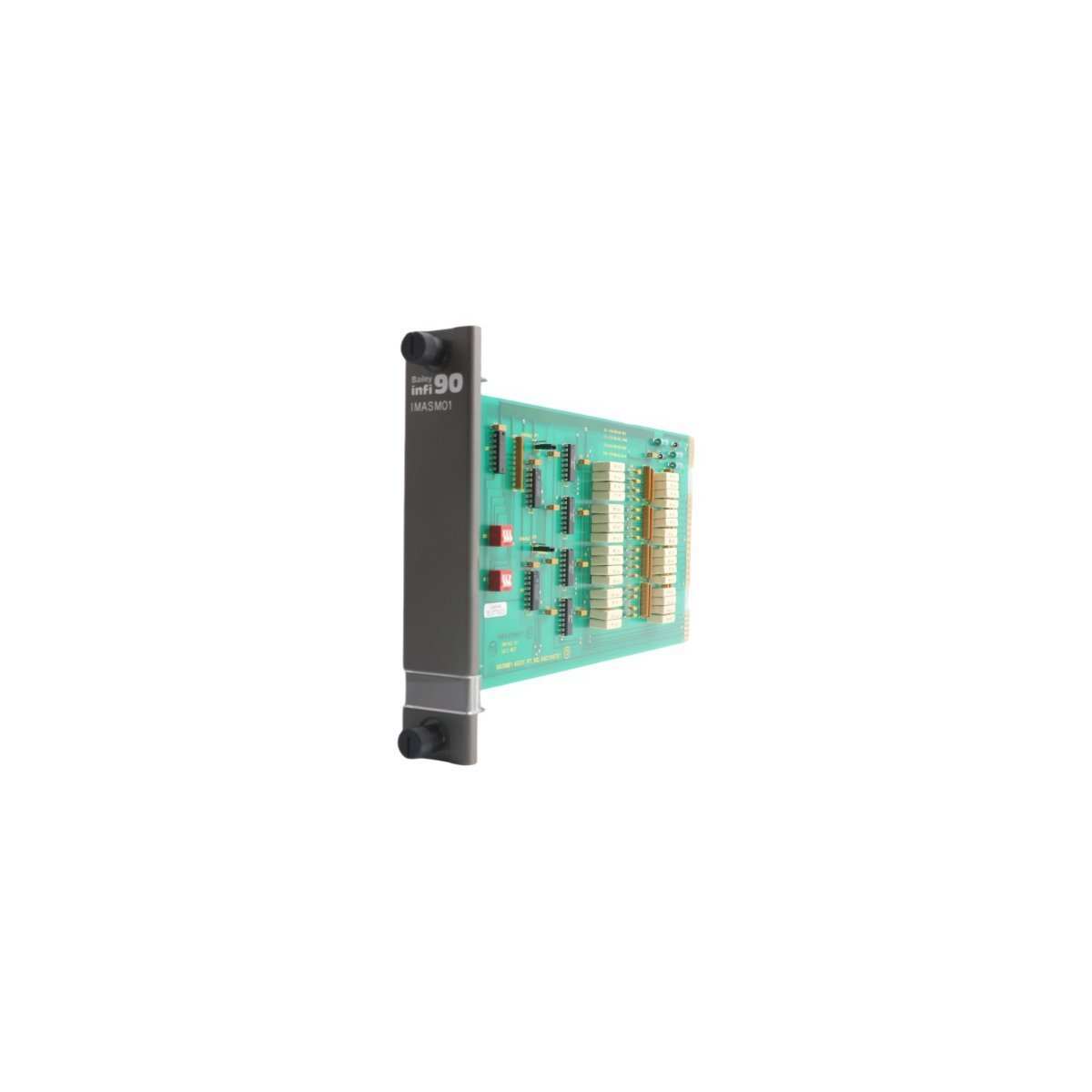

ABB IMASM01 Analog Input Board

The ABB IMASM01 is an Analog Input Slave Board for the Harmony Rack (HR) and Infi 90 series. This high-performance module processes multiple analog signals with precision, ensuring reliable data acquisition and seamless integration within ABB Distributed Control Systems.

The ABB IMASM01 is a specialized Analog Input Slave Module designed for the Symphony Harmony (HR) Rack series. This component provides an essential bridge between field sensing devices and the Harmony system controller. It converts various analog signals into digital data for precise process monitoring. Furthermore, the module enhances the capability of the Infi 90 and Symphony systems through high-density signal acquisition.

Technical Specifications

Feature	Specification
Brand	ABB
Model Number	IMASM01
Product Series	Harmony Rack (HR) / Infi 90
Module Type	Analog Input Slave Board
Dimensions	3.5 x 31 x 17.5 cm
Net Weight	0.24 kg
Origin	Sweden
Mounting	Standard Module Mounting Unit (MMU)

Functional Engineering and Signal Handling

The IMASM01 operates as a slave module to a primary controller within the DCS rack. It processes multiple analog inputs from various field transmitters. This module supports a wide variety of signal types, including 4-20mA, 1-5V, and 0-10V ranges. Consequently, it delivers versatile integration for diverse industrial instrumentation requirements.

The circuitry includes sophisticated filtering to eliminate electrical noise from the process environment. This ensures high signal accuracy and data integrity for critical control loops. Additionally, the board architecture promotes efficient heat dissipation to maintain stability during continuous operation. The modular design facilitates quick installation into standard rack slots without extensive wiring changes.

Industrial Applications and Deployment

Process industries frequently deploy the IMASM01 in complex automation environments. It is a standard choice for power generation facilities monitoring turbine parameters. Chemical processing plants utilize this board to track temperature and pressure fluctuations accurately. Because of its rugged construction, the module performs reliably in high-temperature industrial settings. It effectively supports legacy system expansions and modern hardware migrations.

System Diagnostics and Reliability

Maintenance teams benefit from the integrated diagnostic functions of the IMASM01. The module reports hardware status and signal health directly to the operator interface. As a result, technicians can identify and resolve field circuit faults rapidly. This transparency reduces troubleshooting time and improves overall plant uptime. Using genuine ABB replacement parts ensures long-term compatibility with existing Harmony Rack infrastructure.
