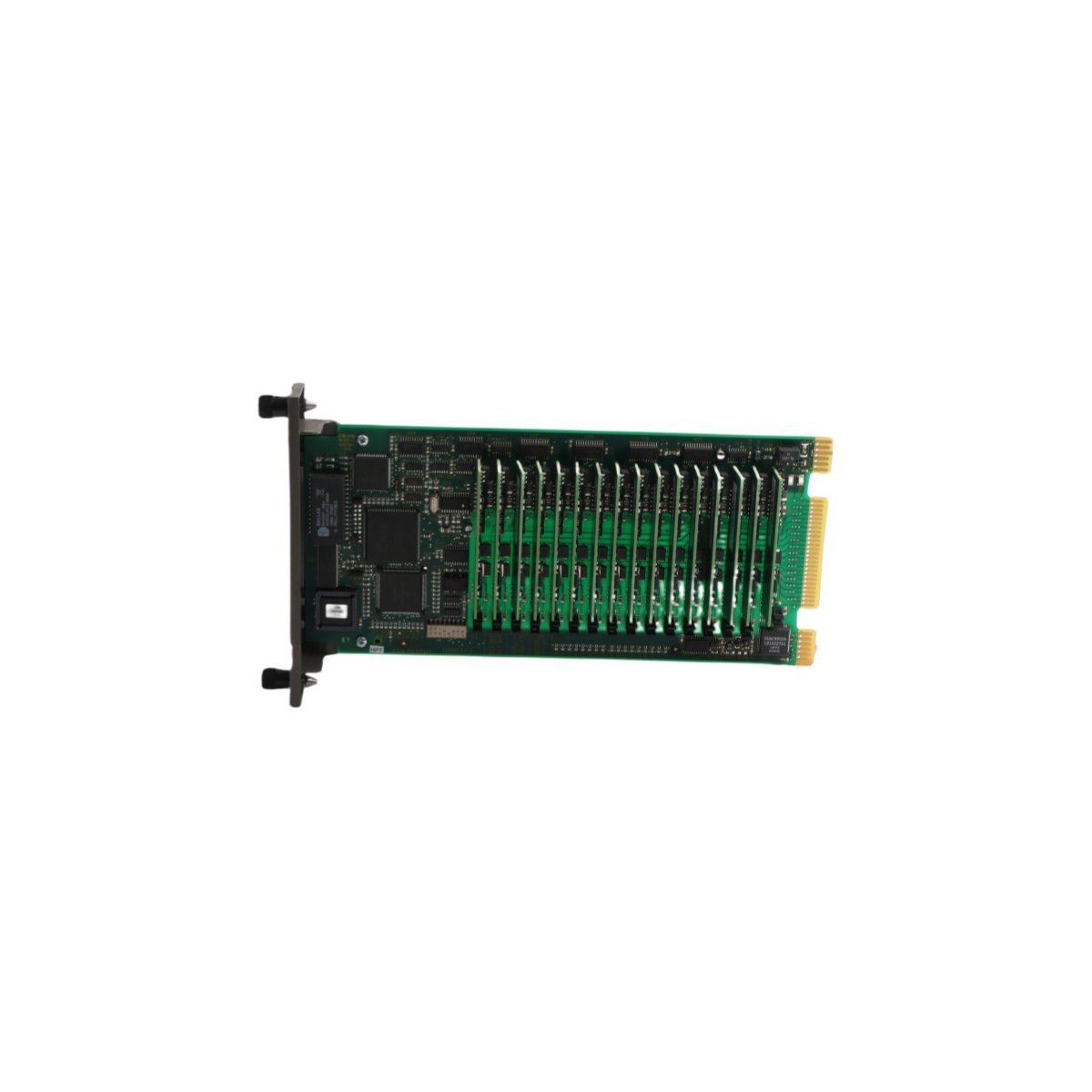

ABB IMASI23 Analog Input Module

The ABB IMASI23 is a universal analog input slave module for Harmony Rack and Infi 90 systems. It supports thermocouples, RTDs, and voltage signals, offering high-speed data acquisition and Modbus connectivity for precise industrial process monitoring.

The ABB IMASI23 functions as a high-density analog input module within the Symphony Harmony Rack (HR) architecture. This unit serves as a control I/O slave, capturing critical process variables with exceptional accuracy. It primarily converts low-level signals from field sensors into digital data for the system controller. Furthermore, the module manages a diverse array of inputs including thermocouples and RTDs. It also processes voltage and current signals from various industrial transmitters. Consequently, this versatility simplifies the hardware footprint in complex distributed control systems.

Technical Specifications and Dimensions

Brand: ABB / Bailey Infi 90
Model: IMASI23
Series: Harmony Rack (HR) / Symphony
Module Type: Control I/O Slave
Input Capability: Multi-channel Analog (Universal)
Mass: 0.28 kg
Dimensions: 3.5 x 31.0 x 17.6 cm
Origin: Sweden
System Environment: DCS / Infi 90

Advanced Connectivity and Integration

This module utilizes a standardized backplane interface for seamless communication with Harmony controllers. It actively supports Modbus protocols for data exchange with external automation platforms. Moreover, the hardware design ensures minimal signal latency during high-speed data acquisition. The IMASI23 also features onboard diagnostics to monitor channel health in real time. This capability allows technicians to identify sensor failures before they impact plant safety. Additionally, the user-friendly configuration software streamlines the setup of custom scaling and linearisation.
