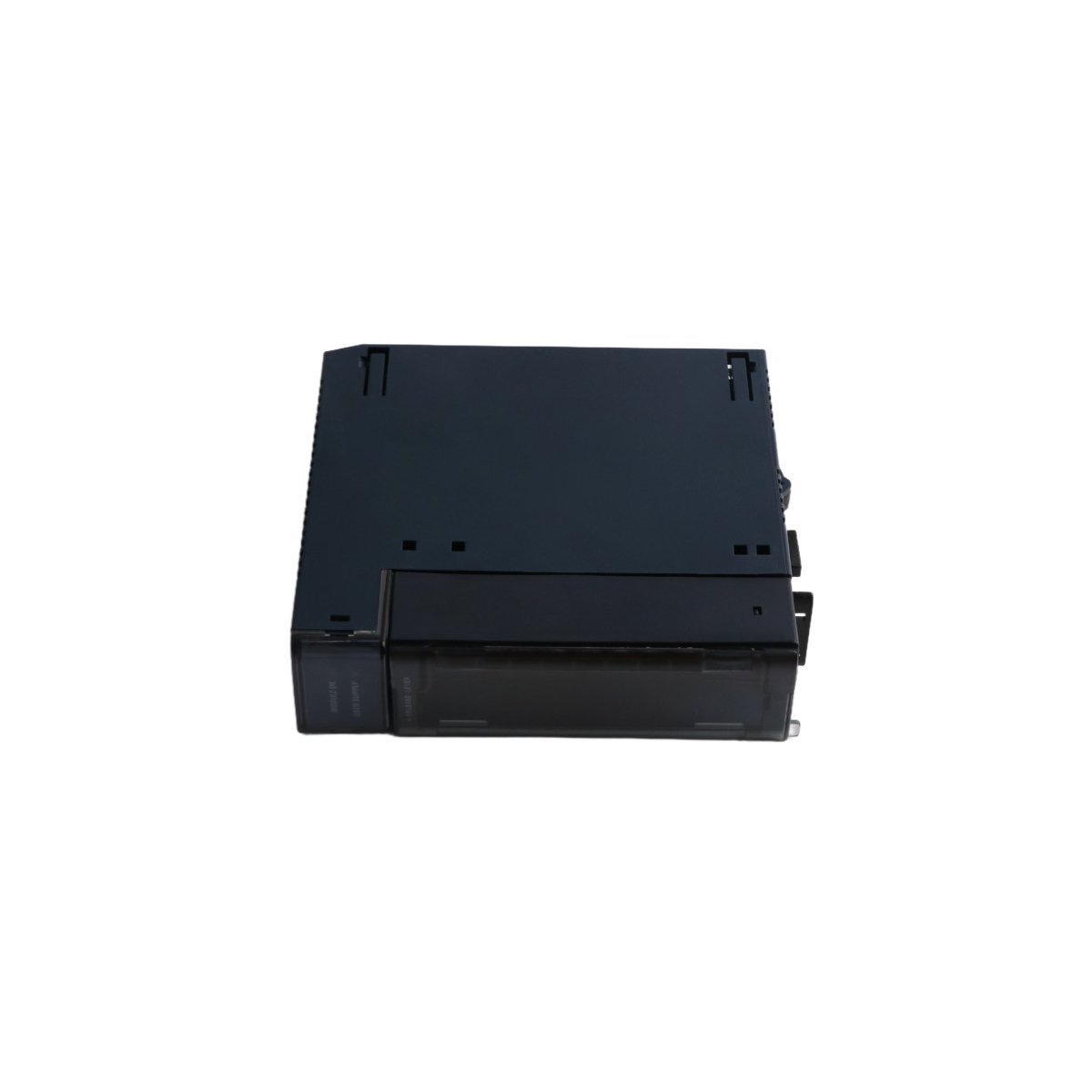

General Electric IC694ALG223 Input Module

The GE IC694ALG223 is a 16-channel analog input module for PACSystems RX3i controllers. It features 12-bit resolution and supports 0-20 mA and 4-20 mA current loops. This high-density module includes advanced diagnostics and open-wire fault detection.

Request a Quote

The GE PACSystems IC694ALG223 serves as a high-density solution for analog signal acquisition. This module integrates seamlessly into RX3i and Series 90-30 PLC environments. It provides sixteen single-ended channels for monitoring industrial current loops.

Operational Overview

This unit converts external analog signals into digital data for the controller. It supports multiple current ranges including 0-20 mA and 4-20 mA. Additionally, an enhanced 4-20 mA mode offers superior error detection. The module uses a 12-bit converter to ensure high-fidelity data processing.

Technical Capabilities

  • High Resolution: Delivers precise measurements with increments as small as 4 μA.
  • Rapid Updates: Achieves a fast 13 ms conversion rate for all active channels.
  • Signal Integrity: Features common-mode rejection exceeding 70 dB to filter electrical noise.
  • Fault Monitoring: Detects open-wire conditions specifically in the enhanced 4-20 mA range.
  • Power Management: Monitors external loop power to ensure constant system availability.
  • Calibration: Every unit undergoes factory calibration for immediate field deployment.

Specifications and Data

FeatureTechnical Detail
ManufacturerGeneral Electric (GE)
Model NumberIC694ALG223
Input Channels16 Single-Ended
Input Current Ranges0-20 mA, 4-20 mA, 4-20 mA Enhanced
Backplane Current120 mA at 5V DC
External Power65 mA at 24V DC
Dimensions3.5 cm x 13 cm x 13.5 cm
Weight0.36 kg
