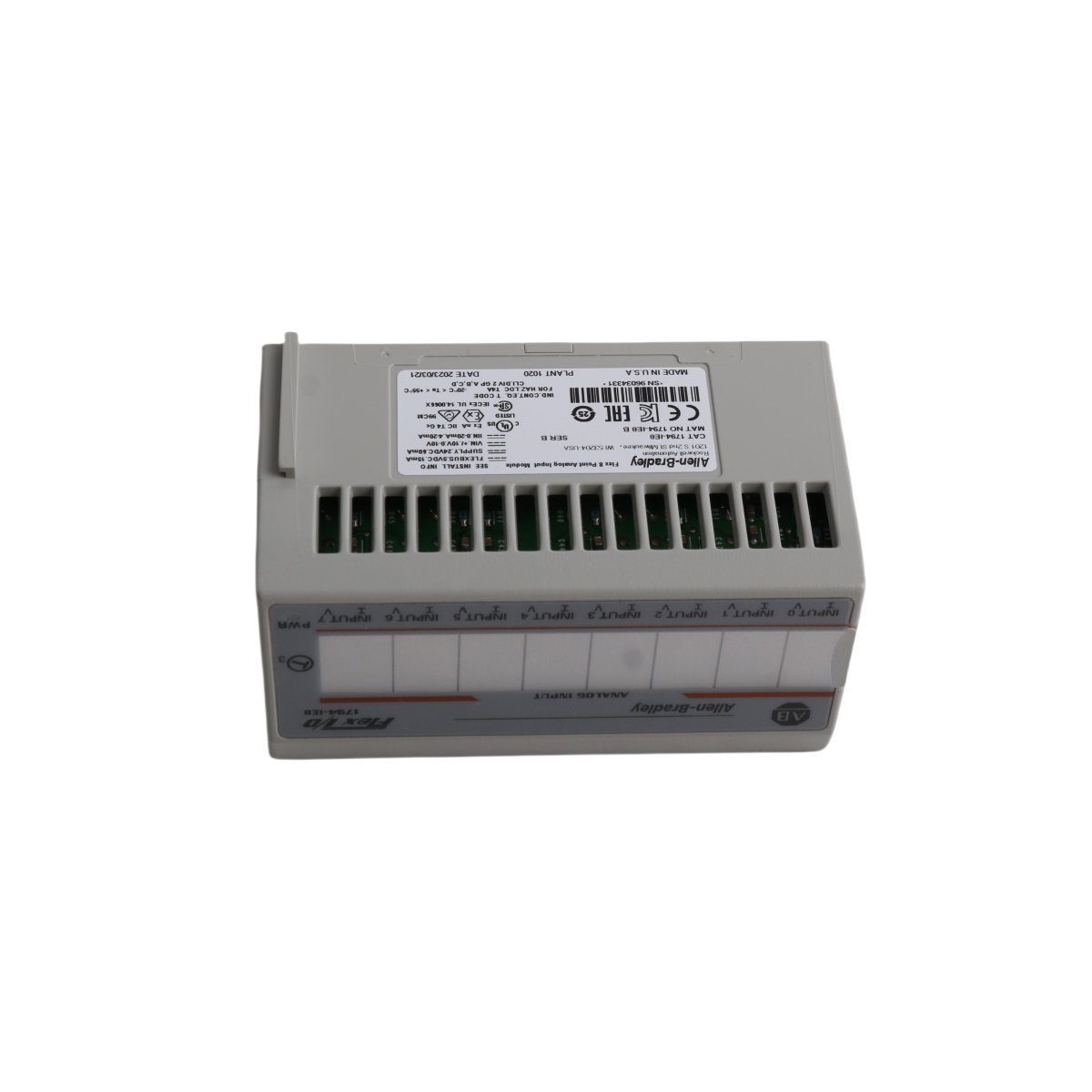

Allen-Bradley 1794-IE8 Flex 8 Point Analog Input Module

The Allen-Bradley 1794-IE8 is a high-precision 8-point analog input module for the FLEX I/O system. It supports 4-20mA and 0-10V signals with 12-bit resolution and RIUP capability.

Request a Quote

Versatile Process Signal Acquisition

The Allen-Bradley 1794-IE8 drives precise data acquisition within the FLEX I/O platform. This 8-channel module converts analog signals from field transmitters into digital data that your PLC can process. It supports a broad range of signal types, including 4-20mA current loops and ±10VDC voltage inputs. By providing 12-bit resolution, the 1794-IE8 ensures your control system receives the granular detail necessary for accurate process monitoring and PID loop control.

Distributed I/O Efficiency and Integration

Rockwell Automation designed the 1794-IE8 to streamline industrial wiring and reduce installation costs. The module snaps directly onto terminal bases like the 1794-TB2 or 1794-TB3, allowing you to terminate field sensors directly at the I/O point. This distributed architecture eliminates the need for long wire runs back to a central control cabinet. The module integrates seamlessly with various communication adapters, enabling high-speed data exchange over EtherNet/IP, ControlNet, or DeviceNet networks.

Industrial Reliability and Maintenance

The 1794-IE8 offers robust performance in harsh environments, maintaining its 0.20% accuracy even under fluctuating temperatures. A key advantage for maintenance teams is the “Removal and Insertion Under Power” (RIUP) capability; you can replace a faulty module without shutting down the rest of the FLEX I/O rack or disrupting system communications. This feature dramatically reduces downtime in 24/7 manufacturing and process operations.

Technical Specifications (List Format)

  • Manufacturer: Allen-Bradley / Rockwell Automation
  • Model Number: 1794-IE8
  • Product Family: FLEX I/O
  • Input Points: 8 Single-ended
  • Input Range (Current): 0 to 20 mA; 4 to 20 mA
  • Input Range (Voltage): ±10V; 0 to 10V
  • Resolution: 12-bit unipolar; 11-bit plus sign bipolar
  • Accuracy: 0.20% Full Scale at 25°C
  • Conversion Rate: 256μs for all channels
  • Terminal Bases: Compatible with 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TBN
  • Operating Temperature: -20°C to 55°C (-4°F to 131°F)
  • Weight: 0.12 kg
Tags: ,
