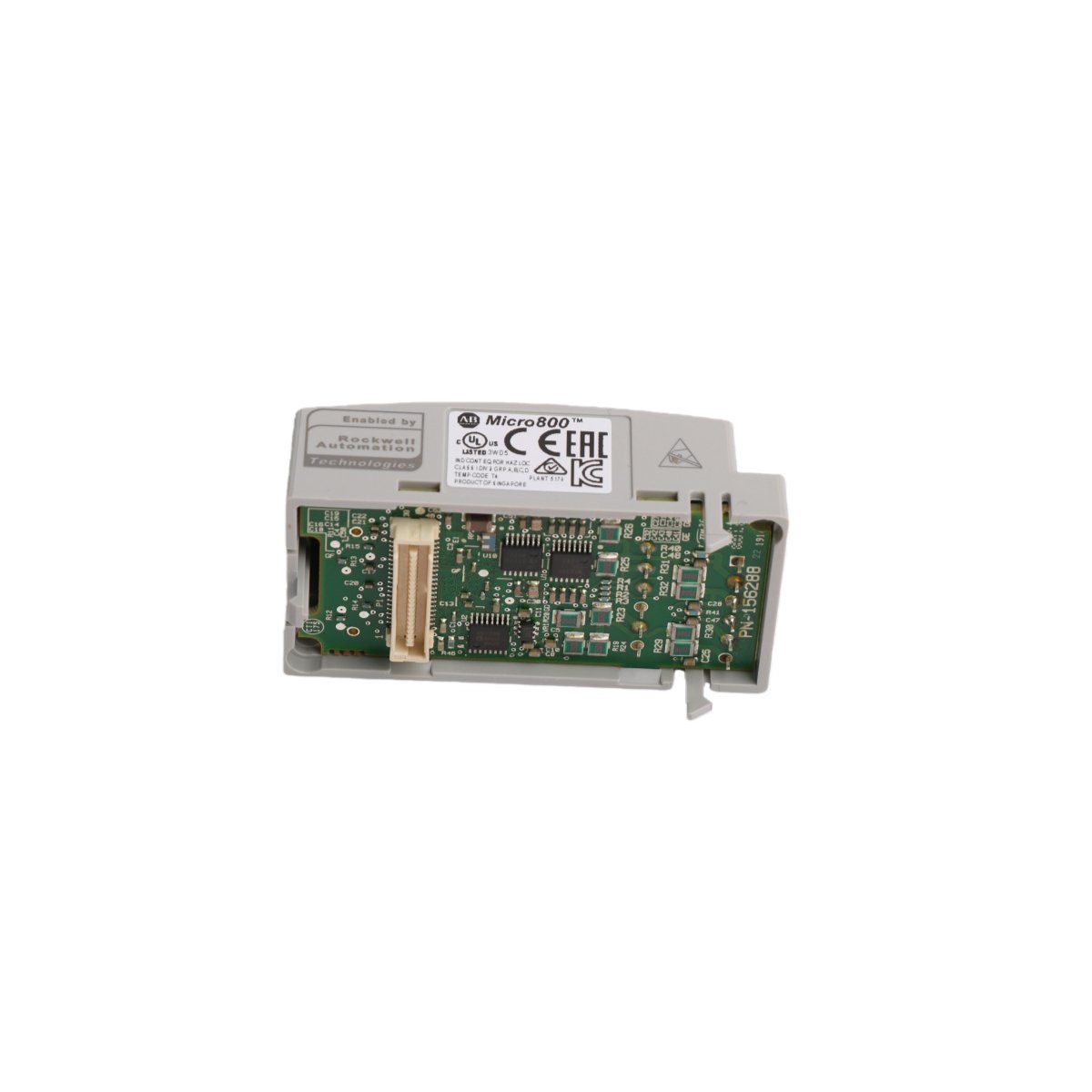

Allen-Bradley 2080-IF4 Micro800 Series

The Allen-Bradley 2080-IF4, also cataloged as the 2080-IF4 Analog Plug-in Module, operates as a dedicated hardware component for converting continuous field voltage and current signals within Micro800 programmable controller architectures. The module directly installs into the host chassis backplane interface to provide raw physical data digitizing.

Hardware Specifications

Deterministic Micro800 Expansion & I/O Density Scaling

The component interfaces via the specialized controller plug-in slot, maintaining a zero-footprint form factor that prevents overall control cabinet expansion. Data exchange across the internal backplane bus communication link occurs via synchronized system task cycles, executing real-time data updates directly to the CPU process image table.

This high-density configuration enables single-ended field processing for up to four distinct transmitters without modifying the primary DIN-rail footprint. Software parameterization executed via Connected Components Workbench controls internal filtering and raw signal representation limits across the 0 to 65535 count scale.

Frequently Asked Questions

Q: Does the 2080-IF4 module require an external 24 VDC power supply connection for signal conversion?

A: No. The hardware draws all operating current directly from the host Micro800 controller backplane bus. Field transmitters in current loop configurations may require independent loop power depending on wiring topologies.

Q: Can channels be mixed with voltage and current inputs simultaneously?

A: Yes. The hardware configuration allows individual software channel scaling and signal type definition, allowing concurrent wiring of 0-10 VDC and 0-20 mA circuits across separate terminals.

Field Installation Guidelines

• Insertion Protocols: Remove all operational power from the host controller chassis prior to inserting or extracting the plug-in module to prevent internal backplane bus interface faults.
• Terminal Wiring Restrictions: Utilize solid or stranded wire with a cross-section range matching the integrated clamp terminal blocks. Secure all connections to avoid intermittent open-circuit faults on low-level 4-20 mA or 0-10 VDC lines.
• Shielding Terminations: Connect analog cable shields to dedicated chassis ground points at the controller side only. Ensure signal lines are segregated from high-voltage AC lines to mitigate electromagnetic noise coupling.
