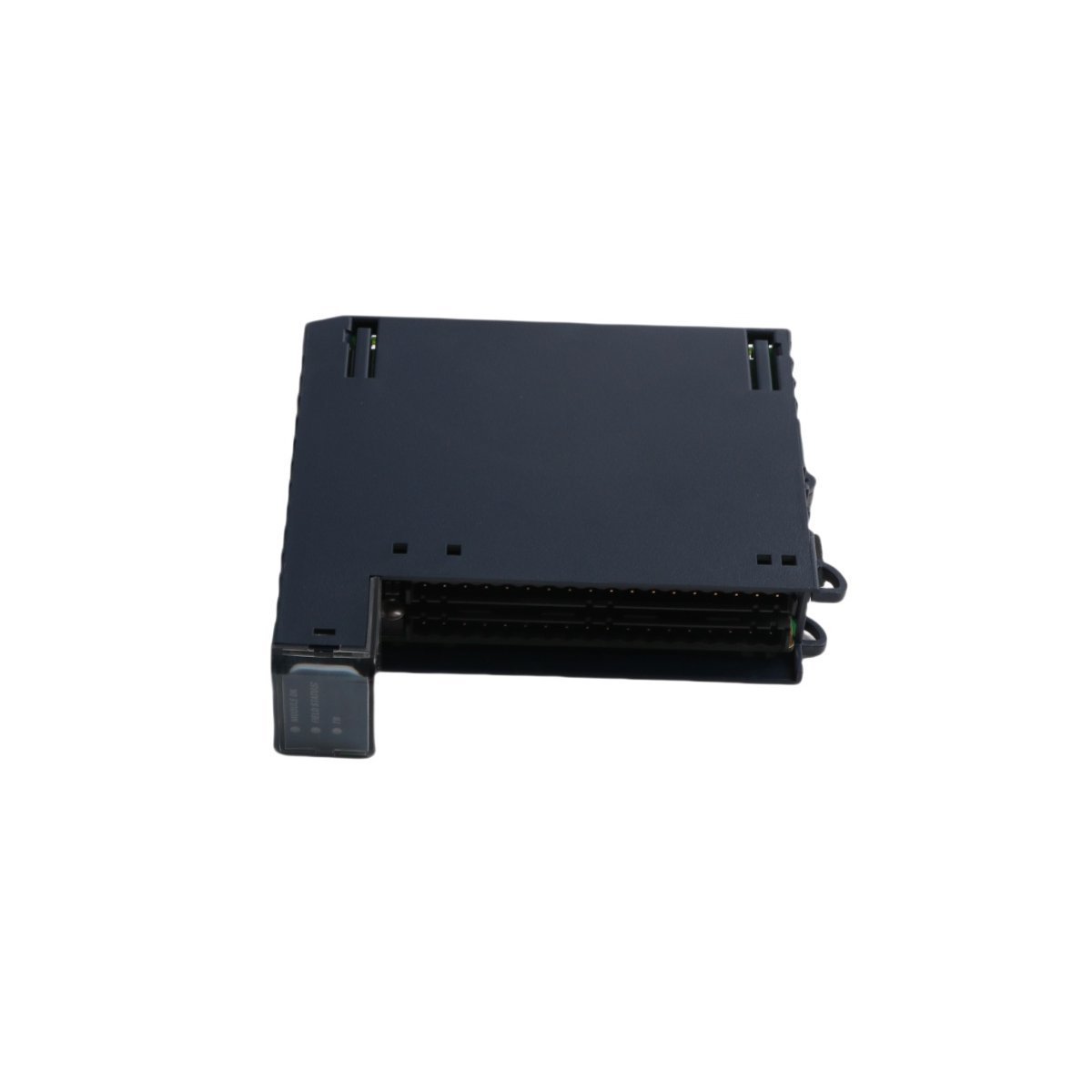

General Electric IC695ALG626 Analog Input Hart Module

The GE IC695ALG626 provides high-density analog data acquisition for the PACSystems RX3i platform. This module specifically supports Highway Addressable Remote Transducer (HART) version 5.0 on all channels. It enables the controller to communicate with smart field instruments. Users can extract secondary process variables and diagnostic data through the analog signal. This functionality is vital for modern Distributed Control Systems (DCS). It serves critical roles in chemical processing, water treatment, and power generation.

Input Configuration and Versatility

The hardware offers flexible wiring options to meet diverse field requirements. Technicians can configure the module for 16 single-ended or 8 differential input channels. It supports a wide array of signal types including various voltage and current ranges. Furthermore, the jumper-less design simplifies the setup process. The module handles standard 4-20mA loops alongside specialized ±10V or 0-5V signals.

Diagnostic and Safety Features

Advanced onboard intelligence enhances the reliability of the IC695ALG626. The module includes automatic calibration and comprehensive error detection. It identifies open circuits and out-of-range signals immediately. Integrated flash memory allows for convenient firmware upgrades in the field. Additionally, configurable alarms monitor high, low, and rate-of-change thresholds. These safety features prevent equipment damage and reduce unplanned downtime.

Core Technical Specifications
