SKU: 8913-PS-AC

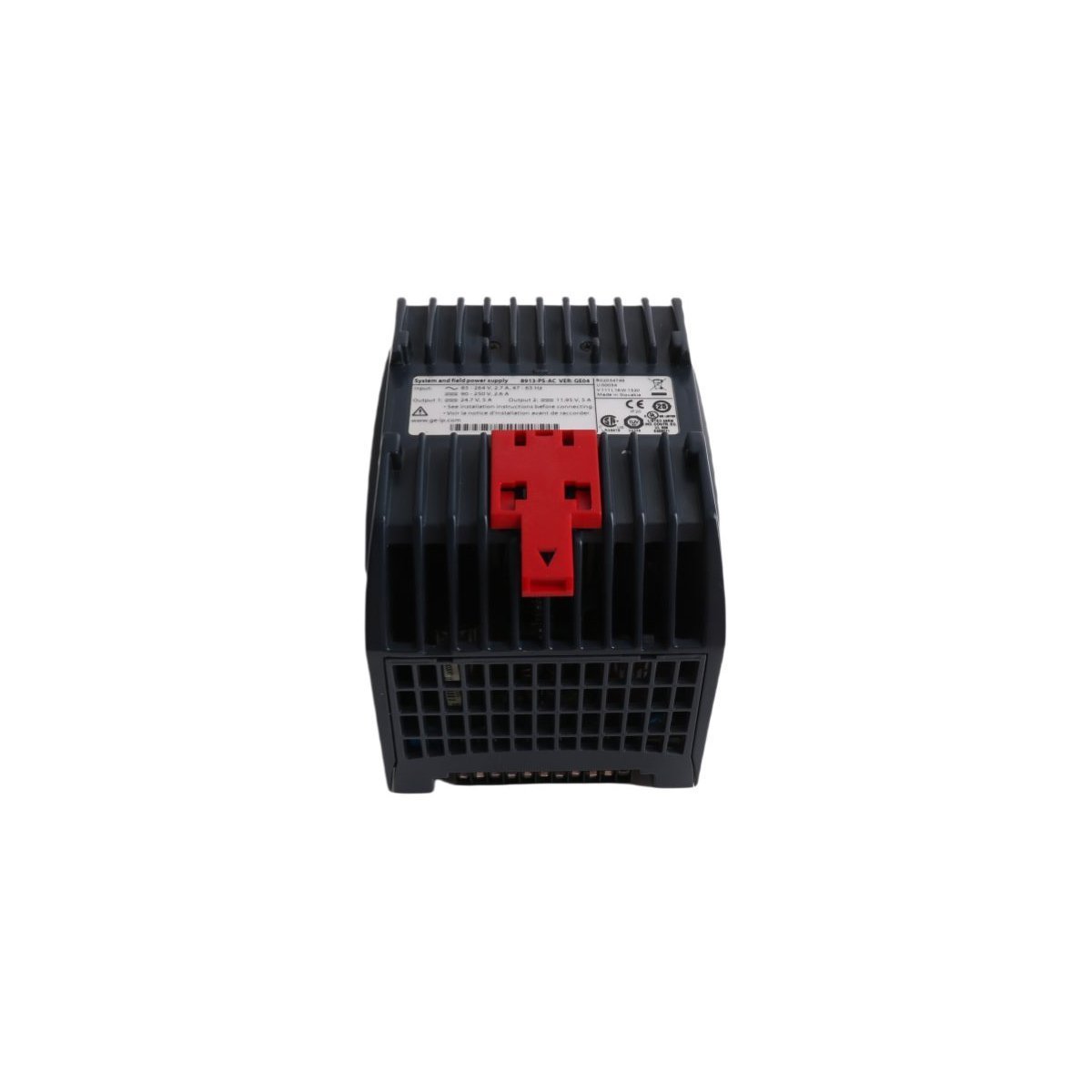

General Electric 8913-PS-AC PAC8000 Power Supply

The GE 8913-PS-AC is a 10A AC-to-DC power supply module for the PAC8000 system. It provides a stable 24V DC output from universal 100-240V AC inputs. Designed for Class 1 Div 2 hazardous areas, it supports redundant configurations on node service carriers to ensure maximum availability for industrial automation and DCS applications.

The GE 8913-PS-AC serves as a primary energy source for the PAC8000 process automation platform. This module converts universal alternating current into a stable 24V DC output. It provides a continuous 10A current to support controllers and I/O modules. Because it carries Class 1 Division 2 certification, the unit operates safely in hazardous industrial locations. Its high-efficiency design ensures consistent power delivery for critical DCS and safety systems.

Technical Specifications and Operational Limits

Parameter	Specification Details
Manufacturer	General Electric (GE / MTL)
Model Number	8913-PS-AC
Input Voltage Range	100 to 240V AC (Universal)
Input Frequency	47 to 63 Hz
Output Voltage	24V DC (±1% Stability)
Continuous Current	10 Amperes
Power Factor	> 0.95
Ripple and Noise	< 100mV peak-to-peak
Operating Temperature	-20°C to +60°C

Redundancy and System Availability

Engineers often prioritize system uptime by utilizing the module’s flexible mounting options. The 8913-PS-AC installs directly onto specialized node service carriers or dedicated power bases. These carriers typically feature dual positions for power hardware. Consequently, users can install a second unit to provide 1+1 redundancy. This configuration prevents system shutdown if a single power source fails. Furthermore, the 30A cold-start inrush current protection prevents tripped breakers during initial startup.

Robust Design for Harsh Environments

The module features a ruggedized enclosure to withstand the rigors of industrial sites. It operates reliably across a wide temperature spectrum from -20°C to +60°C. Additionally, the unit maintains high efficiency even under fluctuating load conditions. Its compact 1.5kg frame allows for high-density installation in control cabinets. By providing clean, regulated power, the 8913-PS-AC protects sensitive logic circuits from line-side electrical interference.
