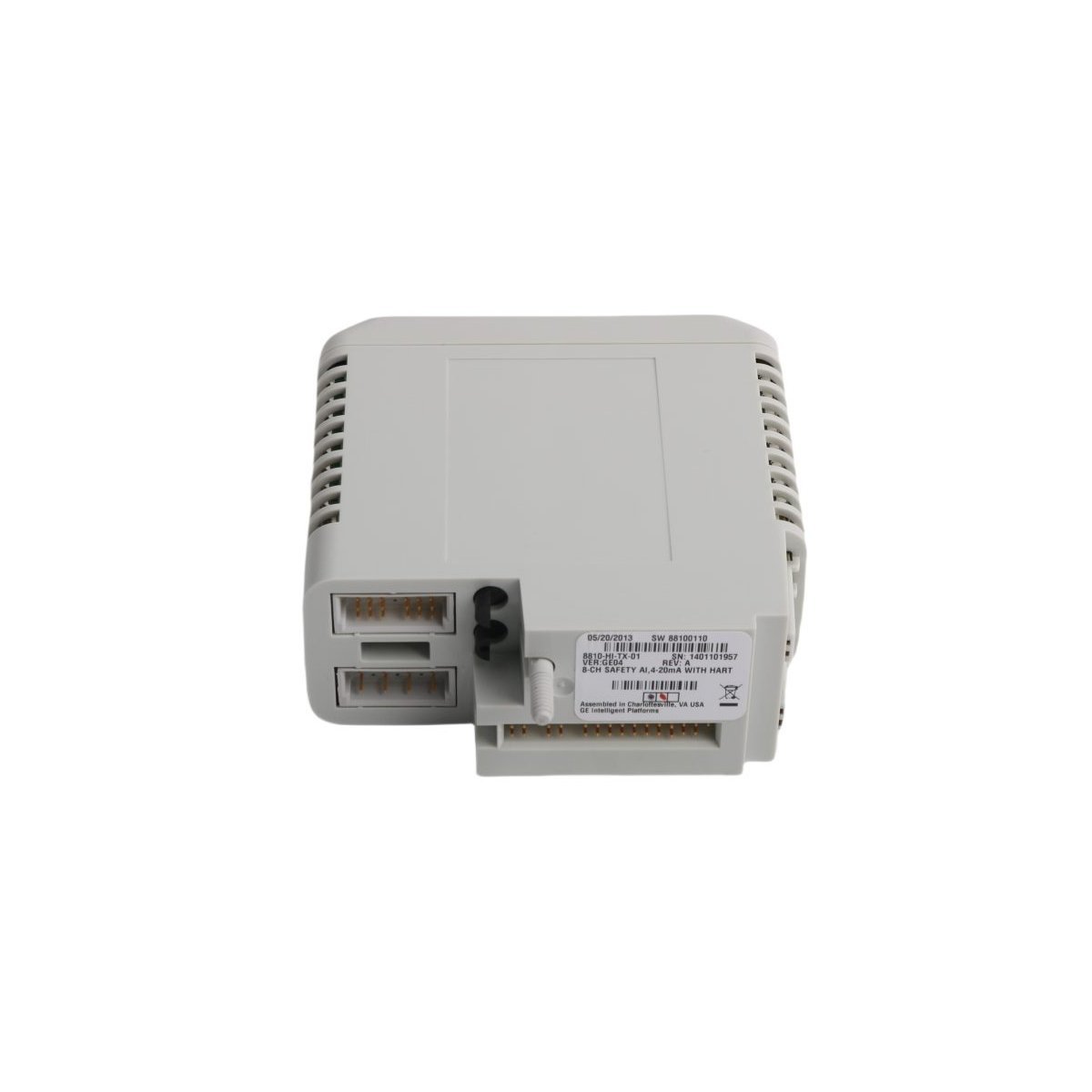

GE 8810-HI-TX Safety Analog Input Module

The GE 8810-HI-TX is a high-integrity Safety Analog Input Module designed for SIL-rated safety instrumented systems. It features 4-20 mA monitoring with HART support, TMR redundancy, and continuous self-diagnostics. This rugged, G3-certified module provides the reliable data acquisition necessary for emergency shutdown and fire-and-gas protection in critical industrial environments.

Technical Functionality

The General Electric 8810-HI-TX functions as a high-integrity Safety Analog Input Module specifically engineered for Process Safety System (PSS) applications. This module monitors critical analog signals from field transmitters, such as pressure, temperature, and flow, within a safety-instrumented environment. By employing a fail-safe architecture, the 8810-HI-TX ensures that any internal hardware fault or signal irregularity triggers a predefined safe state. Consequently, it plays a vital role in preventing industrial accidents by providing reliable data to safety logic solvers.

Operational Performance

This safety module utilizes an advanced Triple Modular Redundant (TMR) or dual-redundant internal voting scheme to ensure maximum data validity. Because it performs continuous background self-tests, the module can detect “latent” or “hidden” failures before they impact the process. Furthermore, the 8810-HI-TX features high-speed signal processing, which allows it to respond to rapid process excursions in milliseconds. The module also facilitates hot-swappability, enabling maintenance teams to replace a faulty unit without compromising the safety integrity of the remaining active rack.

Key Technical Characteristics

Safety Integrity Level: Designed and certified for use in SIL 2 or SIL 3 safety loops (depending on system configuration).
Input High Density: Manages multiple isolated analog input channels (typically 8 or 16) to optimize rack space.
HART Compatibility: Supports bidirectional HART digital communication for remote transmitter diagnostics and calibration.
Fault Tolerance: Incorporates redundant A/D converters and internal processors to eliminate single points of failure.
Electrical Isolation: Provides robust channel-to-channel and field-to-logic isolation to protect against electrical surges.
Environmental Rating: Features G3 conformal coating to maintain performance in corrosive or high-humidity atmospheres.

Primary Industrial Applications

Emergency Shutdown (ESD): Acting as the primary sensor interface for high-pressure or high-temperature trip logic.
Fire and Gas Systems (F&G): Monitoring analog flame and toxic gas detectors in volatile environments.
Boiler Protection: Ensuring safe operational parameters for steam drums and fuel feed systems in power plants.
Nuclear and Petrochemical: Providing the high-reliability monitoring required for strictly regulated safety-critical processes.
