Emerson KJ3222X1-BA1 12P2533X152 Analog Input HART Module

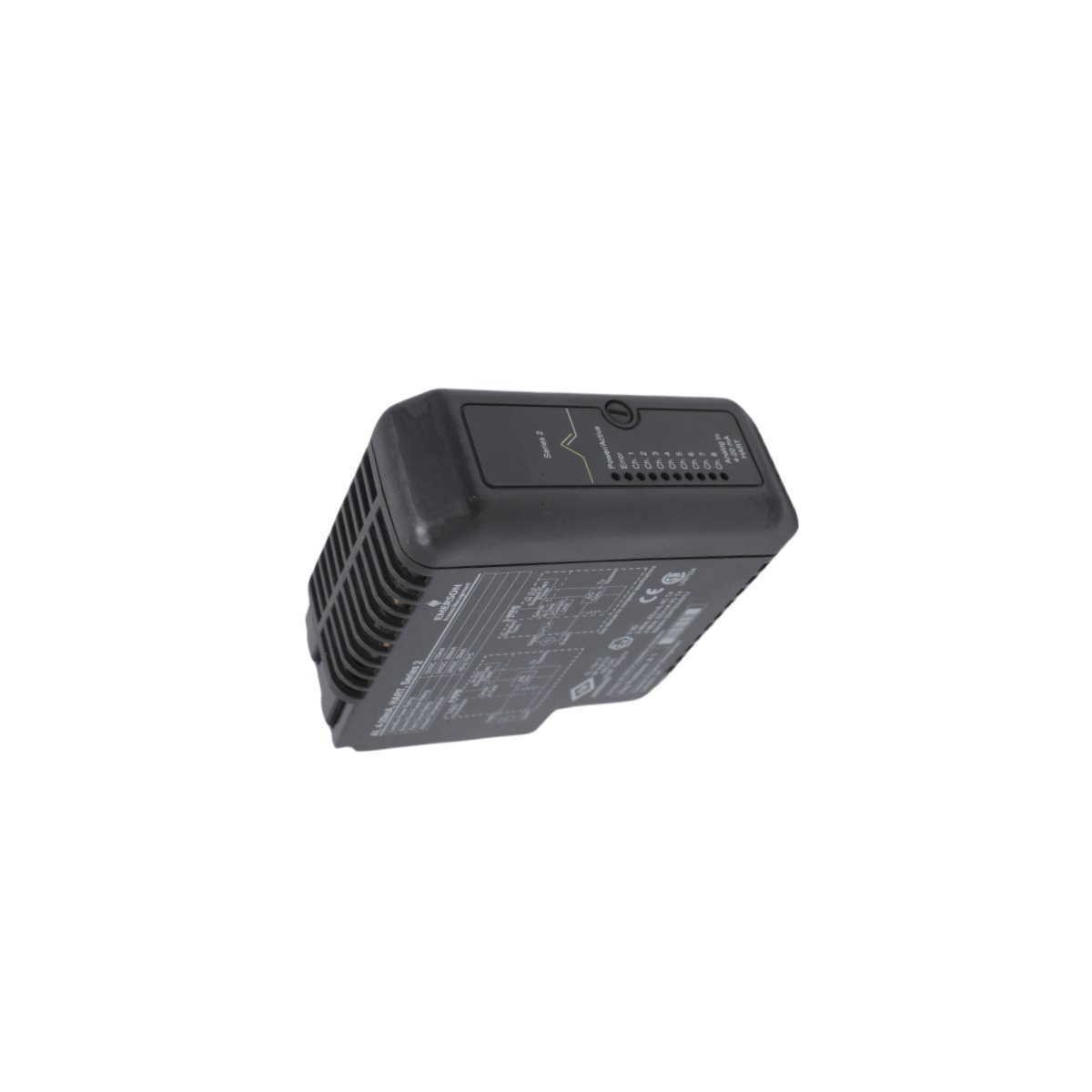

The Emerson KJ3222X1-BA1 (12P2533X152) is an 8-channel Analog Input HART module for the DeltaV M-series I/O subsystem. It provides high-resolution 4-20 mA signal conversion and integrated digital HART communication for advanced field device diagnostics. This ruggedized, G3-certified module ensures reliable data acquisition for critical industrial control applications.

Technical Functionality

The Emerson KJ3222X1-BA1, also identified by part number 12P2533X152, operates as a sophisticated 8-channel Analog Input module within the DeltaV M-series I/O subsystem. This module processes standard 4-20 mA signals while simultaneously facilitating Highway Addressable Remote Transducer (HART) digital communication. By bridging the gap between field instrumentation and the controller, the KJ3222X1-BA1 allows operators to extract secondary variables and diagnostic data directly from “smart” field devices. Consequently, this bidirectional communication capability enables advanced asset management and predictive maintenance strategies.

Operational Performance

This Analog Input card converts field signals into high-resolution digital data, ensuring the DeltaV system maintains precise control over industrial processes. Because the module includes robust electrical isolation, it effectively shields the internal system logic from field-side voltage spikes and electromagnetic interference. Furthermore, the 12P2533X152 supports redundancy when paired with a redundant terminal block, which eliminates single points of failure for critical control loops. These features collectively enhance the reliability of the DCS architecture in demanding environments.

Key Technical Characteristics

Signal Processing: Supports 8 independent channels for 4-20 mA analog inputs with integrated HART pass-through.
Diagnostic Depth: Enables access to device status, calibration dates, and secondary process variables via HART protocol.
System Architecture: Designed specifically for the DeltaV M-series I/O Subsystem for seamless backplane integration.
Protection Standards: Features G3 conformal coating to resist corrosive atmospheric contaminants in harsh plant conditions.
Hot-Swappability: Allows technicians to replace modules under power without disrupting the operation of other I/O cards on the same carrier.
Precision Conversion: Utilizes advanced A/D converters to deliver high-accuracy signal representation for complex PID loops.

Primary Industrial Applications

Oil and Gas Production: Monitoring high-precision pressure and temperature transmitters on offshore platforms and refineries.
Chemical Manufacturing: Capturing flow and level data from HART-enabled instruments to ensure strict batch consistency.
Power Generation: Managing critical feedback loops for water chemistry and fuel delivery systems in utility plants.
Pharmaceutical Processing: Providing the accurate, timestamped data required for regulatory compliance and quality control.
