SKU: PM902F 3BDH001000R0001

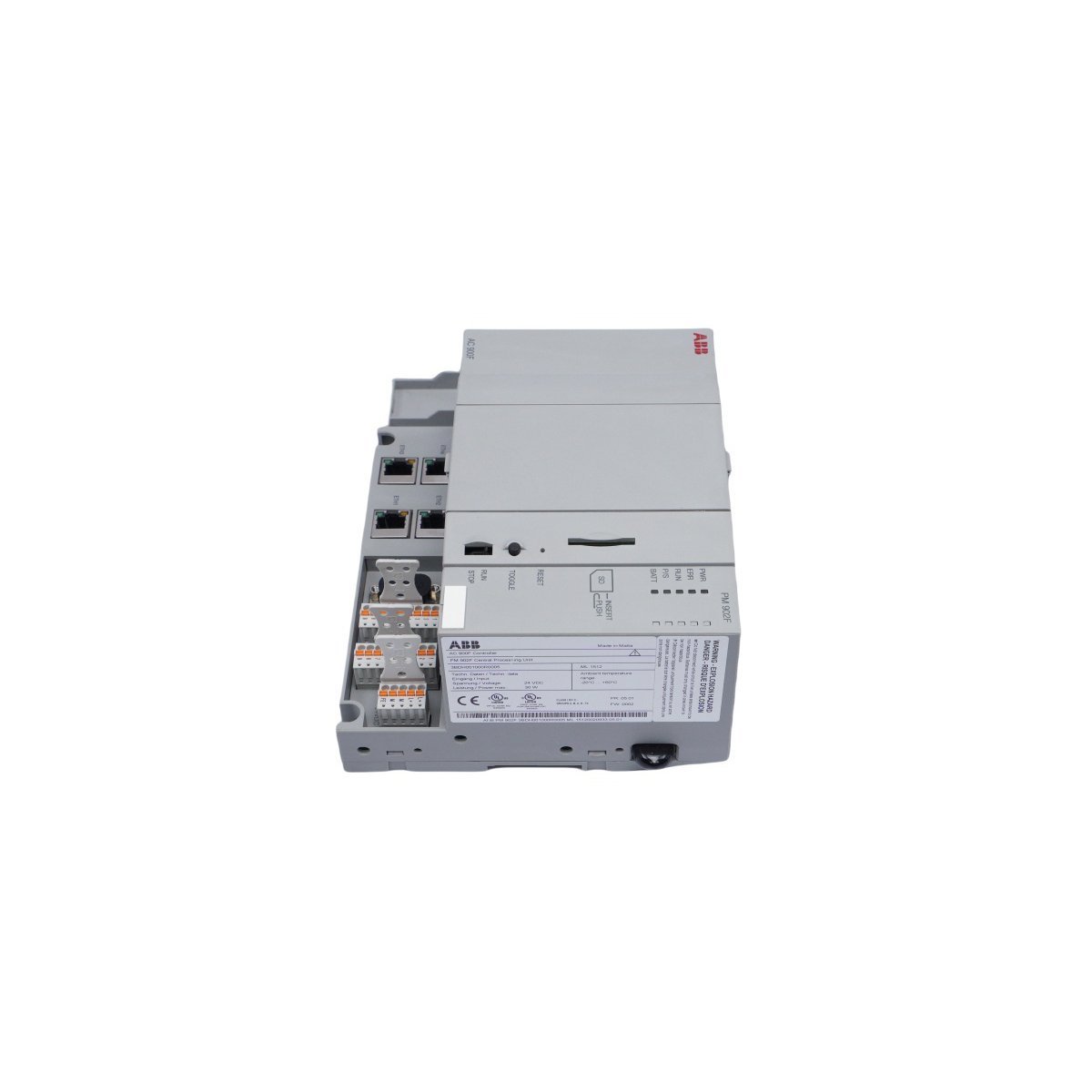

ABB PM902F 3BDH001000R0001 Freelance AC 900F CPU Module

The ABB PM902F (3BDH001000R0001) is a powerful AC 900F CPU module designed for the Freelance DCS platform. It features 24 MB of memory, integrated Ethernet connectivity, and native redundancy support, providing high-speed logic execution and dependable process control for modern industrial applications.

Product Overview

The ABB PM902F acts as the high-performance central processing unit for the Freelance AC 900F distributed control system (DCS). This controller module streamlines complex automation tasks by managing logic execution and coordinating data flow between various field devices and the human-machine interface (HMI). Consequently, the PM902F provides a scalable and robust foundation for process industries, ranging from small modular units to large-scale plant operations.

Reliability and speed define the PM902F’s operational profile. It utilizes advanced microprocessors to achieve rapid cycle times, which ensures precise control over critical process variables. Moreover, the module includes integrated Ethernet ports and serial interfaces, allowing for flexible connectivity with PROFIBUS, CAN, or Modbus protocols. To prevent data loss during power fluctuations, ABB equipped this CPU with non-volatile memory and a battery-buffered real-time clock.

For facilities requiring maximum uptime, the PM902F supports full controller redundancy. In this configuration, two CPU modules work in tandem to monitor the process simultaneously; if the primary unit encounters an error, the secondary unit assumes control instantly without interrupting the production cycle. This seamless transition makes the AC 900F series an ideal choice for high-availability environments.

Technical Specifications

Manufacturer: ABB
Model Designation: PM902F
Part Number: 3BDH001000R0001
Controller Series: Freelance AC 900F
Processing Memory: 24 MB RAM (user data and program)
Communication Interfaces: 4x Ethernet ports, 1x Serial port (support for Modbus TCP/RTU)
Fieldbus Options: Expandable with PROFIBUS DP, CAN, or Foundation Fieldbus modules
Redundancy Support: Native high-speed CPU redundancy capability
Display: Built-in LED diagnostics and status indicators
Storage: Flash memory for firmware and application backup
Power Supply: 24 V DC input requirement
Protection Class: IP20 rated for cabinet installation
Operating Temperature: 0 to +60 degrees Celsius
