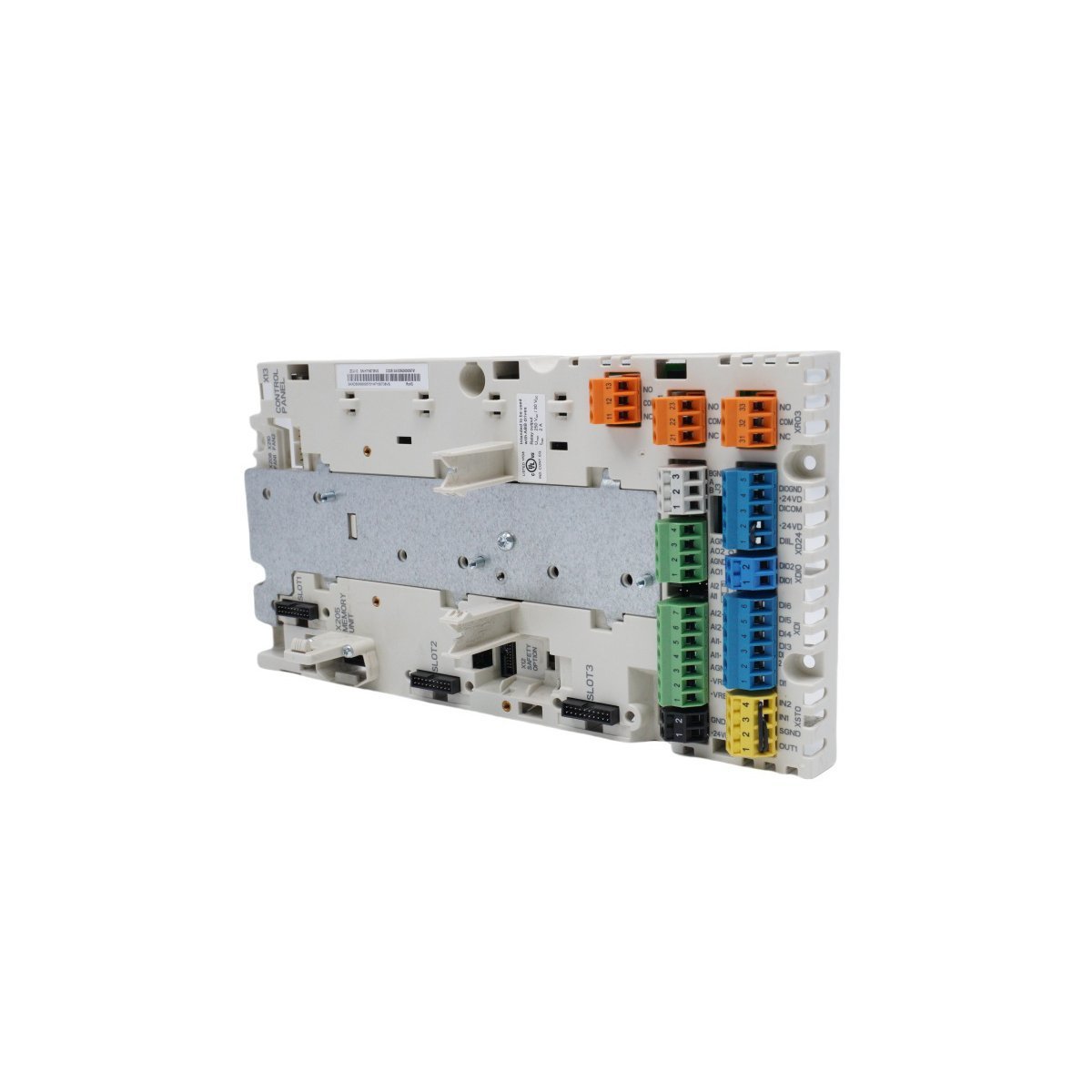

The ABB ZCU-12 (3AXD50000005751) is a high-performance control unit for ACS880 industrial drives. Equipped with integrated STO safety, versatile I/O expansion, and DTC motor control technology, this module provides the reliable processing power needed for critical variable speed drive applications.
The ABB ZCU-12 (part number 3AXD50000005751) functions as the central processing intelligence for the ACS880 series industrial drives. This module executes high-level control algorithms, including ABB’s signature Direct Torque Control (DTC), which provides exceptional motor speed and torque accuracy. By managing the high-speed data flow between the inverter power stage and the user interface, the ZCU-12 ensures optimal performance under varying load conditions. Furthermore, this central unit serves as the host for the drive’s firmware and application-specific software. Consequently, it is a vital component for maintaining the efficiency and responsiveness of large-scale motor control systems.
Beyond its fundamental motor control duties, the ZCU-12 incorporates an extensive range of built-in I/O, including digital inputs, analog channels, and relay outputs. This local connectivity enables the drive to interact directly with field devices like limit switches and pressure sensors without requiring an auxiliary PLC. In addition to these standard interfaces, the unit features three expansion slots that support various fieldbus adapters and I/O extension modules. Because the module is compatible with protocols such as PROFIBUS, PROFINET, and EtherNet/IP, it integrates seamlessly into diverse factory automation networks. Moreover, this flexibility allows for the customized scaling of control capabilities based on specific industrial requirements.
ABB has engineered the 3AXD50000005751 with a strong emphasis on plant safety, featuring an integrated Safe Torque Off (STO) function as standard. This hardware-based safety feature prevents the power semiconductors from switching, thereby ensuring that the motor cannot restart unexpectedly during maintenance or emergency stops. Additionally, the ZCU-12 utilizes a removable ZMU memory unit that stores all drive parameters, user settings, and firmware versions. Therefore, if a control unit requires replacement, technicians can transfer the memory unit to the new hardware to restore the system configuration instantly. As a result, this design significantly minimizes downtime and reduces the technical complexity of field service operations.
