Product Overview

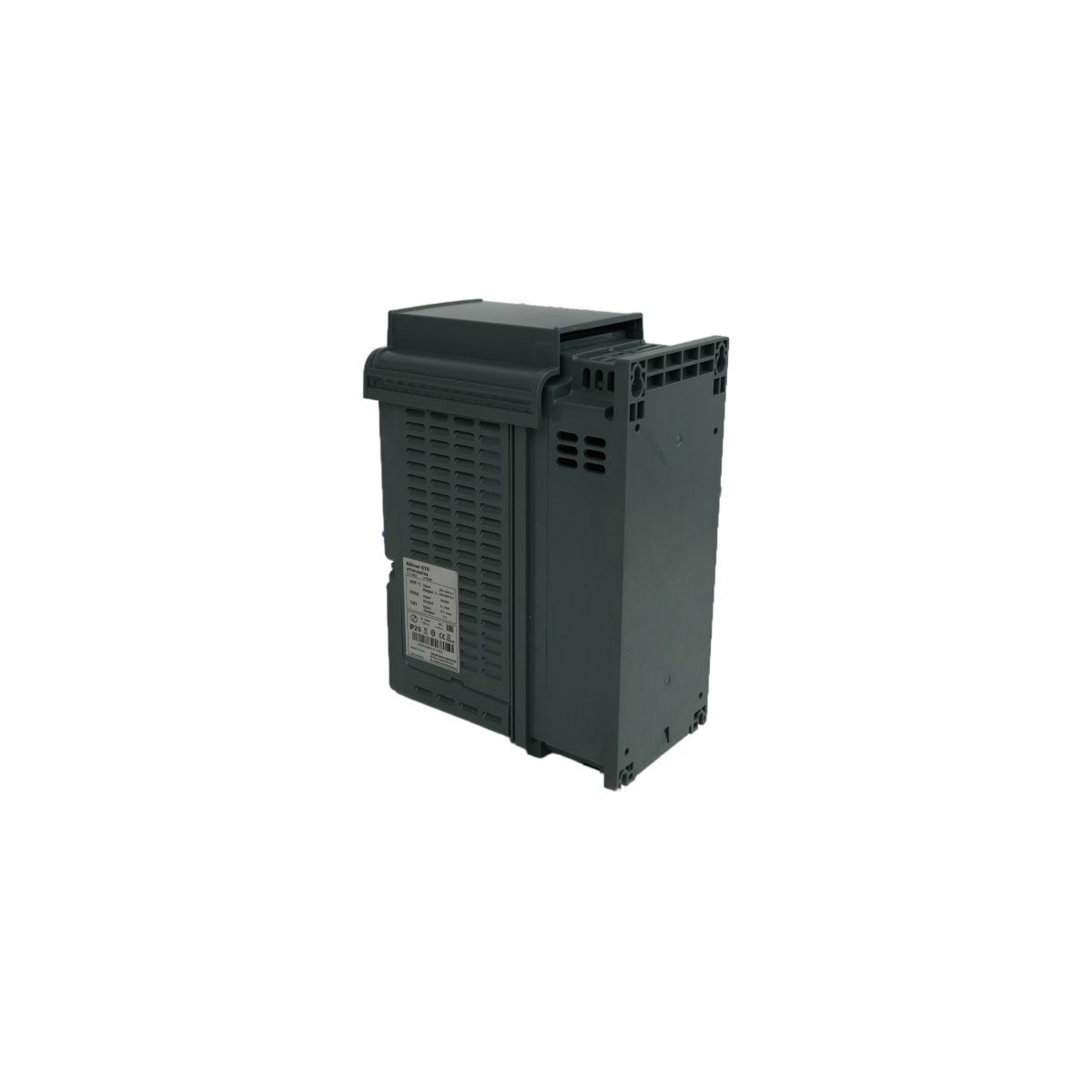

The Schneider Electric ATV610C11N4 belongs to the Easy Altivar 610 family, a series of frequency inverters specifically optimized for three-phase asynchronous motors. This 1.1 kW (1.5 HP) drive excels in basic industrial and commercial environments, offering a streamlined approach to motor control. By utilizing a “plug-and-play” philosophy, Schneider Electric ensures that this unit delivers high reliability and rapid deployment for 380V to 415V AC systems. Consequently, it has become a standard choice for facilities seeking an efficient balance between performance and simplicity.
Functional Capabilities
- Accelerates System Commissioning: The drive arrives with factory-preset parameters tailored for common applications. As a result, technicians can install and activate the unit with minimal configuration, significantly reducing labor costs and downtime.
- Ensures Electromagnetic Compatibility: This module incorporates integrated radio interference input filters that strictly adhere to IEC/EN 61800-3 standards. By doing so, the drive prevents electrical noise from disrupting nearby sensitive electronics within the industrial workspace.
- Optimizes Energy Consumption: The ATV610C11N4 actively adjusts motor output to match the actual load requirements. This capability makes it exceptionally effective for pump and fan applications, where reducing motor speed leads to substantial energy savings and lower operational costs.
- Manages Thermal Loads Efficiently: The drive’s physical architecture prioritizes heat dissipation even in its compact form factor. Therefore, the unit maintains stable performance during continuous operation, protecting internal components from premature wear caused by overheating.
- Simplifies Fault Management: Integrated protection features constantly monitor the motor for electrical faults and moderate overload conditions. Consequently, the drive safeguards the connected equipment, reducing the frequency of maintenance interventions and extending system longevity.
Technical Specifications
- Manufacturer: Schneider Electric
- Model Number: ATV610C11N4
- Range of Product: Easy Altivar 610
- Module Type: Variable Speed Drive (VSD) / Frequency Inverter
- Power Rating: 1.1 kW (1.5 HP)
- Supply Voltage: 380V to 415V AC (Three-Phase)
- Communication Service: Ethernet router compatibility / Modbus
- Weight: 1.9 kg
- Dimensions: 27.9 x 21.6 x 6.3 cm
- Country of Origin: France
Primary Applications
Maintenance engineers and contractors typically deploy the ATV610C11N4 in infrastructure and process industries. For instance:
- Water and Wastewater Treatment: It manages the speed of centrifugal pumps, providing stable pressure control while protecting the motor from dry-running or blockage.
- Building Management Systems (BMS): The drive controls supply and extract fans in HVAC systems, ensuring optimal airflow and air quality with minimal noise and energy waste.
- Basic Industrial Processes: It serves as a reliable motor controller for agitators, mixers, and conveyor belts that do not require complex servo synchronization.
- Irrigation Systems: The unit provides a cost-effective solution for managing large-scale water distribution, allowing for gradual ramp-ups that prevent water hammer in the piping network.
