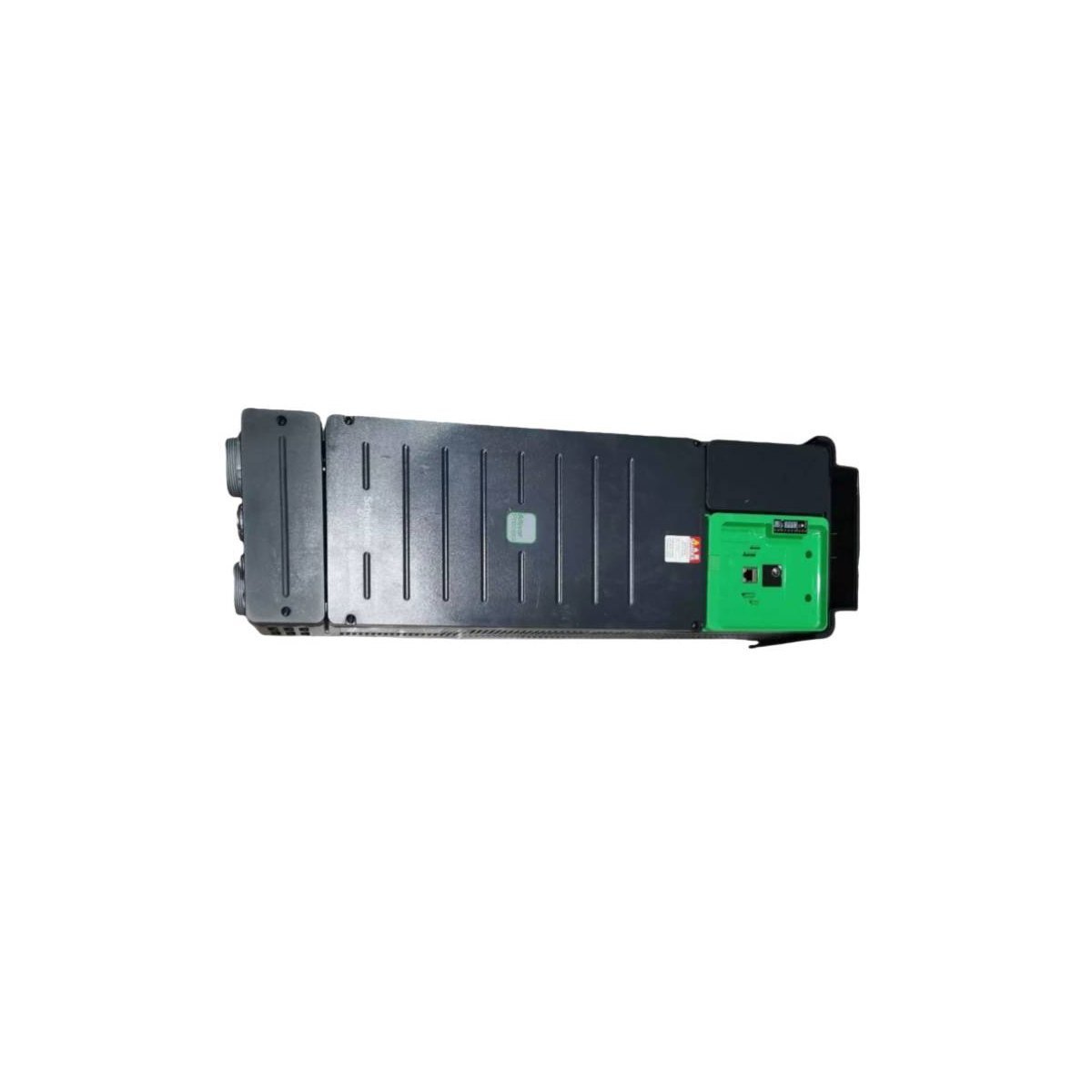

The Schneider Electric ATV930C16N4C is a 160kW (215HP) variable speed drive. This Altivar Process ATV900 model provides advanced energy monitoring and precision control for 400V motors.
The Schneider Electric ATV930C16N4C is a high-performance 160kW frequency inverter within the Altivar Process ATV900 range. This drive specifically targets demanding industrial applications requiring advanced motor control and connectivity. It operates on a three-phase supply between 380V and 480V AC. Furthermore, the unit features embedded intelligence to optimize process efficiency and asset management. The IP00 rating design makes it ideal for integration into specialized electrical control cabinets.
| Attribute | Detailed Specification |
| Manufacturer | Schneider Electric |
| Model Number | ATV930C16N4C |
| Rated Power (Normal Duty) | 160 kW (215 HP) |
| Rated Power (Heavy Duty) | 132 kW (175 HP) |
| Supply Voltage | 380…480 V AC |
| Continuous Output Current | 302 A at 400 V |
| Protection Rating | IP00 / UL Type Open |
| Communication Ports | Ethernet, Modbus TCP, Modbus Serial |
The ATV930C16N4C includes a sophisticated energy dashboard for real-time power measurement. This system allows operators to track consumption with high accuracy. Moreover, the integrated Stop and Go function significantly reduces power loss during idle cycles. The drive also provides drift monitoring to detect mechanical performance changes. Consequently, users can implement predictive maintenance strategies to avoid unexpected downtime. These digital features empower facilities to reach their sustainability and efficiency goals.
Precision motor regulation remains a core capability of this Altivar Process model. The drive manages high-torque applications with exceptional stability across all speed ranges. Additionally, it offers comprehensive protection for both the motor and the driven asset. The internal logic safeguards equipment against electrical overloads and thermal surges. Furthermore, the drive supports complex master-slave configurations for synchronized multi-motor systems. This versatility ensures reliable operation in heavy-duty mining, oil, and water treatment sectors.
Embedded dual Ethernet ports facilitate easy connection to modern industrial IoT networks. The drive communicates effortlessly with PLC systems for centralized control and data acquisition. Moreover, the web server interface enables remote monitoring and fast parameter adjustment. This connectivity simplifies the commissioning process for large-scale automation projects. The modular hardware design also allows for quick access during routine maintenance inspections. Overall, the unit provides a robust foundation for digitized industrial environments.
