SKU: ATV61HD22N4Z

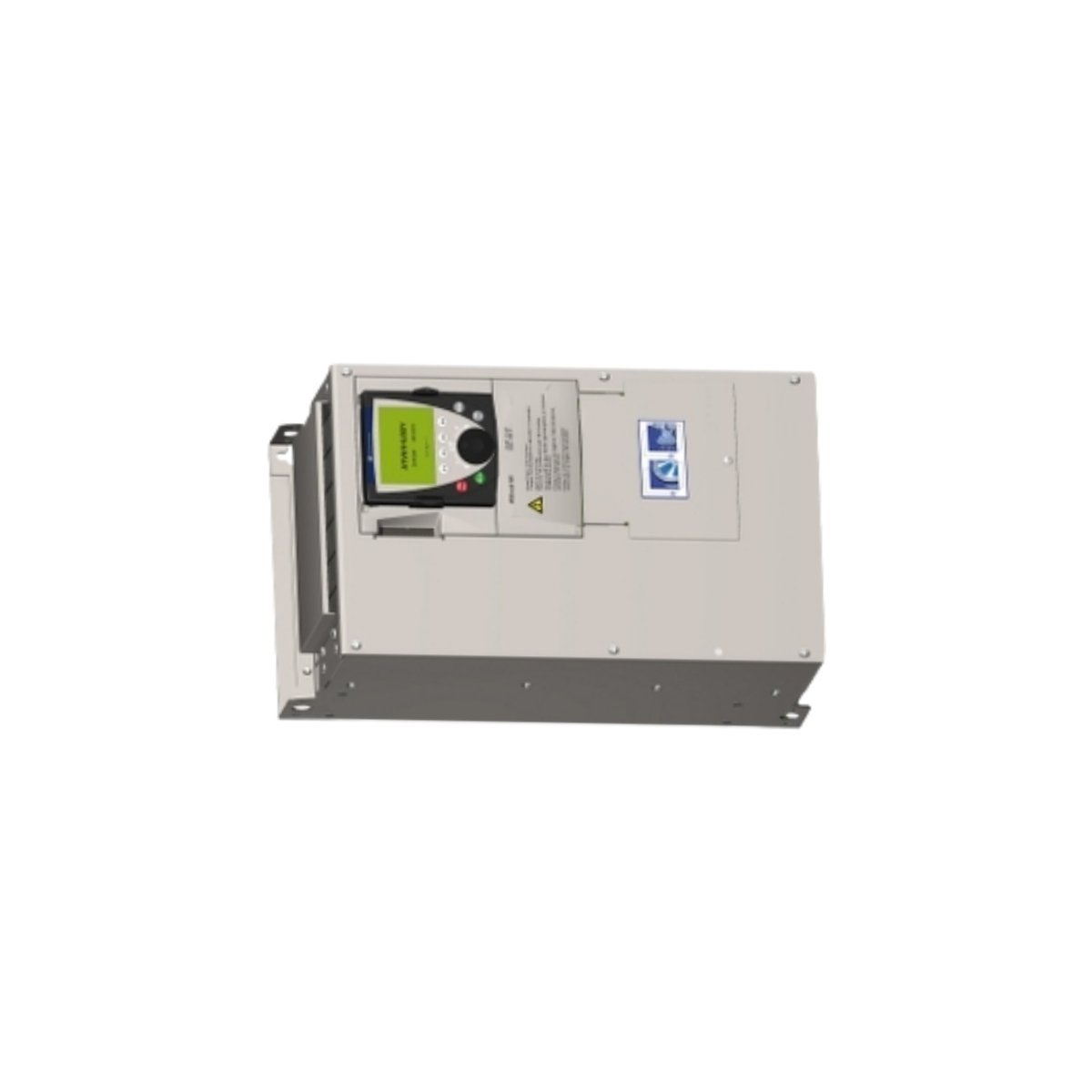

Schneider Electric ATV61HD22N4Z Altivar 61 Variable Speed Drive
The Schneider Electric ATV61HD22N4Z is a 22kW (30hp) Altivar 61 frequency inverter designed for variable torque motor control. This high-efficiency drive features an integrated EMC filter and supports advanced Modbus/CANopen communication for industrial pump and fan systems.
Product Description
The Schneider Electric ATV61HD22N4Z functions as a robust frequency inverter specifically optimized for managing three-phase asynchronous motors in centrifugal pump and fan applications. This 22 kW (30 hp) Variable Speed Drive (VSD) belongs to the Altivar 61 series, a range renowned for its ability to enhance energy efficiency and torque management. The “Z” designation indicates that this specific unit is supplied without the graphic display terminal, allowing for cost-effective integration into systems where centralized control or external HMI interfaces are already present.
Operating within a voltage range of 380 V to 480 V, the drive employs sophisticated control laws to adapt to variable torque loads, significantly reducing operational costs and mechanical wear. The unit includes an integrated EMC filter to suppress conducted emissions, ensuring compliance with industrial electromagnetic compatibility standards. Furthermore, the modular architecture allows users to expand the drive’s capabilities through optional I/O extension cards and various communication modules.
Consequently, the ATV61HD22N4Z provides a reliable and scalable solution for HVAC systems, water management, and industrial ventilation. It prioritizes system safety through built-in protection mechanisms that guard against motor overheating, phase loss, and overcurrent. Through its advanced thermal management system, the drive maintains high performance even in demanding cabinet environments, securing long-term reliability for critical infrastructure.
Key Technical Characteristics
- Manufacturer: Schneider Electric
- Model Series: Altivar 61 (ATV61)
- Rated Power: 22 kW (30 hp) for Normal Duty applications
- Supply Voltage: 380 V to 480 V AC (Three-Phase)
- Current Rating: 48 A at 380 V / 40 A at 480 V
- Output Frequency Range: 0.1 Hz to 599 Hz
- Interface Configuration: Supplied without HMI (Z-version)
- Communication Ports: Integrated Modbus and CANopen
- Ingress Protection: IP20 for indoor panel installation
- Electromagnetic Compatibility: Integrated Class A EMC filter
- Control Logic: Programmable acceleration/deceleration ramps and skip frequencies
- Braking Capacity: Supports dynamic braking with external resistors
