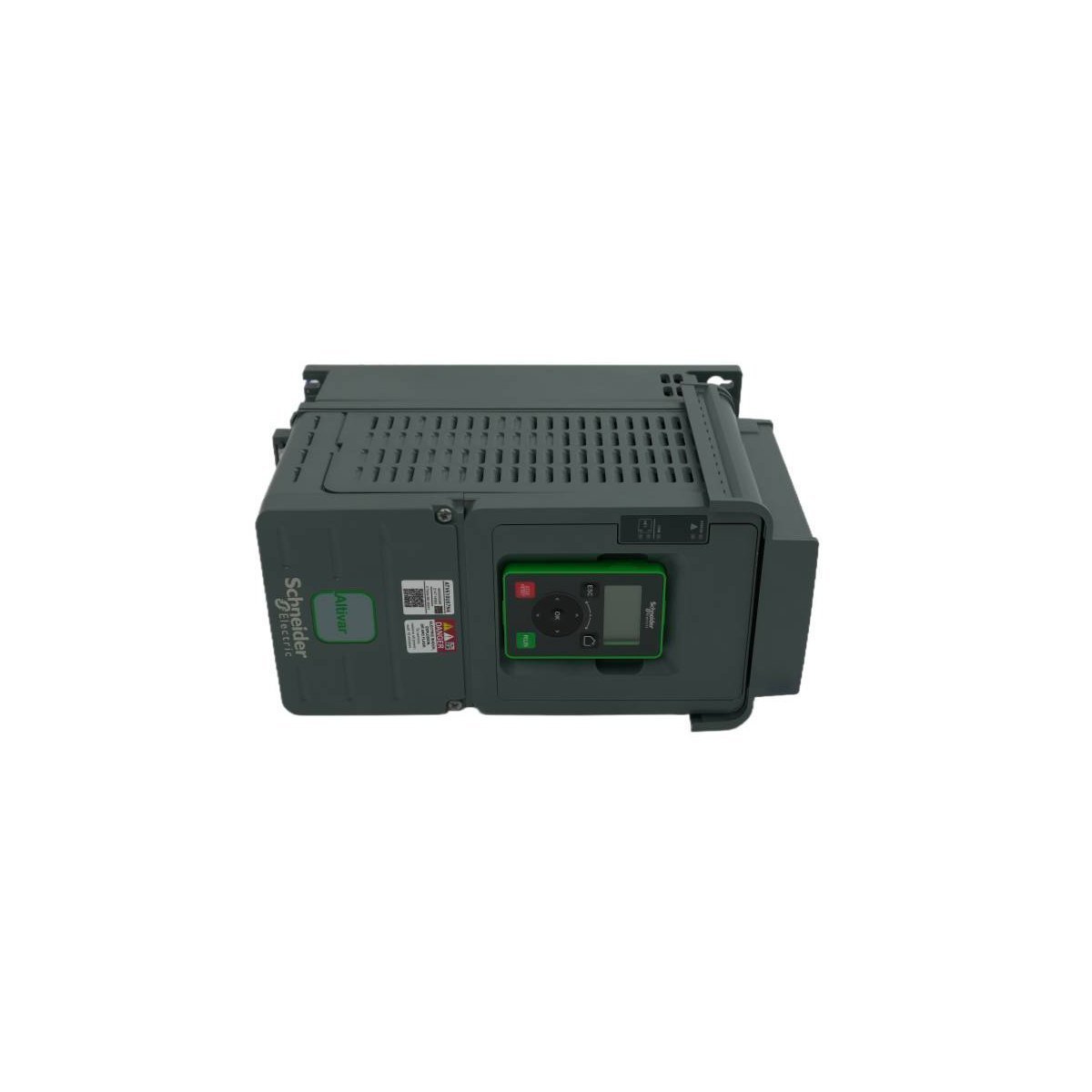

Schneider Electric ATV610D45N4 Variable Speed Drive

Technical Overview

The Schneider Electric ATV610D45N4 operates as a high-performance Variable Speed Drive (VSD) within the Altivar 610 family, specifically engineered for three-phase asynchronous motors. This model functions as a robust motor control solution for applications ranging from 45 kW to 55 kW, depending on the load characteristics. Because it belongs to the Altivar Easy range, it prioritizes essential functionality and ease of integration into industrial pumping and ventilation systems. By optimizing motor speed according to real-time demand, the ATV610D45N4 significantly reduces energy consumption and mechanical wear on industrial equipment.

Operational Logic and Energy Efficiency

The ATV610D45N4 manages motor performance through advanced vector control algorithms, which ensure precise torque delivery even at low speeds. To facilitate sustainable operations, the drive incorporates an “Economic Mode” that automatically adjusts the motor’s power consumption based on the actual load. Furthermore, the unit features an integrated EMC filter (Category C3), which mitigates electromagnetic interference and ensures compliance with industrial standards. Moreover, since the drive utilizes a plug-and-play communication architecture, it integrates seamlessly into existing Modbus RTU networks.

To further improve system longevity, the ATV610D45N4 employs a specialized cooling design and conformally coated circuit boards. These features effectively protect the internal electronics from the dust and humidity typically found in mechanical rooms and wastewater treatment plants. In addition to its motor control capabilities, the drive provides extensive diagnostic data through its plain-text display terminal. Consequently, maintenance teams can identify issues such as overcurrent, phase loss, or motor overheating immediately. As a result, the drive serves as a reliable and cost-effective solution for improving process reliability in the water, wastewater, and oil and gas industries.

Key Technical Characteristics

• Brand: Schneider Electric
• Model Number: ATV610D45N4
• Product Series: Altivar 610 (Altivar Easy)
• Motor Power (Normal Duty): 55 kW (75 hp)
• Motor Power (Heavy Duty): 45 kW (60 hp)
• Input Voltage: 380 to 460 V AC (Three-Phase)
• Output Current: 106 A (Normal Duty) / 88 A (Heavy Duty)
• Communication Protocol: Integrated Modbus RTU
• Protection Rating: IP20 (Standard)
• EMC Filter: Integrated Category C3

Primary Applications

• Managing centrifugal pumps in municipal water distribution systems.
• Controlling large industrial fans and blowers for HVAC and cooling towers.
• Driving compressors in oil and gas processing facilities.
• Operating conveyor systems in bulk material handling plants.
• Regulating intake and exhaust systems in mining ventilation.
