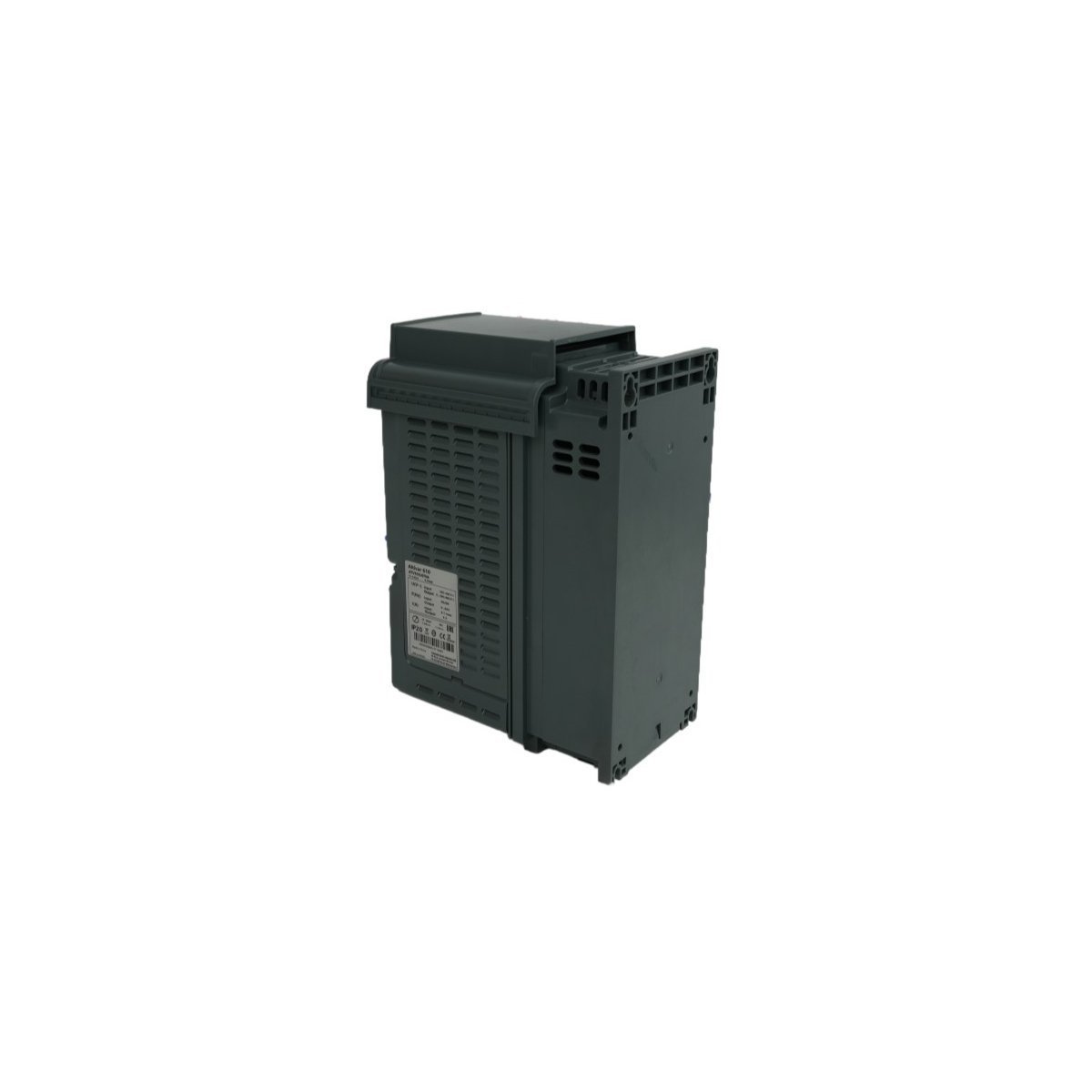

The Schneider Electric ATV630C16N4 is a 160kW (215HP) frequency inverter. This Altivar Process drive offers advanced fluid management and 30% energy savings for 400V motors.
The Schneider Electric ATV630C16N4 is a specialized frequency inverter within the Altivar Process range. This 160kW drive provides exceptional motor regulation for both asynchronous and synchronous three-phase systems. It operates effectively on a power supply between 380V and 480V AC. Furthermore, the unit features embedded intelligence to optimize fluid management and industrial process efficiency. The hardware supports a 120% overload capacity for standard duty applications. Consequently, it delivers reliable performance for heavy-duty pumps, fans, and compressors.
| Feature | Detailed Specification |
| Manufacturer | Schneider Electric |
| Model Number | ATV630C16N4 |
| Rated Power (Normal Duty) | 160 kW (215 HP) |
| Rated Power (Heavy Duty) | 132 kW (175 HP) |
| Output Current | 302 A (Normal Duty) |
| Communication Ports | 2 x RJ45 Serial, 1 x RJ45 Ethernet |
| Protection Rating | IP21 / UL Type 1 |
| Weight | 82 kg |
The ATV630C16N4 focuses heavily on reducing operational costs through innovative energy management. For instance, the integrated “Stop and Go” function reduces power consumption during standby periods. This technology can save up to 30% in energy costs without extra hardware. Moreover, the drive includes a built-in energy dashboard for real-time efficiency tracking. Technicians can monitor power usage directly through the graphic display terminal. These tools help facilities meet strict environmental and sustainability standards.
This Altivar model excels in water, wastewater, and mining applications. It offers dedicated functions to manage pump curves and prevent water hammer effects. Additionally, the drive protects connected assets by monitoring for pipe leaks and dry run conditions. The robust internal logic safeguards the motor against thermal overloads and phase loss. Furthermore, the unit supports vertical mounting with a 10-degree installation tolerance. This physical flexibility allows for easier integration into diverse electrical room layouts.
Seamless communication remains a core strength of the ATV630C16N4 architecture. The drive links easily to PLC systems via Modbus TCP and serial protocols. Moreover, users can expand the system through optional I/O modules and fieldbus cards. The integrated web server allows for remote diagnostics and parameter adjustments via a browser. Thus, engineering teams can maintain the equipment without being physically present at the machine. This connectivity reduces maintenance response times and enhances overall plant productivity.
