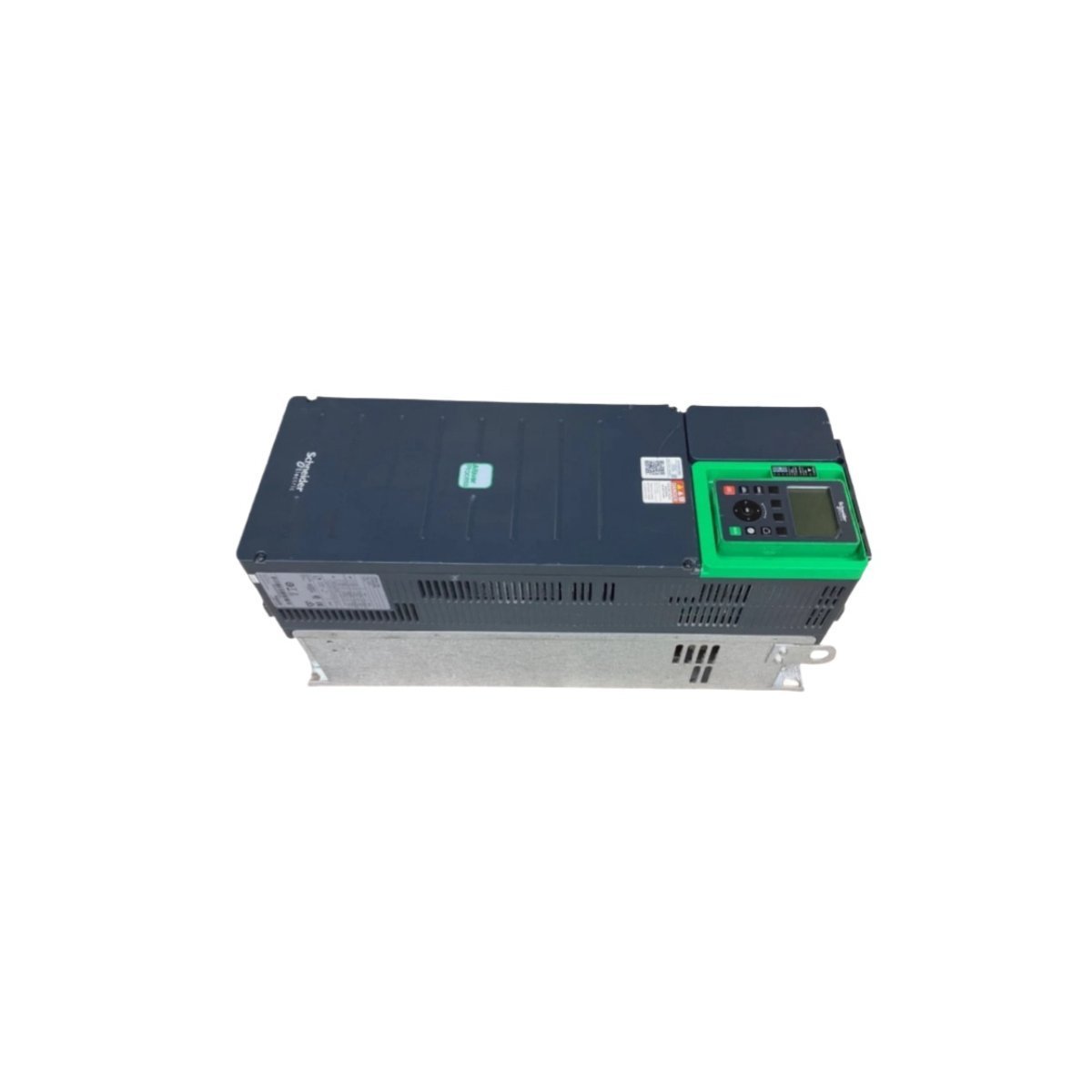

The Schneider Electric ATV630D45N4 is a 45kW (60HP) Variable Speed Drive from the Altivar Process 600 series. It features advanced energy-saving modes and dual Ethernet ports for 380-480V industrial systems.
The Schneider Electric ATV630D45N4 is a specialized frequency inverter from the Altivar Process range. This 45kW drive prioritizes fluid management and industrial process efficiency. It manages both asynchronous and synchronous motors with high reliability. The unit operates within a three-phase voltage range of 380V to 480V. Furthermore, the IP21-rated housing supports secure wall-mount installation. This drive excels at reducing the total cost of ownership through smart energy management.
| Feature | Detailed Specification |
| Manufacturer | Schneider Electric |
| Model Number | ATV630D45N4 |
| Power Rating (Normal Duty) | 45 kW (60 hp) |
| Power Rating (Heavy Duty) | 37 kW (50 hp) |
| Input Voltage | 380…480 V AC |
| Cooling Method | Forced convection |
| Net Weight | 28.7 kg |
| Physical Dimensions | 226 x 673 x 271 mm |
Superior energy savings define the performance of the ATV630D45N4. The integrated “Stop and Go” function reduces standby power consumption by 30%. Moreover, the drive supports multiple control profiles for constant and variable torque. Users can configure up to 16 preset speeds for complex operational cycles. The system also monitors power usage in real time. These capabilities make it ideal for power-intensive utility applications. Consequently, operators can achieve significant utility savings without extra hardware.
Modern automation requires robust communication and safety features. This model includes dual Ethernet ports and Modbus TCP as standard. Additionally, the drive supports expansion cards for Profinet, Profibus, and CANopen. Integrated RJ45 ports allow for quick network integration. The unit also meets SIL 3 safety standards via the Safe Torque Off function. This ensures high-level protection for both personnel and equipment. Furthermore, the embedded web server facilitates remote diagnostics and asset management.
The ATV630D45N4 serves as a benchmark for fluid processing industries. It performs exceptionally well in water and wastewater treatment facilities. Oil and gas refineries utilize the drive for precise pump and fan control. Additionally, the food and beverage sector relies on its hygienic process management. The robust design withstands the rigors of mining and minerals processing. It offers a versatile solution for any facility requiring advanced motor regulation.
