SKU: ATV930D22N4

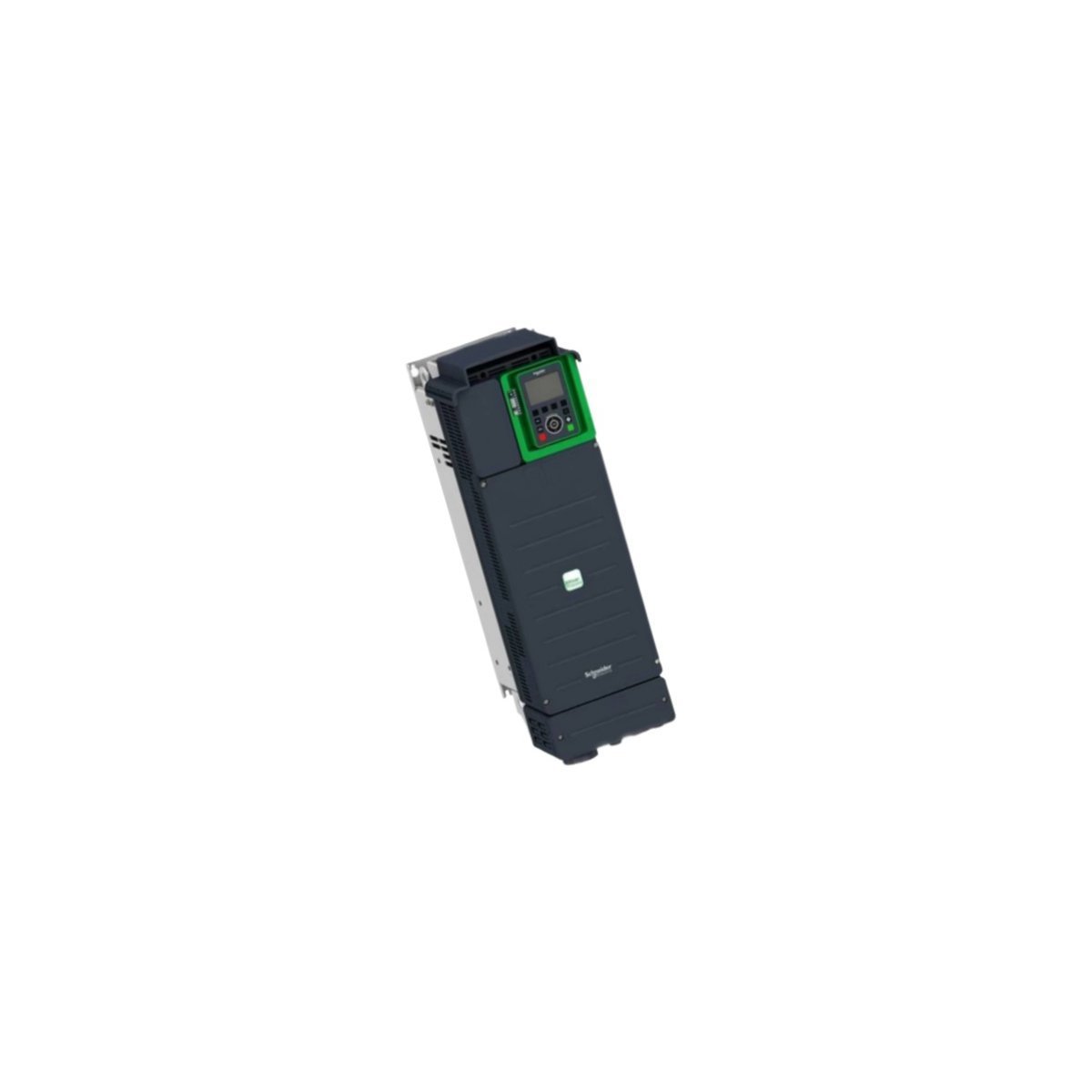

Schneider ATV930D22N4 Variable Speed Drive
The Schneider Electric ATV930D22N4 is a 22kW (30HP) variable speed drive from the Altivar 900 series. It offers advanced Ethernet connectivity and precise control for 400/480V industrial motors.
The Schneider Electric ATV930D22N4 belongs to the advanced Altivar Process 900 family. This 22kW frequency inverter provides high-performance motor control for industrial applications. It drives both three-phase asynchronous and synchronous motors with exceptional accuracy. Furthermore, the unit features an integrated braking transistor for effective deceleration management. The IP21 enclosure rating protects the internal components from solid debris and light moisture.
Core Technical Specifications
| Feature | Technical Detail |
| Manufacturer | Schneider Electric |
| Model Number | ATV930D22N4 |
| Nominal Power (Normal Duty) | 22 kW (30 hp) |
| Nominal Power (Heavy Duty) | 18.5 kW (25 hp) |
| Supply Voltage | 380…480 V AC (50/60 Hz) |
| Output Current | 46.3 A at 400 V |
| Integrated Interface | Dual-port Ethernet and Modbus TCP |
| Product Weight | 14.3 kg |
Operational Interface and Navigation
User interaction improves significantly with the optional VW3A1101 graphic display module. This interface allows for deep parameter access and real-time monitoring. The dedicated jog dial enables rapid menu navigation and speed reference adjustments. Additionally, the unit features physical buttons for local start and stop commands. Users must ensure firmware compatibility for optimal data visualization. Specifically, the drive requires FLASH version V1.1IE29 or newer for advanced graphics.
Industrial Connectivity and Safety
Modern digital integration distinguishes the ATV930D22N4 from traditional motor starters. Dual Ethernet ports facilitate seamless communication with PLC systems and SCADA networks. Moreover, the drive includes embedded energy management tools to track power consumption. These insights help operators optimize process efficiency and reduce operational costs. The drive also supports master/slave configurations for synchronized load sharing. This capability remains essential for complex conveyor systems and high-torque machinery.
