SKU: ATV71HD37N4

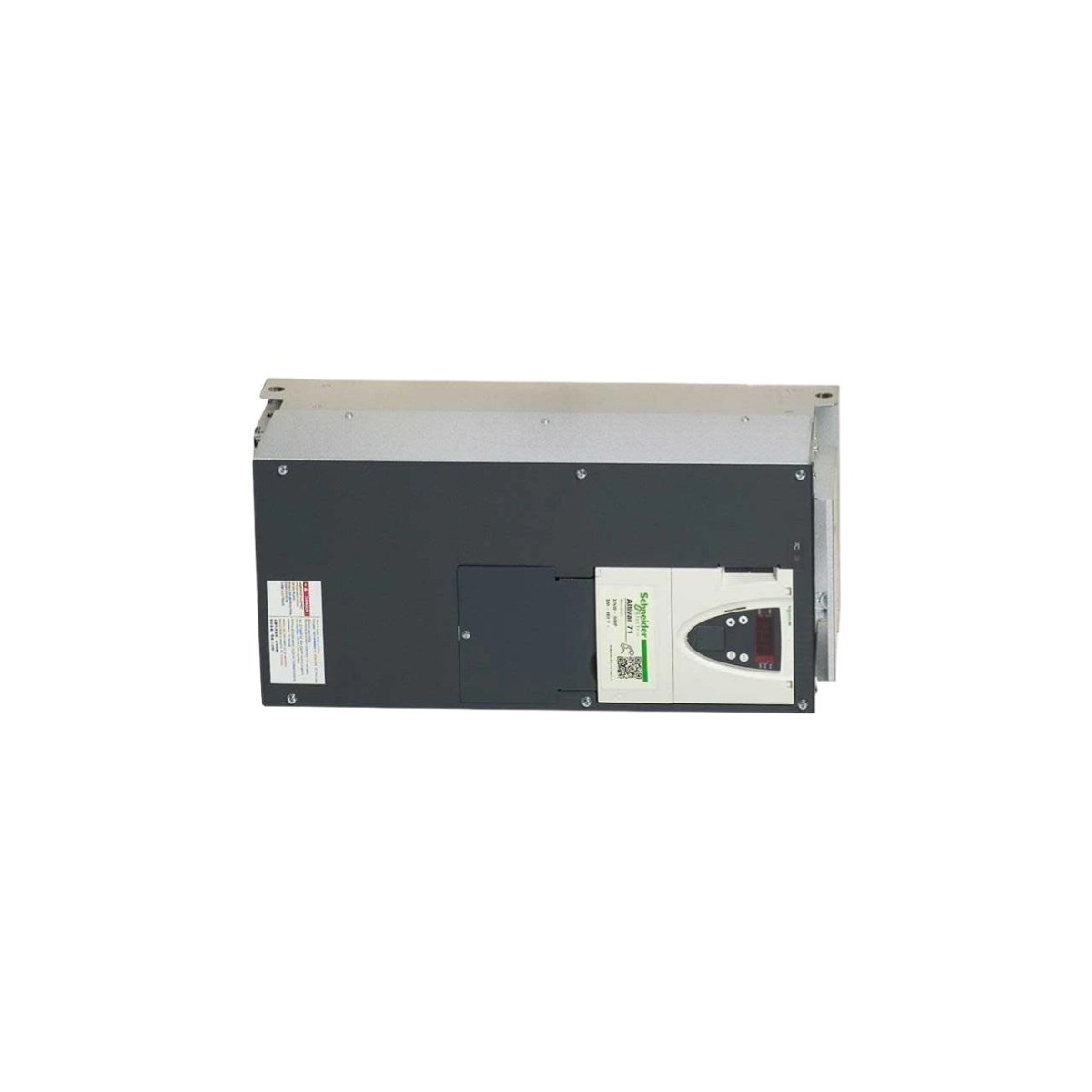

Schneider Electric Altivar 71 ATV71HD37N4 Variable Speed Drive

The Schneider Electric ATV71HD37N4 is a professional 37 kW (50 HP) variable frequency drive from the Altivar 71 series. This 480V VFD delivers precise motor control, features an integrated EMC filter, and provides comprehensive safety protections for high-torque industrial machinery.

Technical Overview

Schneider Electric engineered the ATV71HD37N4 as a high-performance variable frequency drive (VFD) to manage heavy-duty 37 kW (50 HP) industrial motors. While the original datasheet labels this as an “Electric Motor,” it actually functions as a sophisticated motor controller within the Altivar 71 series. Because this drive operates at a nominal voltage of 480V, it provides precise speed and torque regulation for both asynchronous and synchronous motors. Furthermore, the unit actively maintains system stability by utilizing a built-in EMC filter to suppress electromagnetic noise, which ensures the drive remains compatible with sensitive nearby electronics.

Operational Performance and Efficiency

The ATV71HD37N4 actively optimizes energy consumption by applying advanced control algorithms that adjust power output based on real-time load demands. Consequently, industrial operators can achieve significant energy savings during partial-load operations. Moreover, the drive features a robust thermal management system that allows it to maintain peak performance even in high-temperature environments. Users can also enhance the interface by adding an optional graphic terminal, which provides a detailed visual overview of motor parameters and simplifies the commissioning process.

Safety and System Integration

Schneider Electric prioritizes equipment longevity by integrating a comprehensive suite of protection mechanisms into the ATV71HD37N4. Specifically, the drive actively monitors for thermal overloads, short circuits, and phase loss to prevent catastrophic motor failure. In addition to these safety features, the modular design allows for seamless integration into complex PLC architectures via multiple communication protocols. Because it supports various I/O expansion modules, the drive remains a versatile choice for continuous-duty applications in water treatment, HVAC systems, and material handling facilities.
