SKU: ATV212HD55N4

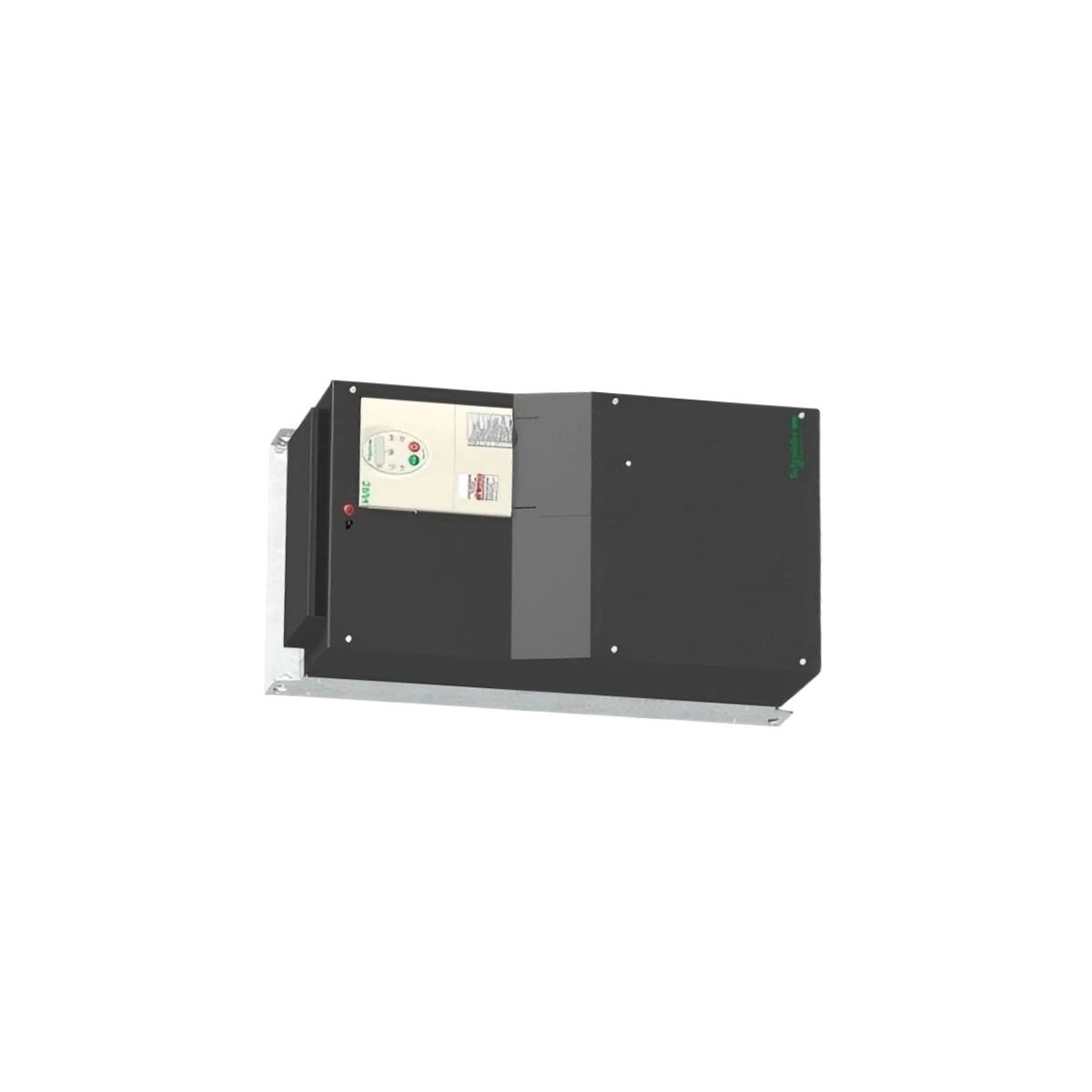

Schneider Electric Altivar 212 ATV212HD55N4 55kW Variable Speed Drive

The Schneider Electric ATV212HD55N4 is a 55kW (75HP) Variable Speed Drive engineered for high-efficiency HVAC applications. It features built-in BACnet/Modbus support, integrated EMC filtering, and energy-saving technology that reduces power consumption by up to 70% in building management systems.

Operational Overview and HVAC Specialization

The Schneider Electric ATV212HD55N4 functions as a dedicated frequency inverter within the Altivar 212 series, specifically optimized for heating, ventilation, and air conditioning (HVAC) systems. This high-capacity drive manages three-phase asynchronous motors with a substantial power rating of 55 kW (75 HP). By focusing on centrifugal load profiles, the unit provides superior fluid management while significantly lowering operational costs.

Engineered to operate within a 380V to 480V AC range, this drive enhances building automation efficiency. It integrates a specialized design that eliminates the requirement for line chokes or additional DC chokes, which simplifies installation and reduces the overall footprint within electrical rooms. Consequently, facility managers can achieve streamlined motor control without sacrificing electrical stability.

Key Technical Characteristics and Performance

Exceptional Energy Savings: The drive utilizes advanced energy-optimization algorithms to reduce power consumption by as much as 70% when compared to traditional motor starters.
Integrated Harmonic Suppression: Innovative technology minimizes harmonic distortion and thermal stress on cables, ensuring long-term infrastructure health.
Building Management Compatibility: Built-in communication protocols including BACnet, Modbus, METASYS N2, and APOGEE FLN facilitate immediate integration into modern BMS architectures.
Robust Environmental Protection: An IP21-rated enclosure combined with an integrated Class C2 EMC filter ensures the drive remains resilient against electromagnetic interference and dust.
High Performance in Vertical Mounts: The cooling system and structural design support vertical mounting inside control panels, maximizing space efficiency.

Primary Industrial and Building Applications

Because the ATV212HD55N4 prioritizes energy efficiency and specialized HVAC control, it serves as a critical component for:

Air Handling Units (AHU): Regulating fan speeds to maintain optimal indoor air quality.
Pumping Stations: Controlling water circulation and booster pumps in commercial complexes.
Cooling Towers: Managing large-scale heat exchange fans with precision.
Compressor Control: Optimizing suction and discharge pressure in industrial refrigeration units.
