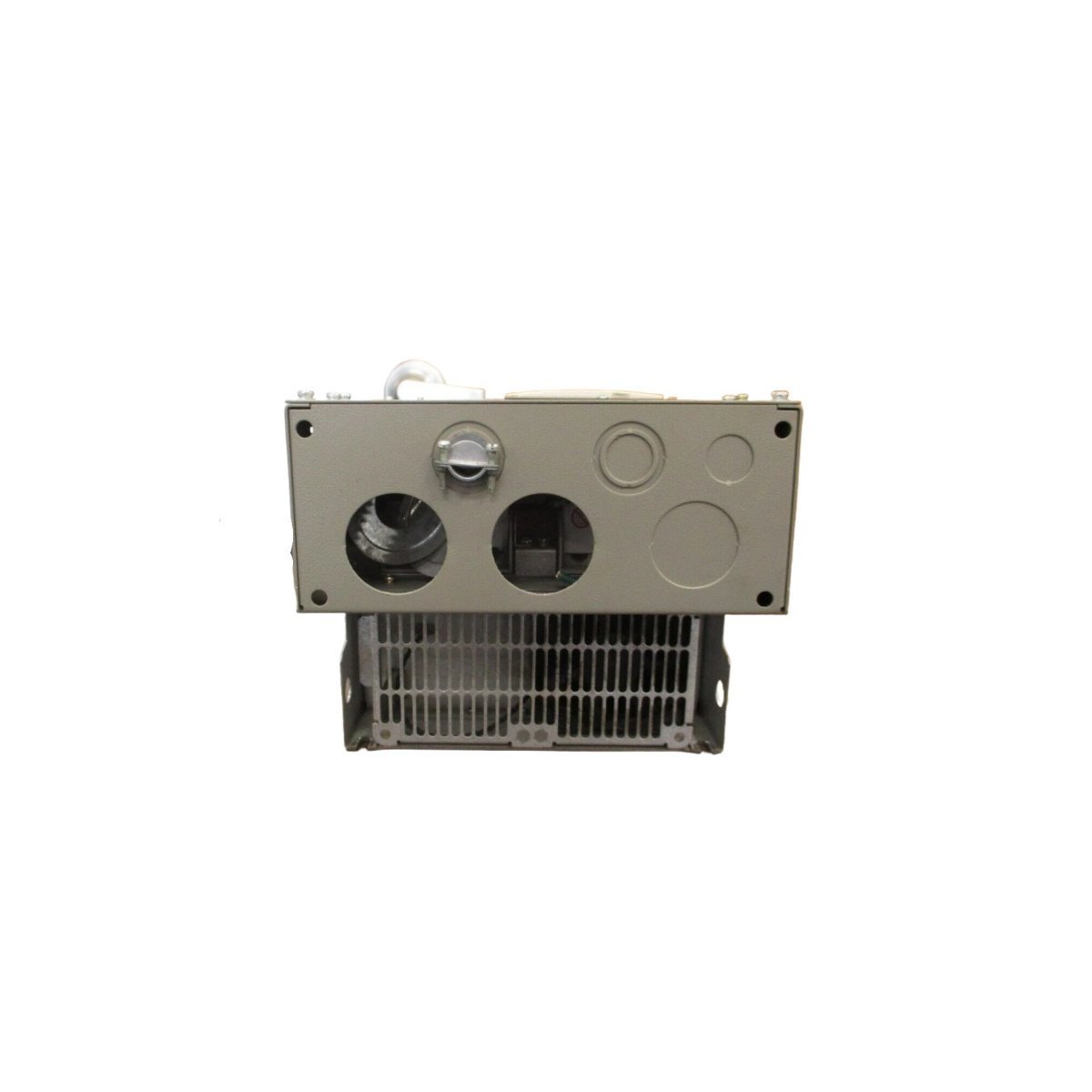

Schneider Electric ATV212HD22N4 Variable Speed Drive

Technical Overview

The Schneider Electric ATV212HD22N4 operates as a dedicated Variable Speed Drive (VSD) within the Altivar 212 series, specifically optimized for HVAC (Heating, Ventilation, and Air Conditioning) applications. This module functions as a sophisticated controller for three-phase asynchronous motors with a power rating of 22 kW (30 hp). Because the Altivar 212 architecture focuses on centrifugal loads, it eliminates the need for braking resistors and complex motor chokes in most fan and pump installations. By utilizing advanced energy-saving algorithms, this drive reduces building operating costs by aligning motor performance with real-time hydraulic or pneumatic demand.

Operational Logic and Building Integration

The ATV212HD22N4 manages motor speed through a specialized “Reduced Capacitance” technology, which significantly minimizes current harmonics without the need for additional bulky filters. To facilitate seamless building automation, the drive incorporates multiple communication protocols, including BACnet, Modbus RTU, METASYS N2, and APOGEE FLN, as standard features. Furthermore, the unit includes an integrated PID regulator to manage variables such as pressure, flow rate, and temperature. Moreover, since the drive supports a “Sleep/Wake” function, it automatically de-energizes the motor during low-demand periods to maximize energy efficiency.

To further enhance system reliability, the ATV212HD22N4 utilizes specialized protection features designed to prevent common HVAC failures, such as “Broken Belt” detection and pump cavitation monitoring. In addition to its software intelligence, the module features a robust thermal design that allows it to operate in the restricted airflow environments typical of mechanical rooms. Consequently, the drive provides extensive diagnostic capabilities, allowing facility managers to identify motor overloads or phase losses via the remote display terminal. As a result, the ATV212HD22N4 serves as a high-efficiency solution for managing large-scale air handling units and pumping stations in commercial and industrial buildings.

Key Technical Characteristics

• Brand: Schneider Electric
• Model Number: ATV212HD22N4
• Product Series: Altivar 212 (HVAC Dedicated)
• Motor Power: 22 kW (30 hp)
• Input Voltage: 380 to 480 V AC (Three-Phase)
• Output Current: 43.5 A (at 480 V)
• Communication Protocols: BACnet, Modbus, METASYS N2, APOGEE FLN
• Protection Rating: IP21 / UL Type 1
• Integrated Filter: Class C2 EMC Filter
• Control Logic: 2-wire / 3-wire control and PID regulator

Primary Applications

• Controlling large centrifugal fans in commercial air handling units (AHU).
• Managing circulating pumps in closed-loop chilled water systems.
• Operating cooling tower fans in industrial refrigeration plants.
• Regulating intake and exhaust ventilation in underground parking structures.
• Providing energy-efficient motor control for secondary pumping stations.
