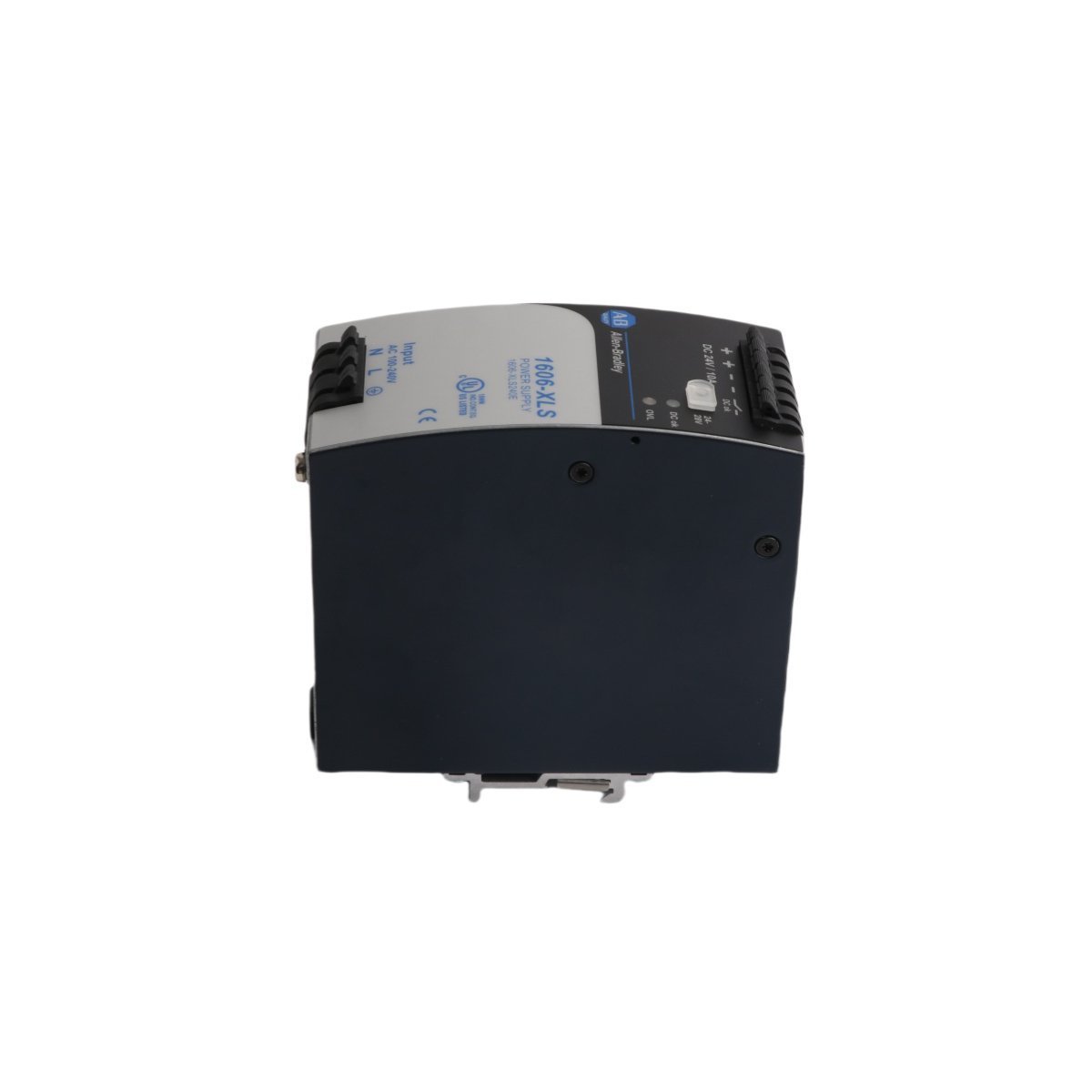

Allen Bradley 1606-XLS240E Performance Power Supply

Request a Quote

The Allen Bradley 1606-XLS240E, also cataloged as the 1606-XLS240E Performance Power Supply, operates as a dedicated hardware component for power conversion and voltage regulation within industrial control networks.

Hardware Specifications

ParameterSpecification
Model1606-XLS240E
BrandAllen Bradley
OriginUSA
Weight0.9 kg
Dimensions6 x 12.3 x 13 cm
Operating Temp-25 deg C to 70 deg C
Power Consumption240 W output rating

Profinet and EtherNet/IP Deterministic Networks

The power supply unit maintains stable backplane bus communication velocity and supports firmware flash compatibility across integrated automation nodes. Operating within deterministic network environments, the module delivers consistent DC voltage distribution while managing transient loads. High-speed switching topologies and low EMI emissions ensure that control data streams across connected Profinet and EtherNet/IP architectures remain uncorrupted by electrical noise.

Frequently Asked Questions

Q: What are the input voltage tolerances for this power supply model?

A: The unit accepts standard industrial AC input ranges and incorporates built-in surge voltage protection limits to safeguard internal rectification circuits against grid anomalies.

Q: How is thermal dissipation handled during maximum continuous load operations?

A: Thermal management relies on natural convection cooling, requiring adequate vertical clearance above and below the housing to maintain specified operating temperature profiles without forced airflow.

Field Installation Guidelines

Mount the unit securely onto a standard DIN-rail inside the control cabinet, ensuring sufficient clearance for convection cooling airflow. Connect incoming AC mains and protective earth conductors to the designated terminals in accordance with local electrical safety codes. Verify output voltage at the screw terminals using a calibrated multimeter before connecting downstream PLC loads.
