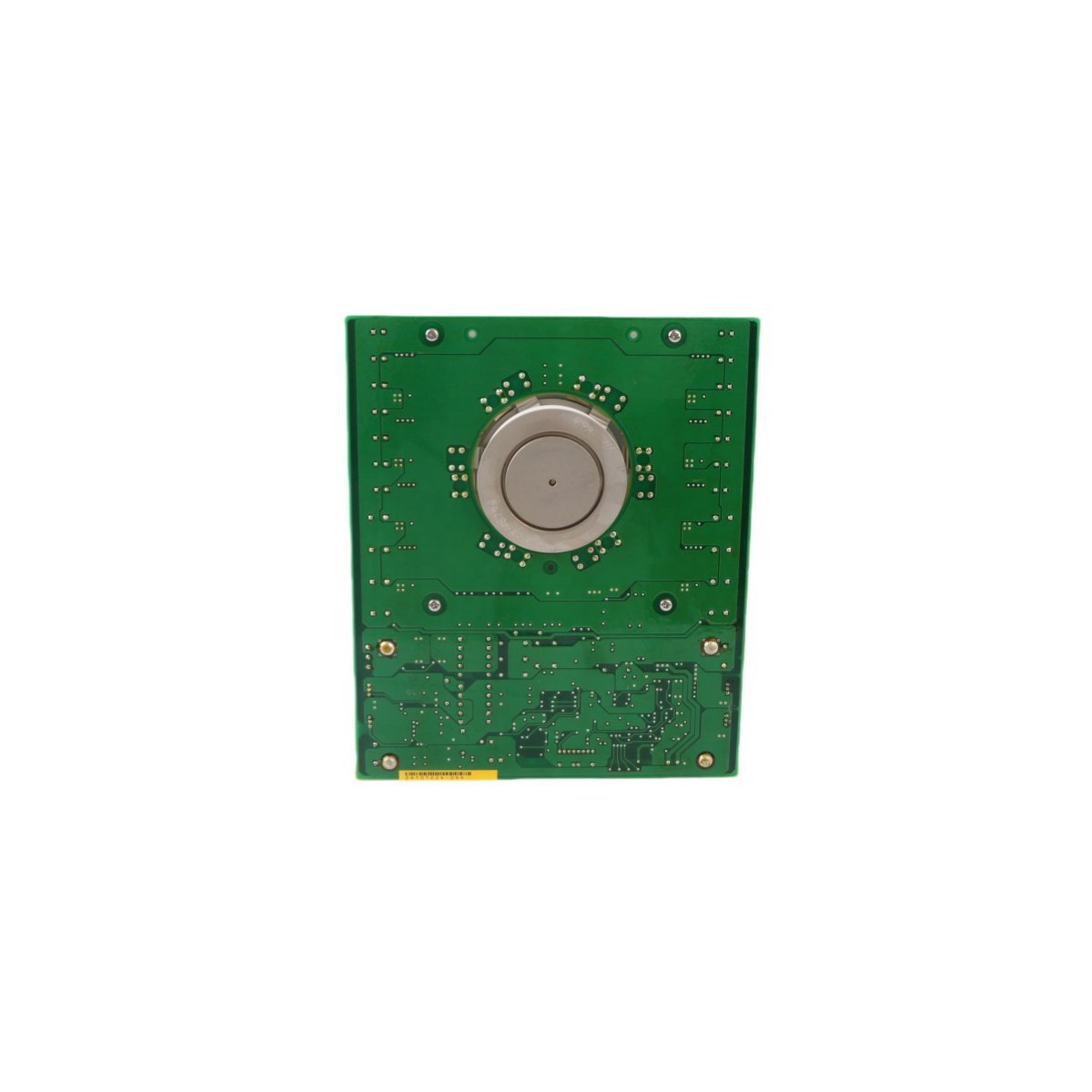

Allen Bradley 81001-450-52-R Power Block Drive

The Allen Bradley 81001-450-52-R Power Block Drive, also cataloged as the 81001-450-52-R Power Block Drive, operates as a dedicated hardware component for power distribution and conversion within PLC platform networks.

Hardware Specifications

ParameterSpecification
Model81001-450-52-R
BrandAllen Bradley
OriginUSA
Weight1.14 kg
Dimensions25 x 20.7 x 5.5 cm
Operating TempStandard Industrial Range
Power ConsumptionSystem Dependent
Module TypePower Block Drive

PLC Deterministic Network Integration

The Allen Bradley 81001-450-52-R utilizes backplane bus communication protocols designed for integration with PLC control architectures. The module supports deterministic network timing, ensuring low-latency power state feedback and synchronization within complex I/O density configurations. Compatibility with field-programmable firmware allows for flash updates to align with evolving backplane bus communication velocity requirements, maintaining bus traffic integrity and reducing collision potential in high-speed control loops.

Frequently Asked Questions

Q: What are the restrictions regarding the installation of the 81001-450-52-R in a redundant power rack?

A: Ensure that the backplane bus address is correctly configured to prevent signal collisions. Redundant power configurations must be verified for voltage matching before closing the primary disconnect.

Q: Is this module capable of firmware field-upgrades?

A: Yes, the unit supports firmware flash compatibility via the primary control bus. Consult the PLC backplane interface documentation for current revision requirements.

Field Installation Guidelines

  • Mount the module onto a standard metal DIN-rail. Ensure the rail is bonded to the cabinet chassis ground to minimize EMI.
  • Maintain a minimum clearance of 50 mm above and below the unit to allow for passive thermal heat dissipation.
  • All power input cabling must utilize shielded twisted-pair conductors to prevent common-mode noise injection into the PLC backplane.
  • Verify that the 24 VDC output load does not exceed the continuous current rating specified for the associated PLC power bus segment.
  • Ensure the connector interface is fully seated until a tactile lock is achieved to prevent intermittent contact resistance.
