SKU: 1492-IFM20F-F120A-2

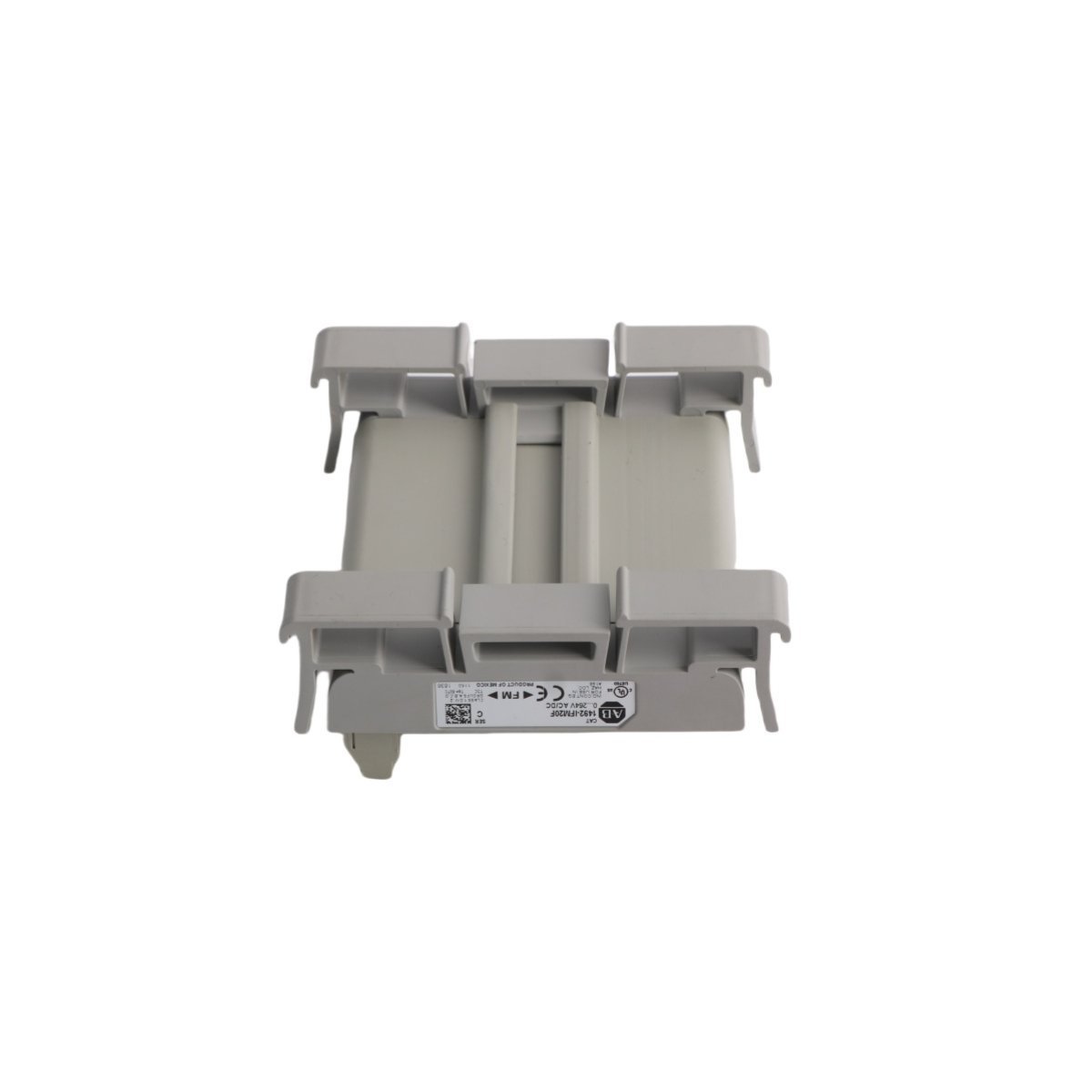

Allen-Bradley 1492-IFM20F-F120A-2 Fusible Digital Termination Module

The Allen-Bradley 1492-IFM20F-F120A-2 is a 20-point fusible termination module featuring 120V AC/DC blown-fuse indicators and group isolation. It provides robust circuit protection and simplified field wiring for industrial PLC systems.

System Integration and Circuit Protection

The Allen-Bradley 1492-IFM20F-F120A-2 serves as a high-performance digital interface solution designed to streamline the wiring process between field devices and PLC I/O modules. This termination module incorporates 20 distinct points and utilizes a feed-through architecture to facilitate efficient signal routing. By integrating $5 \times 20\text{mm}$ fuse clips directly into the assembly, the module provides localized circuit protection, which prevents overcurrent conditions from damaging expensive controller hardware. Furthermore, the unit features built-in 120V AC/DC neon indicators that illuminate when a fuse blow occurs, allowing maintenance personnel to identify and rectify faults without extensive troubleshooting.

Operational Safety and Versatility

This interface module excels in complex industrial environments where safety and reliability remain paramount. The 1492-IFM20F-F120A-2 employs a finger-safe housing design that protects operators from accidental contact with live circuits. Additionally, the internal power bus is divided into two separate groups of ten terminals each. This group isolation allows engineers to reference different power sources within the same module, providing significant flexibility for diverse field-side requirements. To ensure signal integrity, the device maintains $250\text{V AC}$ isolation between the logic-side circuitry and the field-side wiring, effectively blocking electrical noise and transients from disrupting the control system.

Installation and Logistics

With a compact footprint of $7.6 \times 7.6 \times 12.7\text{cm}$ , the 1492-IFM20F-F120A-2 minimizes the space required within automation cabinets. The module mounts easily to standard DIN rails, which accelerates the installation phase of a project. While the hardware includes all necessary fuse holders and indicators, users must install the specific $5 \times 20\text{mm}$ fast-acting fuses required for their specific application. This module supports a nominal input voltage of 12-24V DC and consumes a mere $100\text{mA}$ from the backplane at 5V DC, ensuring that it remains an energy-efficient addition to any ControlLogix or similar PLC architecture.
