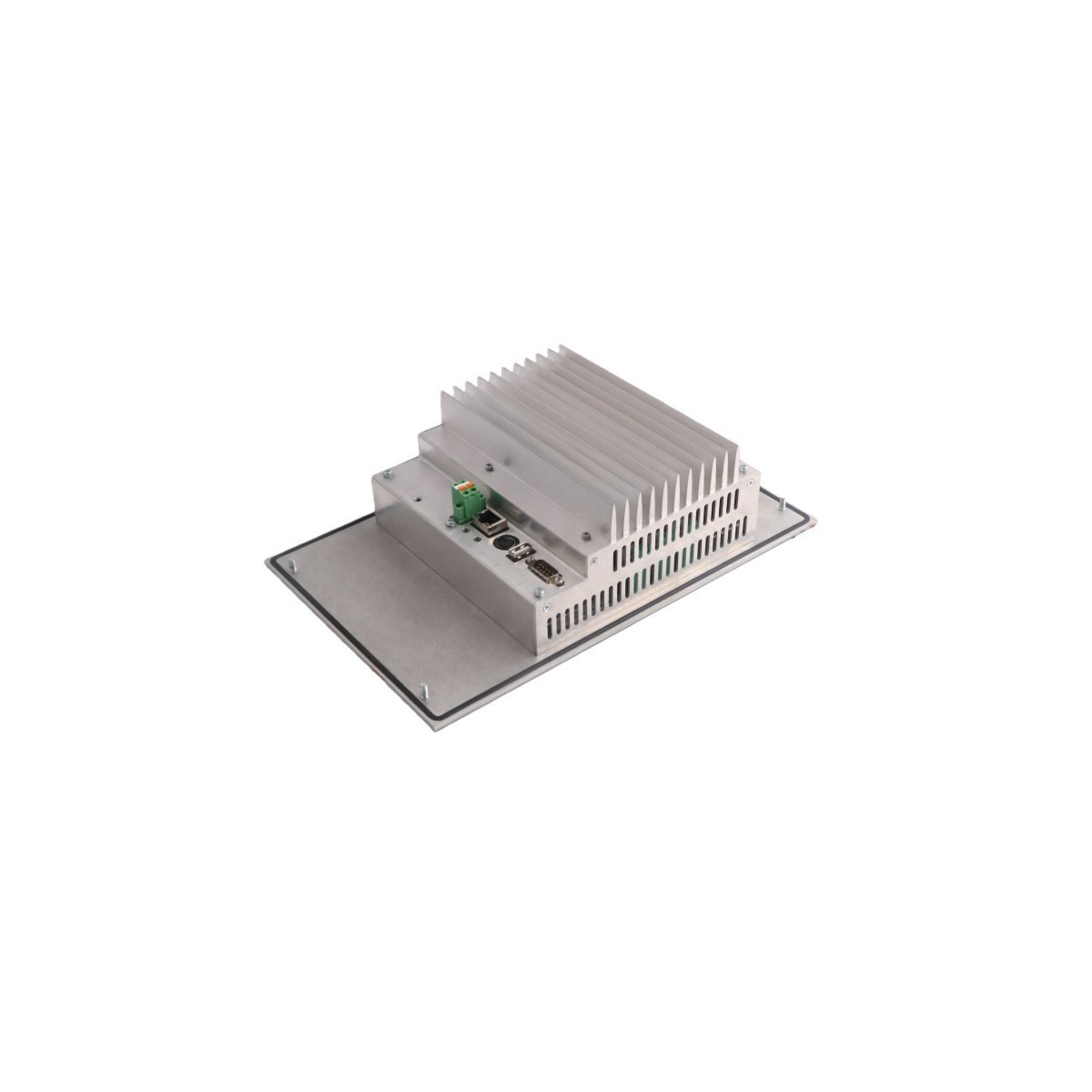

Bachmann LX700/DD256/CF512MB M1 Central Processor Control Module

Primary System Role

The Bachmann LX700/DD256/CF512MB serves as a high-performance central processing core within the M1 automation environment. By utilizing a powerful Pentium-class processor, this module manages complex control tasks, high-speed logic execution, and extensive data processing requirements. Equipped with 256MB of RAM and 512MB of CompactFlash storage, the unit provides the necessary resources for demanding applications such as wind turbine control, maritime automation, and industrial grid management. Because it acts as the master controller, the LX700 coordinates all backplane communication and network data exchange with millisecond-level precision.

Enhanced Technical Performance

• Ensures Real-Time Determinism: The module operates on the VxWorks real-time operating system. In doing so, it guarantees that time-critical tasks—such as motion control and safety monitoring—are executed with absolute consistency and minimal jitter.
• Optimizes Data Management: The integrated 512MB CompactFlash card handles the storage of the operating system, user applications, and extensive log files. As a result, the system can perform local data buffering, which effectively prevents data loss during periods of network instability.
• Simplifies Network Integration: The board features multiple onboard interfaces, including dual Ethernet and serial ports. Consequently, the CPU facilitates high-bandwidth communication between the machine level and supervisory SCADA systems without requiring additional gateway modules.
• Enhances System Reliability: Beyond standard processing, the LX700 includes advanced self-diagnostic features and bus monitoring. Therefore, it can detect hardware anomalies or I/O faults instantly, allowing the system to trigger failsafe protocols and minimize process downtime.
• Withstands Harsh Environments: Furthermore, this specific hardware configuration is designed for longevity in industrial settings. By utilizing passive cooling and industrial-grade memory, the module maintains high stability even when subjected to the continuous vibration and thermal fluctuations of an engine room or nacelle.

Technical Specifications

• Model Identifier: LX700/DD256/CF512MB
• Processor Architecture: Pentium-class high-speed industrial CPU
• Operating System: VxWorks (Real-time OS)
• Working Memory (RAM): 256 MB DDR SDRAM
• Storage Memory (CF): 512 MB CompactFlash (Industrial Grade)
• Networking Ports: 2x Ethernet (10/100/1000 Mbit/s)
• Serial Interfaces: 1x RS-232 (COM1); 1x RS-232/422/485 (Configurable)
• Status Display: Multi-character 7-segment LED for fault codes and status
• Backup Battery: Integrated for Real-Time Clock (RTC) and Retain Data
• Operating Temperature: 0 °C to +60 °C
