Honeywell 10012/1/2 Fail-Safe Central Processing Unit
Sale!
SKU: 10012-1-2

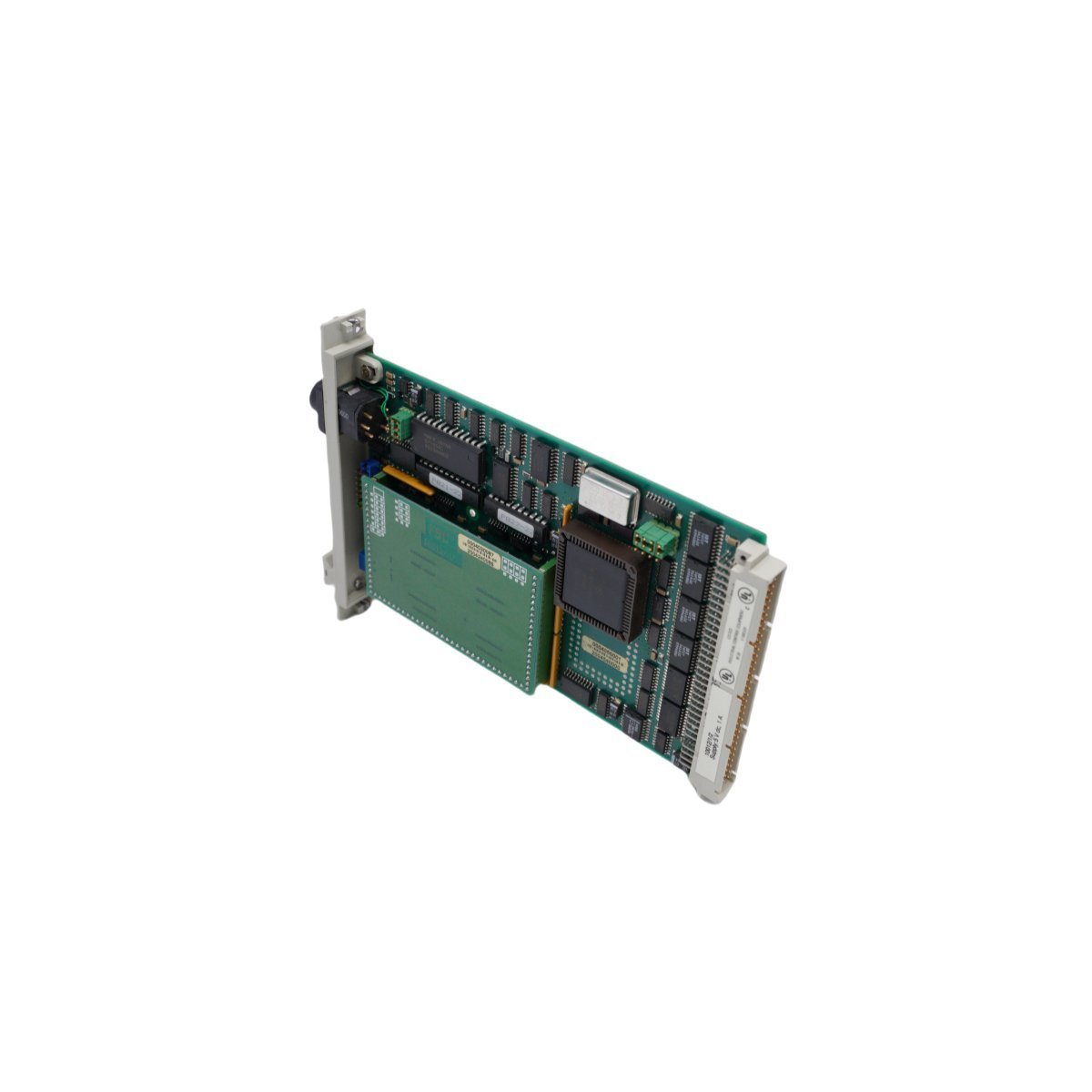

Honeywell 10012/1/2 Fail-Safe Central Processing Unit
The Honeywell 10012/1/2 is a high-performance Central Processing Unit for Fail-Safe Controller (FSC) systems.It delivers reliable safety logic execution, hardware redundancy support, and comprehensive diagnostics for critical industrial safety functions.
The Honeywell 10012/1/2 is a high-availability Central Processing Unit designed specifically for the Fail-Safe Controller (FSC) system. This module serves as the primary intelligence of the safety system, executing complex logic programs to manage critical interlocks and emergency shutdown (ESD) functions. Consequently, the CPU architecture is optimized for safety-critical environments where deterministic performance and high-speed signal processing are mandatory to prevent industrial accidents.
Furthermore, the 10012/1/2 CPU incorporates extensive self-diagnostic routines that verify the integrity of the internal memory and arithmetic logic units in real-time. Because the system operates on a “fail-safe” principle, any detected internal hardware discrepancy immediately triggers a predefined safe state. Additionally, this CPU supports redundant “Dual” or “Quad” configurations. Therefore, if a primary processor encounters a fault, the standby unit assumes control without a “bump” in the process, ensuring continuous protection for high-value assets.
Moreover, the module facilitates seamless communication with I/O subsystems and higher-level Distributed Control Systems (DCS) through dedicated bus interfaces. Due to its ruggedized construction, it maintains stable operation despite the electrical noise and temperature variations common in industrial control rooms. By integrating the 10012/1/2 into a safety framework, operators achieve a robust defense layer that complies with international safety standards (SIL), providing the reliability required for oil, gas, and chemical processing plants.
Key Technical Specifications
Manufacturer: Honeywell
Model Number: 10012/1/2
Product Category: Central Processing Unit (CPU)
System Compatibility: Honeywell FSC (Fail-Safe Controller) System
Processor Type: High-performance microprocessor for safety logic
Redundancy Support: Compatible with redundant processor configurations
Memory Type: Non-volatile memory for logic and configuration storage
Diagnostic Capabilities: Integrated watchdog timers and memory parity checks
Operating Temperature: Industrial grade (0 to 60 °C)
Application Focus: Emergency Shutdown (ESD) and Fire & Gas (F&G) systems
