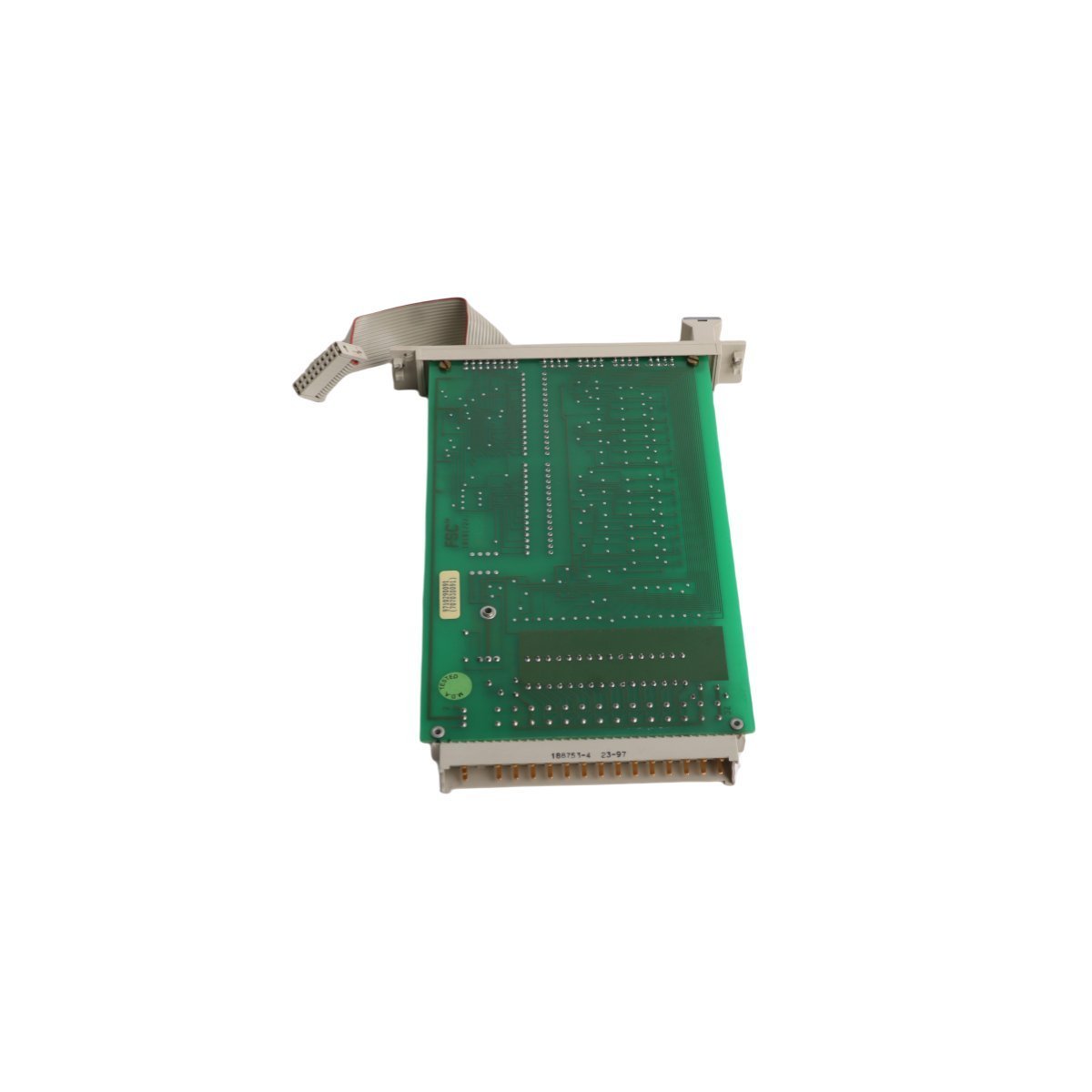

Honeywell 10104/2/1 Digital Input Module

The Honeywell 10104/2/1 is a high-reliability digital input module for Fail Safe Control (FSC) systems. It provides safety-critical monitoring for discrete field devices in emergency shutdown and fire detection applications.

Request a Quote

The Honeywell 10104/2/1 serves as a high-integrity interface within the Fail Safe Control (FSC) system. This module manages discrete signal acquisition for critical safety-related processes. It translates electrical states from field switches into logical data for the central controller. Because it belongs to the FSC family, it maintains strict functional safety standards. The hardware supports high-speed signal processing to ensure rapid emergency responses. Consequently, this module remains a foundational component for SIL-rated industrial safety loops.

Operational Features and Reliability

  • Discrete Monitoring: The card tracks the open or closed status of various field-side contacts.
  • Integrated Diagnostics: Internal circuits continuously verify hardware health to prevent undetected failures.
  • Safety-Critical Design: Every channel follows fail-safe logic to protect personnel and assets.
  • Galvanic Isolation: Robust electrical barriers protect the internal bus from field-side surges.
  • Low Power Consumption: The efficient circuitry minimizes heat generation within the control cabinet.
  • Real-time Feedback: Status indicators provide instant visual confirmation of input activity.

Industrial Safety Applications

Engineers implement the 10104/2/1 in environments where system uptime is vital. It monitors emergency stop buttons and gate switches in manufacturing plants. Furthermore, petrochemical facilities use this module for burner management systems. The module also facilitates fire and gas detection by monitoring field sensors. Its ultra-light 0.12kg design allows for high-density installation in limited rack spaces. Since it withstands harsh industrial conditions, it performs reliably in extreme temperatures.

Hardware Specifications

FeatureDetails
ManufacturerHONEYWELL
Model Number10104/2/1
System Product LineFSC (Fail Safe Control)
Device CategoryDigital Input Interface
Unit Weight0.12 kg
Physical Dimensions2 x 18.8 x 12.7 cm
Manufacturing OriginUSA

Maintenance and Lifecycle Support

This module features a modular architecture to simplify long-term maintenance. Operators can easily replace the hardware during routine system audits. While Honeywell discontinued the FSC line in late 2018, this part remains available as a critical spare. It integrates seamlessly with existing safety racks without requiring software modifications. Maintaining a stock of these genuine modules prevents extended downtime during hardware failures. The 10104/2/1 continues to support the operational life of legacy DCS infrastructure worldwide.
