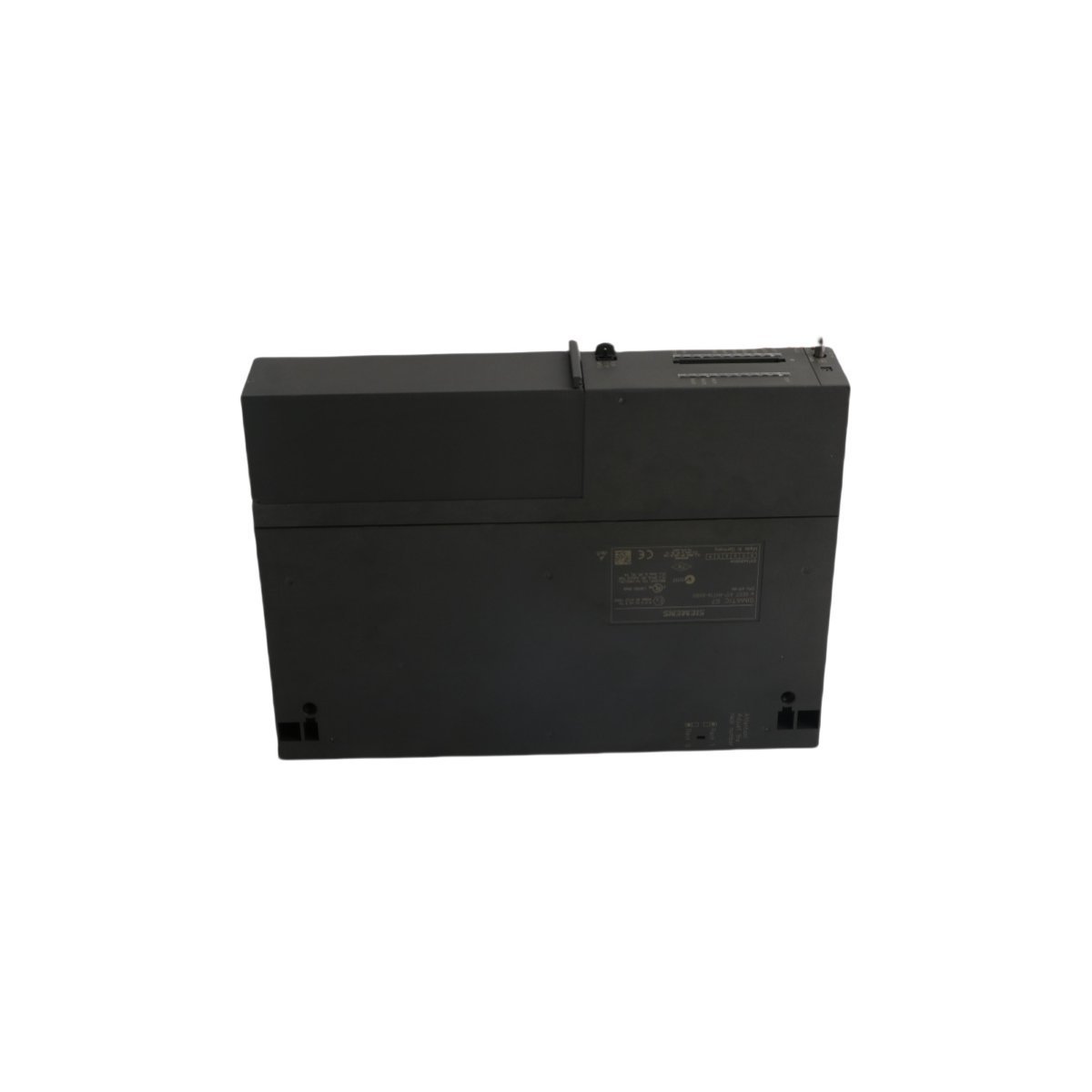

Siemens 6ES7417-4HT14-0AB0 Central Processing Unit

The Siemens 6ES7417-4HT14-0AB0 is a fault-tolerant CPU 417-4H for SIMATIC S7-400H systems. Featuring 30MB work memory and dual sync interfaces, this 0.98kg unit provides maximum reliability for mission-critical industrial automation.

Request a Quote

The Siemens 6ES7417-4HT14-0AB0 stands as a premier CPU in the SIMATIC S7-400H family. Engineers specifically design this controller for high-availability and fault-tolerant industrial systems. It provides the necessary processing power for complex automation architectures. Because the unit supports redundant configurations, it prevents costly system downtime. This controller manages large-scale data processing while maintaining strict synchronization. Consequently, it serves as the backbone for critical infrastructure projects worldwide.

Technical Specifications

FeatureDetails
ManufacturerSiemens
Model Number6ES7417-4HT14-0AB0
Product TypeCentral Processing Unit (CPU 417-4H)
Work Memory30 MB (15MB Program / 15MB Data)
Interfaces1x MPI/DP, 1x PROFIBUS DP, 2x Sync Slots
Dimensions5.0 x 22.2 x 29.0 cm
Unit Weight0.98 kg
Bit Performance0.018 µs for binary operations

Key Technical Characteristics

The CPU 417-4H features an expansive 30 MB integrated work memory. This capacity allows for intricate control algorithms and extensive data storage. Furthermore, the unit includes four distinct communication interfaces for versatile networking. The dual synchronization slots permit direct fiber-optic coupling between redundant pairs. This hardware ensures that both processors remain identical in state. Additionally, the rugged housing withstands significant mechanical stress and thermal fluctuations. The controller also supports hot-swapping of modules within a powered rack.

Application and Redundancy Benefits

  • Large-scale power generation and distribution facilities.
  • Complex chemical and petrochemical processing plants.
  • Critical water and wastewater treatment infrastructure.
  • High-speed manufacturing lines requiring zero-stop performance.
