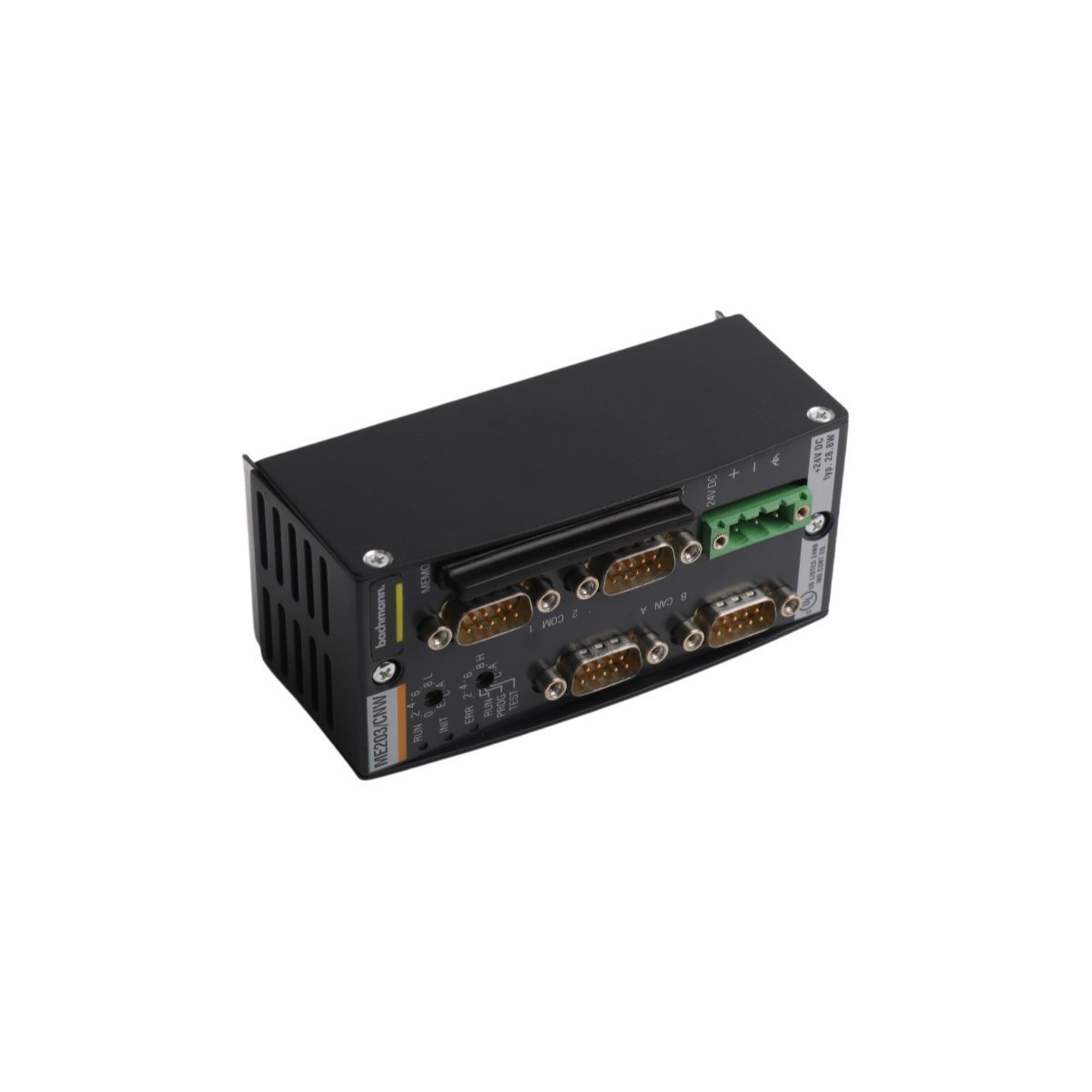

Bachmann ME203/CNW Central Processor Module M1 Automation System

Primary System Role

The Bachmann ME203/CNW functions as the high-performance central processing unit (CPU) within the M1 automation platform. Specifically, this module executes complex real-time applications and manages the entire backplane communication for attached I/O modules. By integrating a powerful processor with extensive memory capacity, the ME203/CNW handles simultaneous tasks—ranging from high-speed logic execution to sophisticated motion control and data logging. Because it features the “CNW” designation, this variant includes specialized communication interfaces that allow the controller to integrate seamlessly into diverse industrial network topologies.

Enhanced Technical Performance

• Delivers Deterministic Execution: The ME203/CNW utilizes a real-time operating system (VxWorks). In doing so, it ensures that critical control tasks are processed with sub-millisecond precision, which is vital for synchronized wind turbine or maritime control.
• Maximizes Network Connectivity: The board features multiple embedded interfaces, including Ethernet and serial ports. As a result, the CPU coordinates data exchange with HMIs, SCADA systems, and other PLCs without requiring additional communication hardware.
• Ensures Data Security: The hardware includes an onboard microSD card slot for program storage and data logging. Consequently, the controller can recover its full operating environment instantly after a power loss, effectively minimizing system downtime.
• Supports Robust Diagnostics: Beyond simple logic processing, the ME203/CNW performs continuous hardware self-checks and bus monitoring. Therefore, it provides maintenance teams with detailed error logs and status reports, facilitating rapid troubleshooting of field-level faults.
• Withstands Extreme Climates: Furthermore, like other M1 components, this CPU is available in a “ColdClimate” (CC) version. By utilizing these reinforced components, the module remains operational in harsh environments where temperatures drop to -30 °C, making it a staple in the renewable energy sector.

Technical Specifications

• Model Identifier: ME203/CNW
• Core Processor: Industrial-grade high-performance CPU
• Operating System: Real-time VxWorks support
• Program Memory: High-capacity integrated RAM (typically 128MB or higher depending on revision)
• Non-volatile Storage: Integrated Flash and microSD card slot
• Communication Interfaces: 1x Ethernet (10/100 Mbit), Serial (RS-232/RS-485), CAN bus (model specific)
• Cycle Time: Capable of processing tasks in the microsecond range
• Status Display: Multi-segment LEDs and 7-segment display for error codes
• Galvanic Isolation: 500 V between system and communication interfaces
• Operating Temperature: 0 °C to +60 °C
• Power Supply: Via system backplane
