Bently Nevada 135473-01 Keyphasor I/O Module

Technical Specification Overview

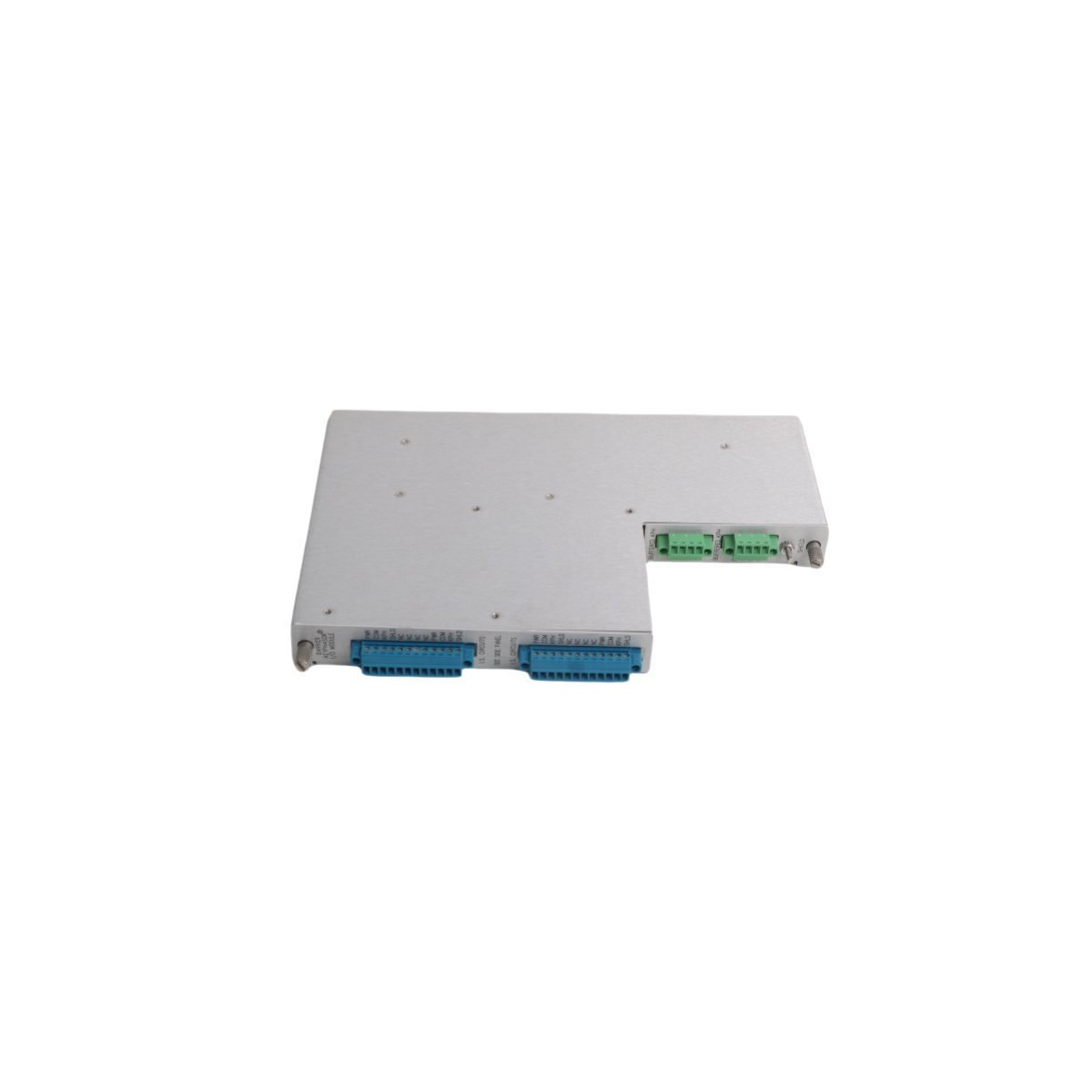

The Bently Nevada 135473-01 serves as a high-integrity Input/Output interface for the 3500 Machinery Protection System. This module specifically processes Keyphasor signals, which provide essential timing and phase reference data for rotating machinery. By utilizing 316L stainless steel for its case material, the 135473-01 delivers exceptional resistance to corrosive agents and extreme environmental stress. Consequently, this module ensures that the monitoring system receives stable, high-accuracy phase pulses even in the most aggressive industrial atmospheres.

Design and Functional Capabilities

Engineers optimized the 135473-01 for seamless integration with the 3500/25 Enhanced Keyphasor Module. This I/O component features internal terminations and integrated barriers, which simplify field wiring while maintaining intrinsic safety standards. Furthermore, the 316L stainless steel construction provides superior durability compared to standard materials. Because it supports rapid signal response times, the module enables the 3500 system to calculate precise shaft speeds and vector parameters during rapid machine transients.

• Manufacturer: Bently Nevada
• Model Number: 135473-01
• Module Type: Keyphasor I/O with Internal Barriers
• System Series: 3500 Machinery Protection System
• Case Material: 316L Stainless Steel
• Termination Style: Internal (Direct screw terminals)
• Signal Support: Proximity probes and magnetic pickups
• Frequency Range: Up to 20,000 RPM (Input dependent)
• Operating Temperature: -40°C to +85°C
• Net Weight: 0.96 kg
• Dimensions: 2.5 x 18.5 x 14.0 cm

Operational Impact and Industrial Applications

This Keyphasor I/O module actively drives sophisticated machinery diagnostics by providing the necessary “Once-Per-Turn” reference signal. Maintenance teams rely on this data to perform orbit analysis, Bode plots, and polar plots. Moreover, the robust stainless steel housing protects the internal electronics from salt spray and chemical vapor ingress. Therefore, the module maintains operational uptime in facilities where standard hardware might corrode or fail prematurely.

Primary industrial applications include:

• Offshore Oil Platforms: Resisting saltwater corrosion while monitoring subsea pump phase angles.
• Chemical Processing Plants: Protecting critical signal paths from acidic or caustic vapors.
• Power Generation Facilities: Providing timing references for large-scale steam and gas turbine rotors.
• Refining Operations: Monitoring high-speed centrifugal compressors in hazardous process zones.

Mechanical Integrity and Reliability

Bently Nevada employs 316L stainless steel to guarantee the 135473-01 withstands the rigors of heavy industrial use. This material choice effectively eliminates the risk of stress-corrosion cracking and pitting in humid or chemical-laden environments. Additionally, the internal barrier design limits the electrical energy delivered to the transducers in the field. This safety feature allows the module to interface directly with sensors located in explosive atmospheres without requiring external isolators. The combination of structural strength and electronic precision makes this module a cornerstone of long-term plant safety.
