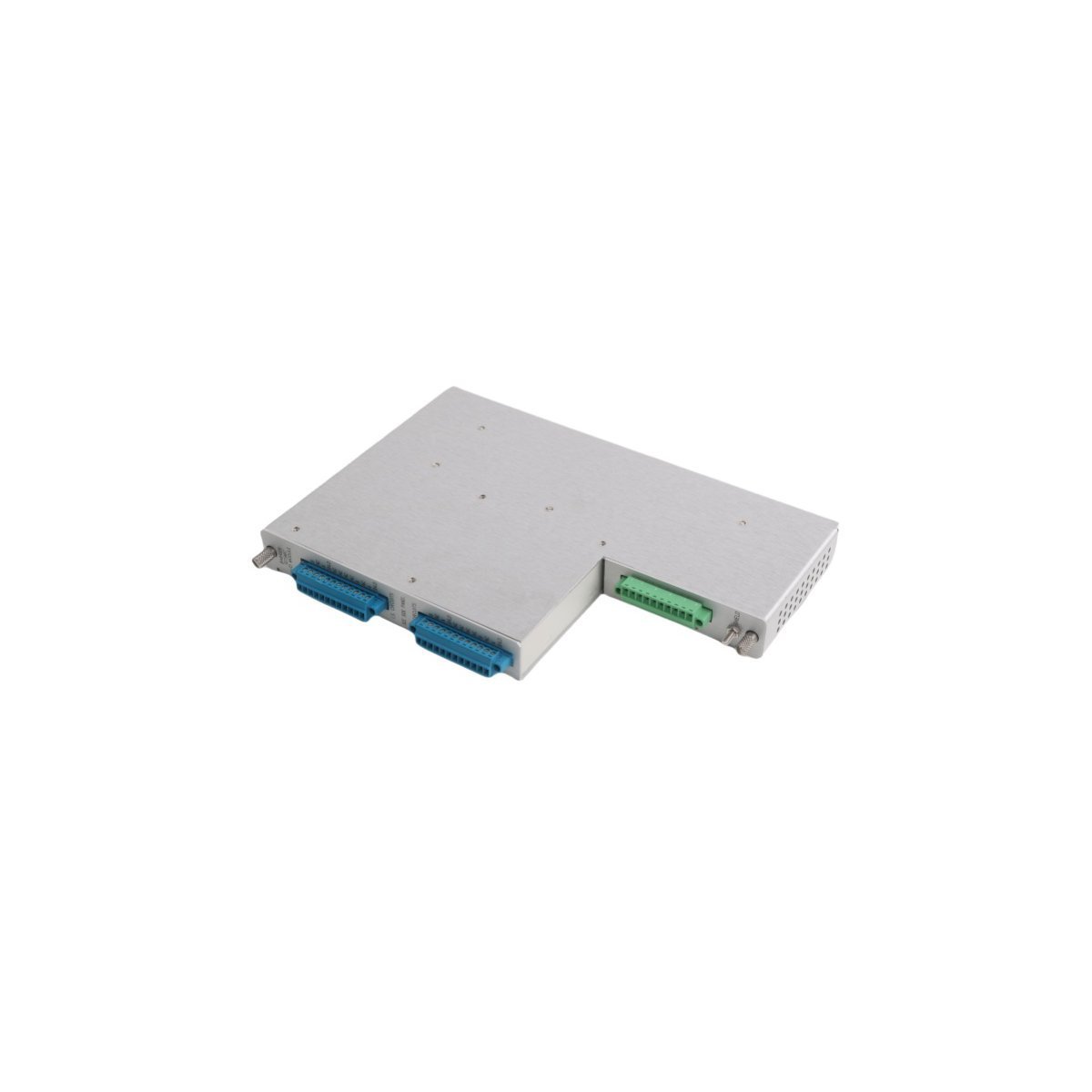

Bently Nevada 135489-03 3500/70M Reciprocating Storage I/O Module

Bently Nevada 135489-03 3500/70M Reciprocating Storage I/O Module

Technical Role and System Function

The Bently Nevada 135489-03 serves as the specialized I/O interface for the 3500/70M Reciprocating Machinery Monitor. Unlike standard vibration modules, this component facilitates the unique data acquisition needs of reciprocating compressors, such as rod drop, rod position, and crank angle measurements. By providing the physical connection points for transducer signals, the module enables the 3500 system to capture high-speed dynamic data. Consequently, maintenance teams can monitor the mechanical health of compressor valves and rider bands with extreme precision.

Key Technical Specifications

• Manufacturer: Bently Nevada
• Part Number: 135489-03
• Module Type: 70M Reciprocating Storage I/O Module
• System Series: 3500 Machinery Protection System
• Mounting: Installs in the rear of the 3500 rack
• Internal Terminations: Supports standard wiring for proximity probes and pressure transducers
• Operating Temperature: -40°C to +85°C
• Certifications: UL, CE, and CSA compliant for industrial use
• Storage Capacity: Enhanced buffer for high-resolution reciprocating data sets

Operational Features and Industrial Application

Engineers primarily deploy the 135489-03 in gas processing and refining facilities to safeguard reciprocating assets. Because reciprocating machinery generates complex vibration patterns, this module utilizes specialized buffering to store crank-angle-referenced data. Moreover, the unit provides internal termination points that simplify field wiring and reduce the need for external terminal blocks. This streamlined architecture protects sensitive signal paths from electromagnetic interference, thereby ensuring that the monitoring system receives clean, actionable data.

Installation and Maintenance Procedures

For a successful installation, technicians must seat the 135489-03 I/O module into the rear slot corresponding to the 3500/70M monitor card. Because this is a “Storage” version of the I/O, it significantly improves the system’s ability to handle the data bursts required for cylinder pressure analysis and rod displacement monitoring. Furthermore, the module’s “hot-swappable” design allows for replacement without powering down the entire 3500 rack, provided that redundant power supplies are active. This feature drastically minimizes downtime during critical maintenance windows.
