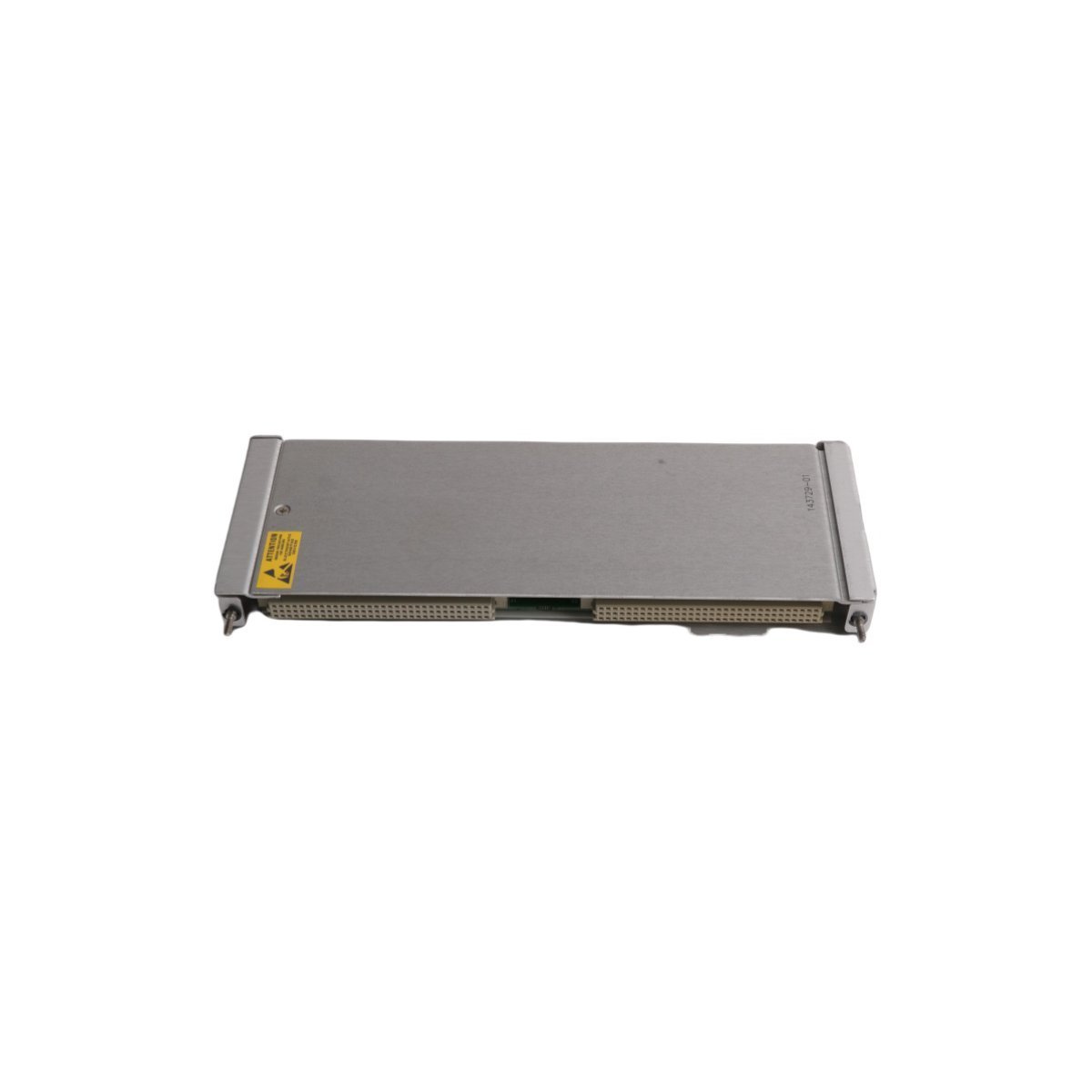

Bently Nevada 3500/77M-03-00 143729-01 Cylinder Pressure I/O Module
The Bently Nevada 3500/77M-03-00 (143729-01) is a 4-channel Cylinder Pressure I/O module with internal terminations. It provides critical pressure diagnostics and rod load monitoring for reciprocating compressors, ensuring API 670 compliance and high-temp reliability.
Comprehensive Reciprocating Compressor Protection
The Bently Nevada 3500/77M-03-00 drives high-performance monitoring for reciprocating machinery. This Cylinder Pressure I/O module, designated by part number 143729-01, interfaces directly with the 3500/77M Reciprocating Cylinder Pressure Monitor. By capturing high-speed pressure data throughout the entire stroke of the piston, the module enables the calculation of critical diagnostic parameters such as peak pressure, discharge pressure, and suction pressure. This real-time oversight empowers operators to detect valve leaks, piston ring failures, and rod load issues before they result in catastrophic mechanical damage.
Critical Technical Specifications
- Brand:Â Bently Nevada
- Model Number:Â 3500/77M-03-00
- I/O Part Number:Â 143729-01
- Module Type:Â Cylinder Pressure I/O with Internal Terminations
- Monitor Compatibility:Â 3500/77M Reciprocating Cylinder Pressure Monitor
- Input Channels:Â 4-channel support for pressure transducers
- Termination Style:Â Integrated screw terminals
- Agency Approval:Â Multi-agency hazardous area certifications
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- System Type:Â 3500 Machinery Protection System
Operational Advantages and Diagnostic Precision
The 143729-01 module advances predictive maintenance (PdM) for heavy-duty reciprocating compressors used in natural gas and chemical processing. The internal termination design streamlines installation by allowing field wiring to land directly on the module, eliminating the need for external terminal blocks. Furthermore, the 3500/77M system utilizes this high-fidelity signal to generate “Pressure-Volume” (PV) curves. These diagnostics provide the raw data necessary for:
- Monitoring Rod Load and Rod Reversal to prevent fatigue failure
- Calculating Adiabatic Efficiency for energy optimization
- Detecting broken valve springs and fouled valve ports
- Verifying compression ratios across multi-stage units
Installation and System Integration
Maintenance technicians install the 143729-01 in the rear slot of the 3500 rack, specifically behind the 3500/77M monitor card. This I/O module accepts signals from dynamic pressure transducers installed on the cylinder head or crank end. Because the module supports hot-swapping, teams can perform maintenance without disrupting the power or operation of the remaining 3500 system. The ruggedized internal terminations ensure high signal integrity in high-vibration compressor environments, providing the 3500 rack with a clean, noise-free data stream for advanced thermodynamic analysis and machinery protection.
