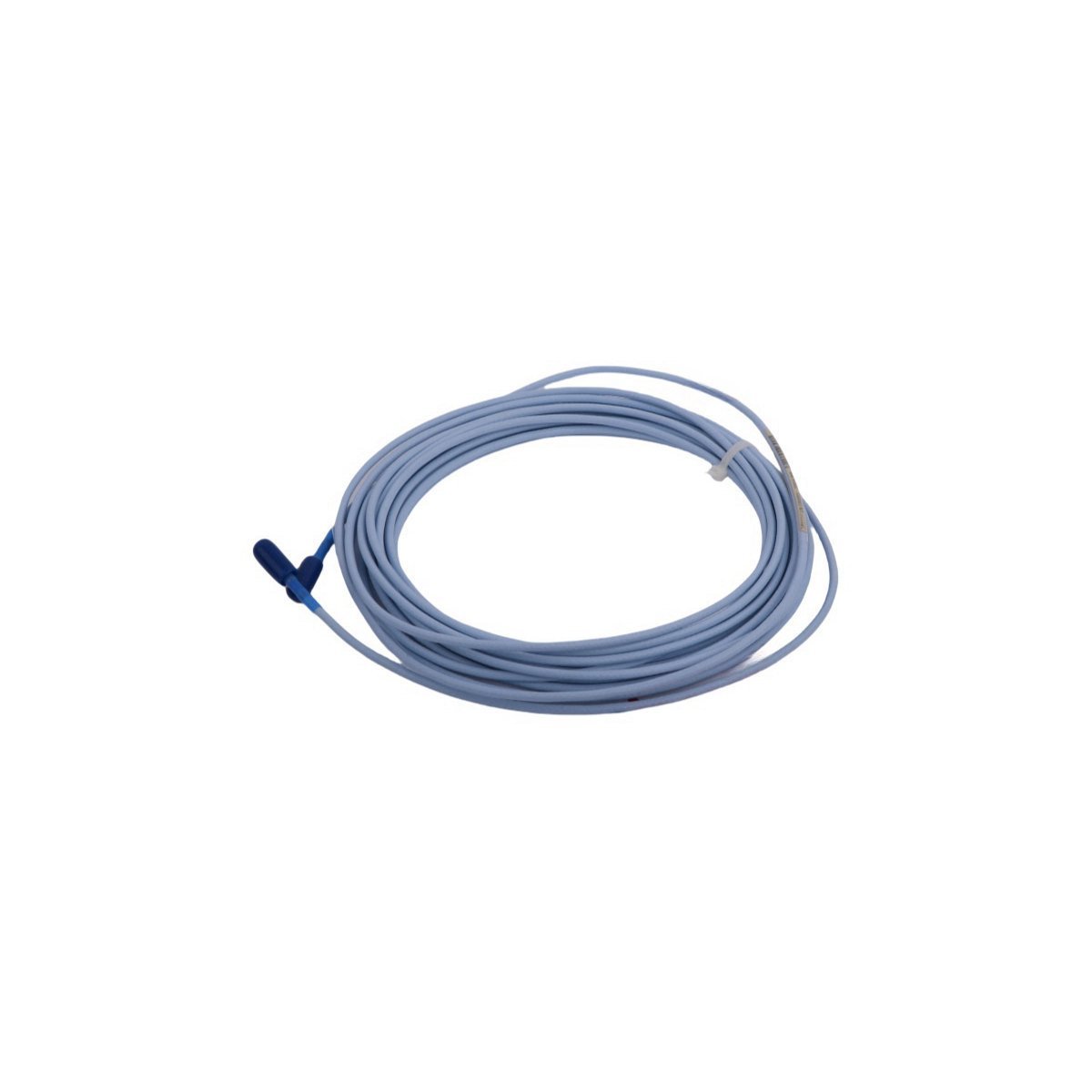

The Bently Nevada 330130-080-00-05 is an 8.0-meter extension cable for 3300 XL 8mm systems. It ensures precise signal transmission for critical machinery vibration monitoring.
The Bently Nevada 330130-080-00-05 serves as a high-fidelity link within the 3300 XL 8mm proximity transducer system. This extension cable connects the proximity probe to the Proximitor sensor for precise machinery diagnostics. It transmits critical eddy current signals with minimal interference or signal loss. Furthermore, the cable ensures the total electrical length of the transducer system remains accurate. This precision allows for the reliable measurement of vibration and position in high-speed rotating assets. Consequently, it supports the operational safety of expensive industrial machinery.
The 330130-080-00-05 utilizes premium insulation to withstand the harshest industrial climates. The FEP jacket provides exceptional resistance against moisture, oil, and corrosive chemicals. Additionally, the patented ClickLoc connectors prevent mechanical loosening during high-frequency vibration events. These gold-plated connectors maintain a low-resistance electrical path for long-term signal stability. Furthermore, the cable shielding effectively blocks external electromagnetic interference (EMI). This robust construction ensures the transducer system maintains its calibration in extreme temperatures.
Engineers deploy this 8.0-meter extension cable in large-scale power generation and oil facilities. It primarily functions in monitoring steam turbines, centrifugal compressors, and cooling tower fans. Moreover, the extended length facilitates flexible routing from internal probes to external junction boxes. It integrates seamlessly with Bently Nevada 3500 series machinery protection racks. This hardware compatibility allows for real-time tracking of axial thrust and radial vibration. Such data is essential for implementing a successful predictive maintenance strategy.
The 330130-080-00-05 simplifies the installation process through its standardized electrical properties. It eliminates the need for complex field adjustments during probe or sensor replacement. Furthermore, the lightweight and flexible design enables easy routing through tight machine internal spaces. The secure connection interface significantly reduces signal drift and maintenance interventions. By choosing this genuine Bently Nevada component, operators maximize their monitoring system’s reliability. Ultimately, this leads to reduced unplanned downtime and improved plant productivity.
The Bently Nevada 330730-080-00-00 functions as a high-precision signal conduit within the 3300 XL 11mm Proximity Transducer System. This specific cable model enables the seamless transmission of displacement and vibration data from the proximity probe to the Proximitor sensor. By maintaining a constant electrical impedance, the cable ensures that the monitoring system captures accurate mechanical data from high-speed rotating assets.
Technicians primarily deploy the 3300 XL 11mm system when an application requires a broader linear range than standard 8mm sensors can provide. Consequently, this extension cable becomes a critical component in monitoring large-scale machinery where shaft movement or clearances are more substantial.
Brand: Bently Nevada (Baker Hughes)
Model/Part Number: 330730-080-00-00
System Series: 3300 XL 11mm
Cable Length: 8.0 meters (approx. 26.2 feet)
Armor Option: Non-armored (00 configuration)
Connector Option: Standard ClickLoc coaxial connectors
Agency Approvals: Multiple approvals for hazardous areas
Net Weight: 0.28 kg
Beyond basic signal relay, the 330730-080-00-00 extension cable actively supports predictive maintenance strategies. By delivering high-fidelity vibration signals, the cable allows the diagnostic system to identify early-stage faults such as bearing wear, rotor imbalance, or shaft misalignment. Furthermore, this proactive data stream helps operators avoid catastrophic mechanical failures and reduces the high costs associated with unplanned downtime.
Specific applications include:
Monitoring axial position and radial vibration in large steam or gas turbines.
Tracking shaft displacement in high-capacity centrifugal compressors.
Providing phase reference signals via Keyphasor integration for speed and timing analysis.
Bently Nevada manufactures the 330730-080-00-00 to withstand the rigorous thermal and chemical conditions found in power plants and refineries. Although this version lacks external armor, the high-quality jacketing material provides excellent flexibility and chemical resistance. Additionally, the patented ClickLoc connectors facilitate a secure, vibration-proof connection. These connectors snap firmly into place, ensuring that electrical continuity remains intact even when the machinery experiences intense high-frequency oscillations.
