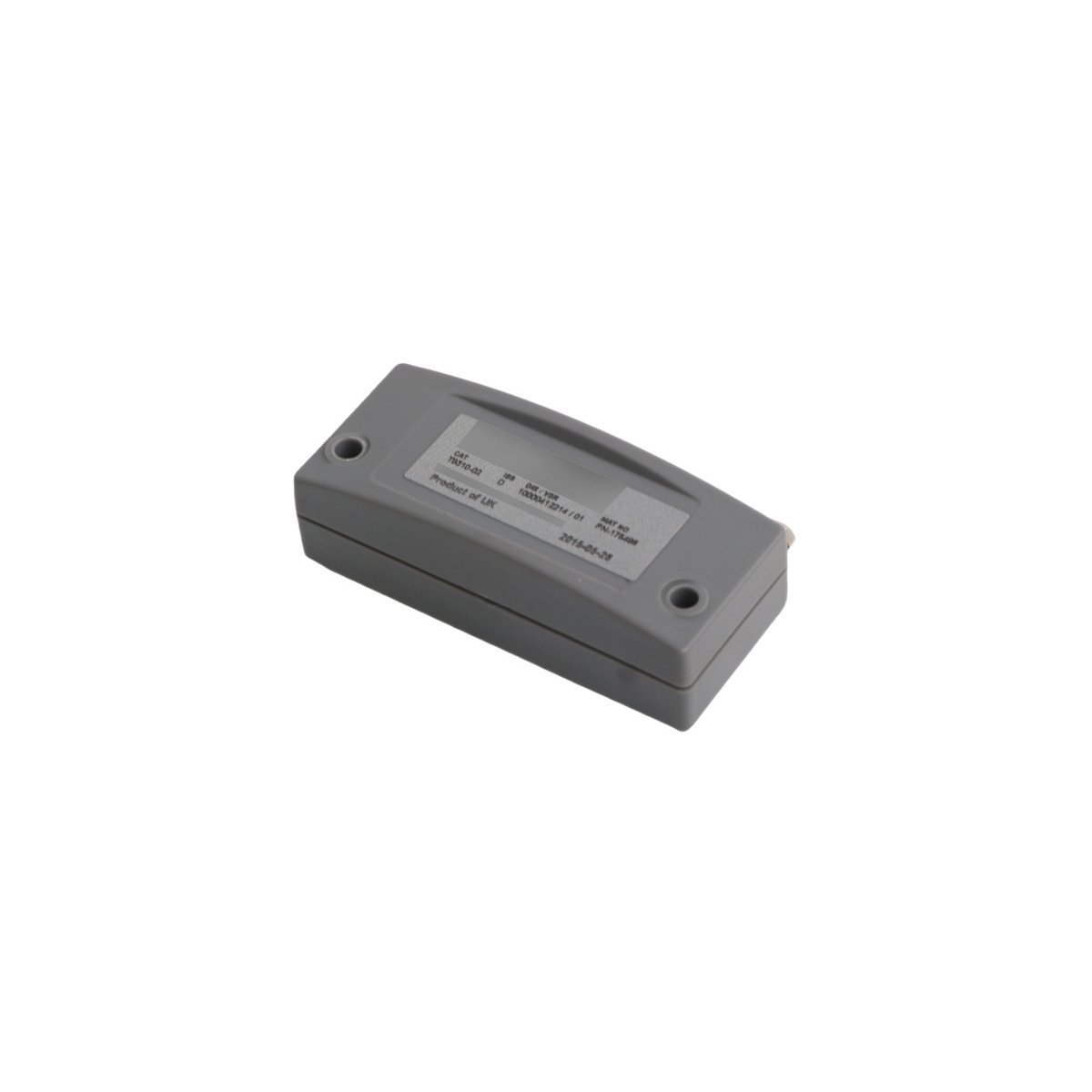

The ICS Triplex T9310-02 is a 2-meter high-integrity extension cable designed for the Trusted TMR safety system. It provides secure, shielded communication between system racks, ensuring low-latency data transmission and robust EMI protection for SIL 3-rated safety-instrumented functions
The ICS Triplex T9310-02 functions as a high-integrity signal transmission link specifically engineered for the Trusted Triple Modular Redundant (TMR) safety system. This extension cable actively facilitates the connection between various system components, such as I/O chassis, expansion racks, or communication modules. By utilizing high-bandwidth shielded conductors, the T9310-02 ensures that time-critical safety data moves across the system architecture without interference or signal degradation. In essence, it acts as a vital physical conduit, thereby allowing the Trusted controller to manage distributed I/O modules with the same deterministic speed as local hardware.
The T9310-02 manages the complexities of high-speed data transfer by employing precision-twisted pairs that minimize internal crosstalk. This cable actively protects the integrity of the safety bus; consequently, it prevents data packet loss even when routed through environments with high electrical noise. In addition to this noise immunity, the cable incorporates robust strain-relief features that protect the internal conductors from mechanical stress during installation.
Furthermore, the T9310-02 utilizes specialized connectors designed to maintain a low-impedance electrical path across the entire interface. As a result of this high-quality termination, the system avoids signal reflections that could lead to communication errors or safety loop timeouts. Moreover, the cable supports the high-speed synchronization required for TMR voting; accordingly, the primary processor can communicate with expansion units without introducing dangerous latencies. In light of these performance characteristics, the cable serves as a reliable bridge that maintains the safety integrity level (SIL) of the overall system.
Engineers prioritize the ICS Triplex T9310-02 for safety-critical installations in sectors such as subsea oil production, petrochemical refining, and aerospace testing. The cable provides the durability necessary to survive the mechanical vibration and thermal fluctuations common in industrial control rooms. Beyond its physical toughness, the extension cable facilitates a flexible system layout, thereby allowing designers to optimize cabinet space by placing expansion racks where they are most accessible.
Because the cable features a standardized plug-and-play design, maintenance personnel can perform rapid system expansions or hardware replacements without the risk of wiring errors. Ultimately, the T9310-02 delivers the stable connectivity and low-latency performance required to protect personnel and high-value industrial assets, thus upholding the operational reliability of the Trusted safety platform. By virtue of its high-specification construction, this cable ensures that the safety-instrumented system remains resilient against both electrical and physical stressors.
The Bently Nevada 330730-080-00-00 functions as a high-precision signal conduit within the 3300 XL 11mm Proximity Transducer System. This specific cable model enables the seamless transmission of displacement and vibration data from the proximity probe to the Proximitor sensor. By maintaining a constant electrical impedance, the cable ensures that the monitoring system captures accurate mechanical data from high-speed rotating assets.
Technicians primarily deploy the 3300 XL 11mm system when an application requires a broader linear range than standard 8mm sensors can provide. Consequently, this extension cable becomes a critical component in monitoring large-scale machinery where shaft movement or clearances are more substantial.
Brand: Bently Nevada (Baker Hughes)
Model/Part Number: 330730-080-00-00
System Series: 3300 XL 11mm
Cable Length: 8.0 meters (approx. 26.2 feet)
Armor Option: Non-armored (00 configuration)
Connector Option: Standard ClickLoc coaxial connectors
Agency Approvals: Multiple approvals for hazardous areas
Net Weight: 0.28 kg
Beyond basic signal relay, the 330730-080-00-00 extension cable actively supports predictive maintenance strategies. By delivering high-fidelity vibration signals, the cable allows the diagnostic system to identify early-stage faults such as bearing wear, rotor imbalance, or shaft misalignment. Furthermore, this proactive data stream helps operators avoid catastrophic mechanical failures and reduces the high costs associated with unplanned downtime.
Specific applications include:
Monitoring axial position and radial vibration in large steam or gas turbines.
Tracking shaft displacement in high-capacity centrifugal compressors.
Providing phase reference signals via Keyphasor integration for speed and timing analysis.
Bently Nevada manufactures the 330730-080-00-00 to withstand the rigorous thermal and chemical conditions found in power plants and refineries. Although this version lacks external armor, the high-quality jacketing material provides excellent flexibility and chemical resistance. Additionally, the patented ClickLoc connectors facilitate a secure, vibration-proof connection. These connectors snap firmly into place, ensuring that electrical continuity remains intact even when the machinery experiences intense high-frequency oscillations.
