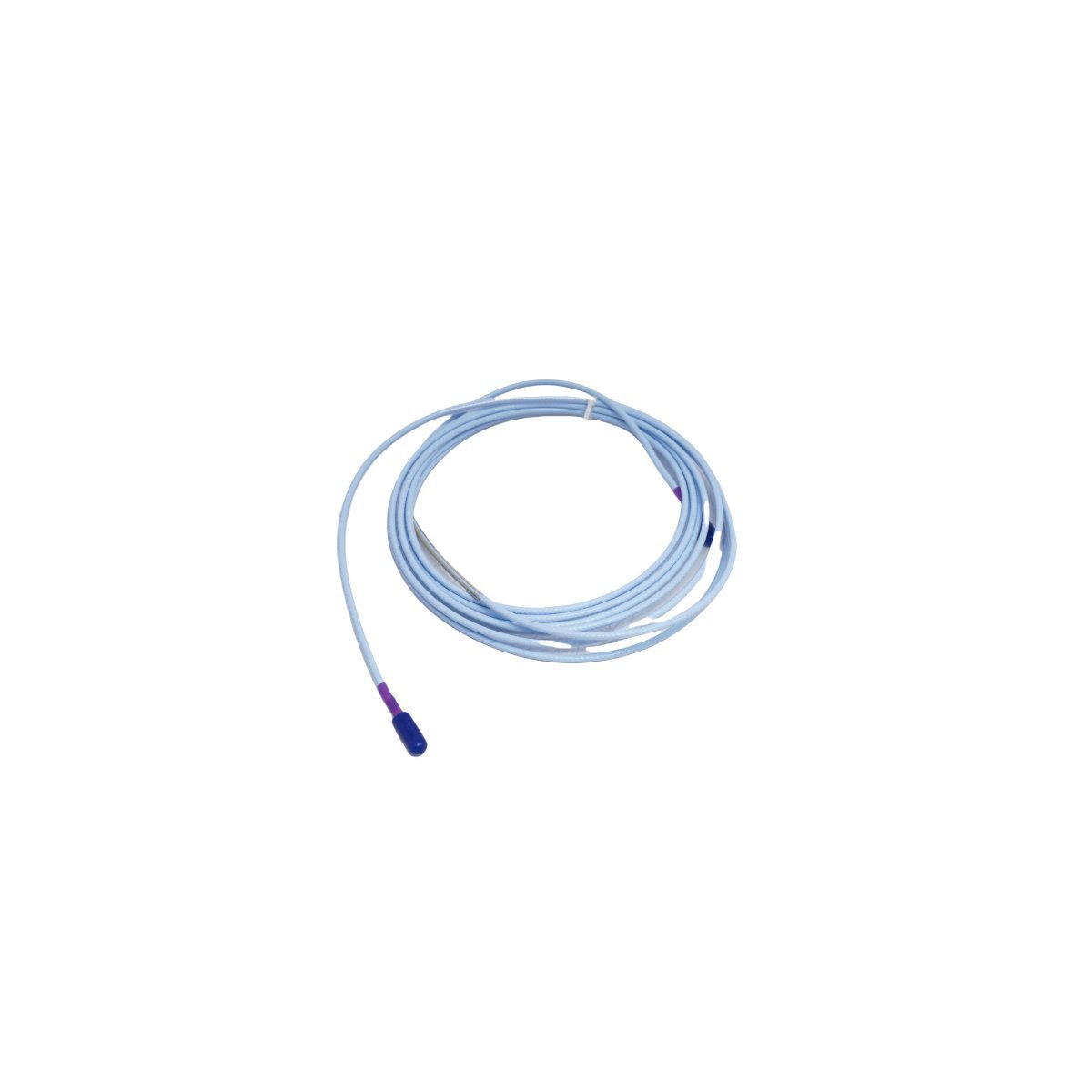

The Bently Nevada 330730-040-00-00 is a 4.0-meter extension cable for 3300 XL 11mm proximity systems. It provides stable signal transmission for critical vibration and position monitoring.
The Bently Nevada 330730-040-00-00 functions as a high-performance bridge within the 3300 XL 11mm proximity transducer system. This specialized coaxial cable connects the 11mm proximity probe to the Proximitor sensor unit. It facilitates the transmission of sensitive eddy current signals over specified distances. Furthermore, the cable design ensures minimal signal attenuation and phase shift. This accuracy remains critical for monitoring vibration and position in large-scale machinery. Consequently, it supports the overall safety of high-speed industrial assets.
The 330730-040-00-00 utilizes a high-quality FEP jacket for superior environmental resistance. This insulation protects the internal conductor against moisture, chemicals, and oil splashes. Additionally, the patented ClickLoc connectors prevent mechanical loosening in high-vibration zones. These gold-plated connectors ensure a low-resistance electrical path for long-term stability. Furthermore, the cable shielding effectively blocks external electromagnetic interference. This design preserves the high signal-to-noise ratio required for precise machinery diagnostics.
Reliability engineers deploy this extension cable in demanding power generation and petrochemical facilities. It primarily serves in monitoring large steam turbines and centrifugal compressors. Moreover, it accurately tracks axial thrust position and radial vibration levels. The 4.0-meter length provides flexible routing options within machinery housings or junction boxes. It integrates seamlessly with Bently Nevada 3500 series machinery protection racks. This compatibility ensures a fast and reliable installation process during plant maintenance.
The 330730-040-00-00 eliminates the need for complex field calibrations through its standardized electrical length. This feature simplifies component replacement and reduces machine downtime. Furthermore, the robust construction ensures a long service life in extreme industrial climates. It maintains measurement accuracy even under significant thermal cycling. By choosing this genuine extension cable, operators maximize the reliability of their protection systems. Ultimately, it provides a cost-effective solution for preventing expensive mechanical failures.
The Bently Nevada 330730-080-00-00 functions as a high-precision signal conduit within the 3300 XL 11mm Proximity Transducer System. This specific cable model enables the seamless transmission of displacement and vibration data from the proximity probe to the Proximitor sensor. By maintaining a constant electrical impedance, the cable ensures that the monitoring system captures accurate mechanical data from high-speed rotating assets.
Technicians primarily deploy the 3300 XL 11mm system when an application requires a broader linear range than standard 8mm sensors can provide. Consequently, this extension cable becomes a critical component in monitoring large-scale machinery where shaft movement or clearances are more substantial.
Brand: Bently Nevada (Baker Hughes)
Model/Part Number: 330730-080-00-00
System Series: 3300 XL 11mm
Cable Length: 8.0 meters (approx. 26.2 feet)
Armor Option: Non-armored (00 configuration)
Connector Option: Standard ClickLoc coaxial connectors
Agency Approvals: Multiple approvals for hazardous areas
Net Weight: 0.28 kg
Beyond basic signal relay, the 330730-080-00-00 extension cable actively supports predictive maintenance strategies. By delivering high-fidelity vibration signals, the cable allows the diagnostic system to identify early-stage faults such as bearing wear, rotor imbalance, or shaft misalignment. Furthermore, this proactive data stream helps operators avoid catastrophic mechanical failures and reduces the high costs associated with unplanned downtime.
Specific applications include:
Monitoring axial position and radial vibration in large steam or gas turbines.
Tracking shaft displacement in high-capacity centrifugal compressors.
Providing phase reference signals via Keyphasor integration for speed and timing analysis.
Bently Nevada manufactures the 330730-080-00-00 to withstand the rigorous thermal and chemical conditions found in power plants and refineries. Although this version lacks external armor, the high-quality jacketing material provides excellent flexibility and chemical resistance. Additionally, the patented ClickLoc connectors facilitate a secure, vibration-proof connection. These connectors snap firmly into place, ensuring that electrical continuity remains intact even when the machinery experiences intense high-frequency oscillations.
