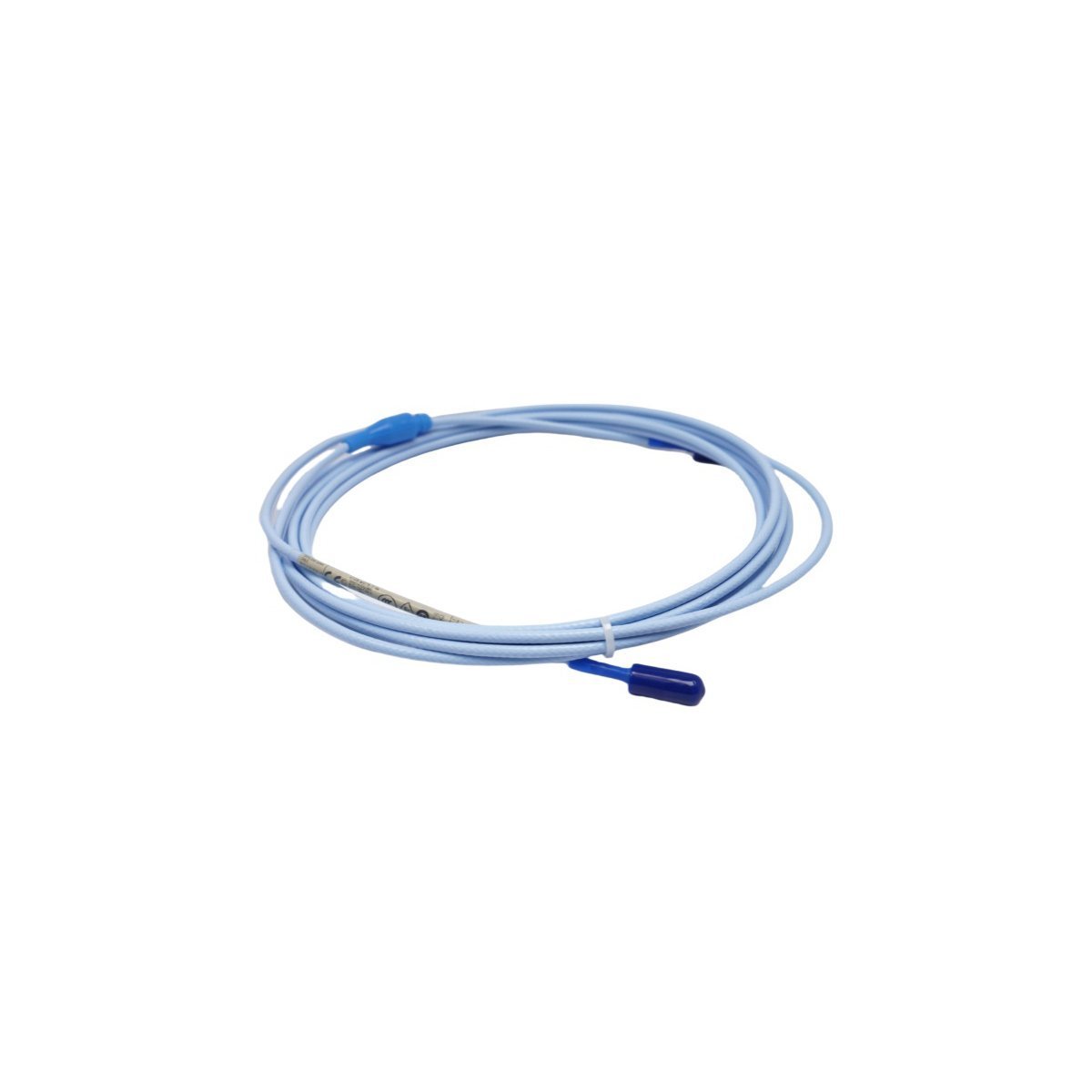

Bently Nevada 330130-040-02-CN 3300 XL Standard Extension Cable

Technical Specification Overview

The Bently Nevada 330130-040-02-CN functions as a high-integrity signal link for the 3300 XL 8mm Proximity Transducer System. This extension cable facilitates the transfer of raw displacement data from the proximity probe to the Proximitor sensor. By maintaining a strictly controlled electrical impedance across its entire length, the cable prevents signal distortion. Consequently, the monitoring system captures an accurate representation of the mechanical vibration and axial position within critical rotating machinery.

Design and Protective Capabilities

Furthermore, the 330130-040-02-CN features a non-armored design that prioritizes flexibility, allowing for easier routing through complex conduit systems or tight machine housings. This specific variant includes specialized silicone boots over the connectors, which provide an extra layer of environmental sealing. These boots effectively block the ingress of moisture, oil, and corrosive contaminants, thereby preserving the electrical integrity of the connection in the humid or oily atmospheres typical of turbine decks.

• Manufacturer: Bently Nevada
• Model Number: 330130-040-02-CN
• System Series: 3300 XL 8mm
• Cable Length: 4.0 Meters
• Armor Option: Non-armored
• Connector Option: ClickLoc connectors with silicone boots
• Certification: CN
• Operating Temperature: -51°C to +177°C
• Minimum Bend Radius: 25.4 mm

Operational Impact and Industrial Applications

This extension cable actively supports machinery protection strategies by delivering clean, low-noise signals to the 3500 Monitoring System. Because the “CN” designation confirms compliance with regional Chinese standards, the hardware is fully certified for deployment in local industrial projects. Consequently, plant operators can monitor critical parameters—such as shaft orbit and thrust displacement—with total confidence in the data’s precision.

Primary industrial applications include:

• Radial Vibration: Measuring shaft movement in centrifugal compressors and high-speed pumps.
• Axial Position: Tracking the thrust displacement of rotors in steam and gas turbines.
• Keyphasor Signals: Providing a phase reference for diagnostic analysis and rotor balancing.

Mechanical Integrity and Reliability

To ensure a fail-safe link, Bently Nevada utilizes patented ClickLoc connectors that snap together with a vibration-resistant lock. This mechanism prevents the signal attenuation that typically occurs if standard connectors loosen due to the high-frequency mechanical oscillations found near bearing housings. Additionally, the cable’s advanced shielding effectively rejects electromagnetic interference (EMI), ensuring that the Proximitor receives a clean signal for precise diagnostic analysis in power plants and refineries.
