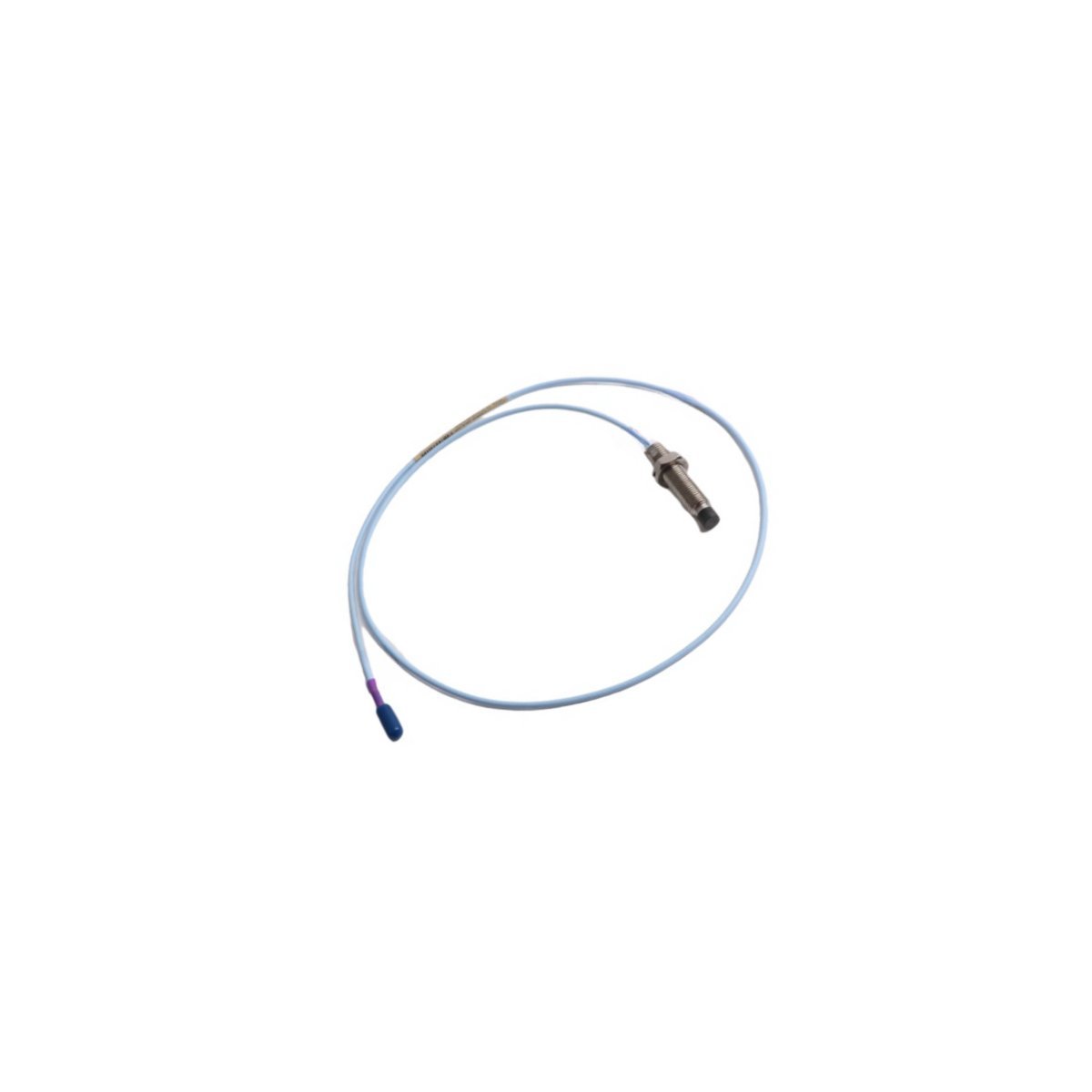

The Bently Nevada 330703-000-060-10-02-00 is a 6-meter armored extension cable for 3300 XL 11mm Proximity Transducer Systems. It features high-temperature resistance and stainless steel armor to ensure reliable vibration monitoring in demanding industrial environments.
The Bently Nevada 330703-000-060-10-02-00 serves as a critical link within the 3300 XL 11mm Proximity Transducer System. This extension cable facilitates precise signal transmission between the proximity probe and the Proximitor sensor. Engineers specifically designed this component to handle the demands of industrial vibration monitoring. It maintains high signal integrity over various distances. This cable is compatible with 11mm probe systems used for shaft vibration and position measurements.
This extension cable utilizes advanced shielding to prevent electromagnetic interference. It ensures that the Transducer System remains accurate in high-noise electrical environments. The stainless steel armor provides mechanical protection against crushing and abrasion. Gold-plated brass connectors offer superior corrosion resistance and secure physical links. This robust construction reduces the risk of signal degradation during long-term operation.
Turbomachinery protection systems rely on this cable for continuous condition monitoring. It excels in monitoring large steam turbines and centrifugal compressors. Power generation plants use this system to detect shaft misalignment and bearing wear. The cable also supports axial displacement measurements in heavy industrial pumps. Reliability in these applications prevents catastrophic machine failure and costly downtime.
The modular design allows for rapid replacement in the field. Technicians should ensure the total system length remains consistent for calibrated accuracy. Properly securing the armored sheath prevents excessive vibration of the cable itself. Routine inspections help identify wear on the outer jacket before signal loss occurs. Using genuine Bently Nevada components preserves the original system calibration and warranty standards.
The Bently Nevada 330730-080-00-00 functions as a high-precision signal conduit within the 3300 XL 11mm Proximity Transducer System. This specific cable model enables the seamless transmission of displacement and vibration data from the proximity probe to the Proximitor sensor. By maintaining a constant electrical impedance, the cable ensures that the monitoring system captures accurate mechanical data from high-speed rotating assets.
Technicians primarily deploy the 3300 XL 11mm system when an application requires a broader linear range than standard 8mm sensors can provide. Consequently, this extension cable becomes a critical component in monitoring large-scale machinery where shaft movement or clearances are more substantial.
Brand: Bently Nevada (Baker Hughes)
Model/Part Number: 330730-080-00-00
System Series: 3300 XL 11mm
Cable Length: 8.0 meters (approx. 26.2 feet)
Armor Option: Non-armored (00 configuration)
Connector Option: Standard ClickLoc coaxial connectors
Agency Approvals: Multiple approvals for hazardous areas
Net Weight: 0.28 kg
Beyond basic signal relay, the 330730-080-00-00 extension cable actively supports predictive maintenance strategies. By delivering high-fidelity vibration signals, the cable allows the diagnostic system to identify early-stage faults such as bearing wear, rotor imbalance, or shaft misalignment. Furthermore, this proactive data stream helps operators avoid catastrophic mechanical failures and reduces the high costs associated with unplanned downtime.
Specific applications include:
Monitoring axial position and radial vibration in large steam or gas turbines.
Tracking shaft displacement in high-capacity centrifugal compressors.
Providing phase reference signals via Keyphasor integration for speed and timing analysis.
Bently Nevada manufactures the 330730-080-00-00 to withstand the rigorous thermal and chemical conditions found in power plants and refineries. Although this version lacks external armor, the high-quality jacketing material provides excellent flexibility and chemical resistance. Additionally, the patented ClickLoc connectors facilitate a secure, vibration-proof connection. These connectors snap firmly into place, ensuring that electrical continuity remains intact even when the machinery experiences intense high-frequency oscillations.
