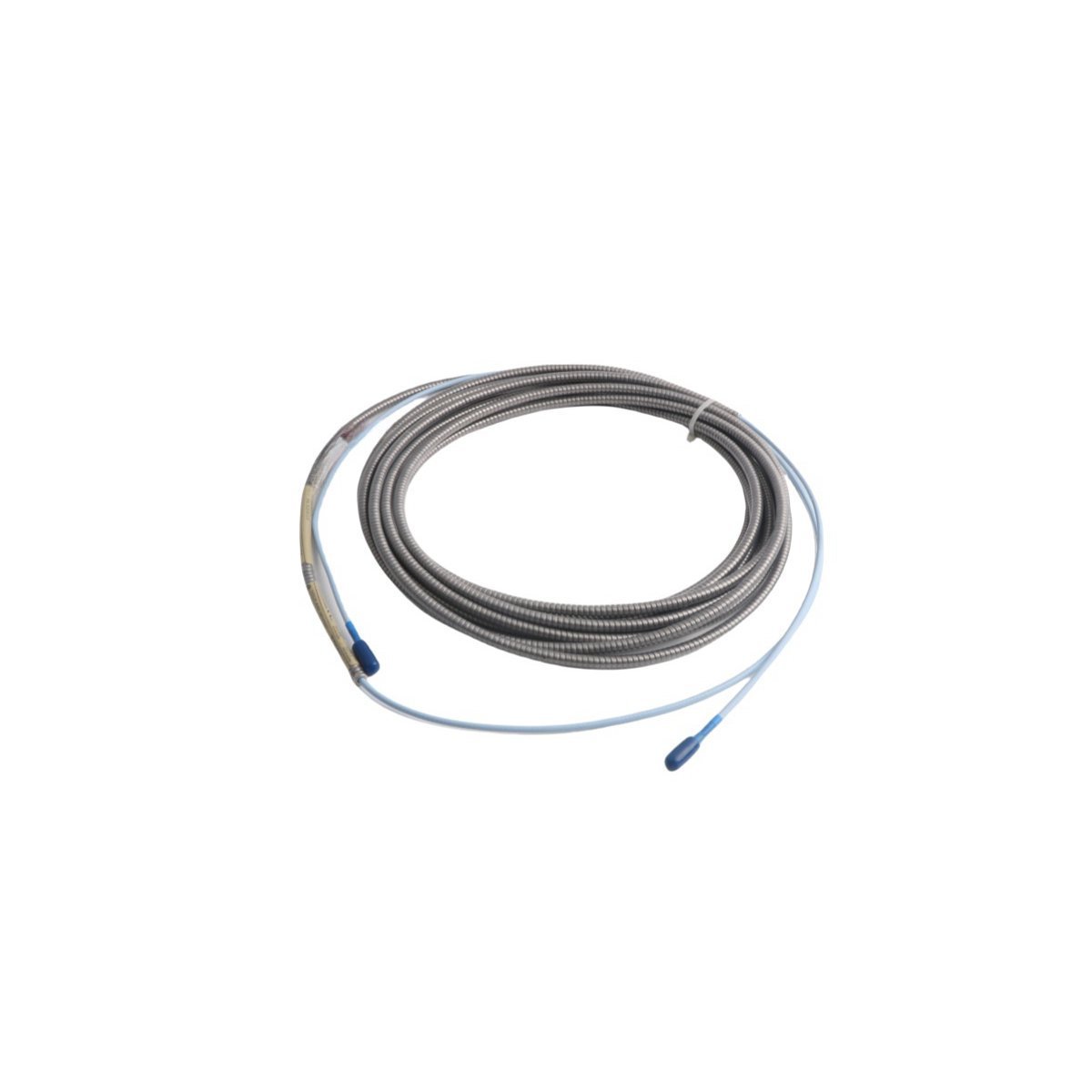

The Bently Nevada 330130-080-01-05 is an 8.0-meter armored extension cable for 3300 XL 8mm proximity systems. It provides robust mechanical protection and high-fidelity signal transmission.
The Bently Nevada 330130-080-01-05 acts as a critical link in the 3300 XL 8mm proximity transducer system. This armored cable connects the proximity probe to the Proximitor sensor. It transmits high-frequency eddy current signals with minimal interference. Furthermore, the armored shielding provides superior protection against mechanical crushing or abrasion. This ensures consistent data flow for machinery protection and monitoring. Consequently, it supports the overall reliability of rotating asset management.
This extension cable features a rugged fluoropolymer jacket over stainless steel armor. This combination resists chemical exposure, moisture, and high temperatures. Additionally, the patented ClickLoc connectors prevent accidental disconnection in high-vibration zones. The gold-plated contacts maintain low electrical resistance over long-term operation. Furthermore, the shielding effectively blocks electromagnetic interference from nearby power equipment. This design preserves the accuracy of displacement and vibration signals.
Maintenance teams install this armored cable on high-value machinery in diverse environments. It excels in power plants, oil refineries, and gas compression stations. Specifically, it supports monitoring for steam turbines and large industrial fans. The armor proves essential in areas with high foot traffic or mechanical hazards. Moreover, it facilitates remote sensor mounting far from the monitoring rack. This versatility allows for flexible system architecture across large industrial facilities.
The 330130-080-01-05 offers seamless compatibility with standard 3300 XL 8mm probes. It maintains the total system electrical length of 9.0 meters when paired correctly. Furthermore, the lightweight armored design simplifies cable tray routing and installation. The robust connectors do not require special tools for secure mating. Choosing this genuine Bently Nevada cable ensures maximum system uptime. Ultimately, it protects critical rotating assets from undetected mechanical issues.
The Bently Nevada 330730-080-00-00 functions as a high-precision signal conduit within the 3300 XL 11mm Proximity Transducer System. This specific cable model enables the seamless transmission of displacement and vibration data from the proximity probe to the Proximitor sensor. By maintaining a constant electrical impedance, the cable ensures that the monitoring system captures accurate mechanical data from high-speed rotating assets.
Technicians primarily deploy the 3300 XL 11mm system when an application requires a broader linear range than standard 8mm sensors can provide. Consequently, this extension cable becomes a critical component in monitoring large-scale machinery where shaft movement or clearances are more substantial.
Brand: Bently Nevada (Baker Hughes)
Model/Part Number: 330730-080-00-00
System Series: 3300 XL 11mm
Cable Length: 8.0 meters (approx. 26.2 feet)
Armor Option: Non-armored (00 configuration)
Connector Option: Standard ClickLoc coaxial connectors
Agency Approvals: Multiple approvals for hazardous areas
Net Weight: 0.28 kg
Beyond basic signal relay, the 330730-080-00-00 extension cable actively supports predictive maintenance strategies. By delivering high-fidelity vibration signals, the cable allows the diagnostic system to identify early-stage faults such as bearing wear, rotor imbalance, or shaft misalignment. Furthermore, this proactive data stream helps operators avoid catastrophic mechanical failures and reduces the high costs associated with unplanned downtime.
Specific applications include:
Monitoring axial position and radial vibration in large steam or gas turbines.
Tracking shaft displacement in high-capacity centrifugal compressors.
Providing phase reference signals via Keyphasor integration for speed and timing analysis.
Bently Nevada manufactures the 330730-080-00-00 to withstand the rigorous thermal and chemical conditions found in power plants and refineries. Although this version lacks external armor, the high-quality jacketing material provides excellent flexibility and chemical resistance. Additionally, the patented ClickLoc connectors facilitate a secure, vibration-proof connection. These connectors snap firmly into place, ensuring that electrical continuity remains intact even when the machinery experiences intense high-frequency oscillations.
