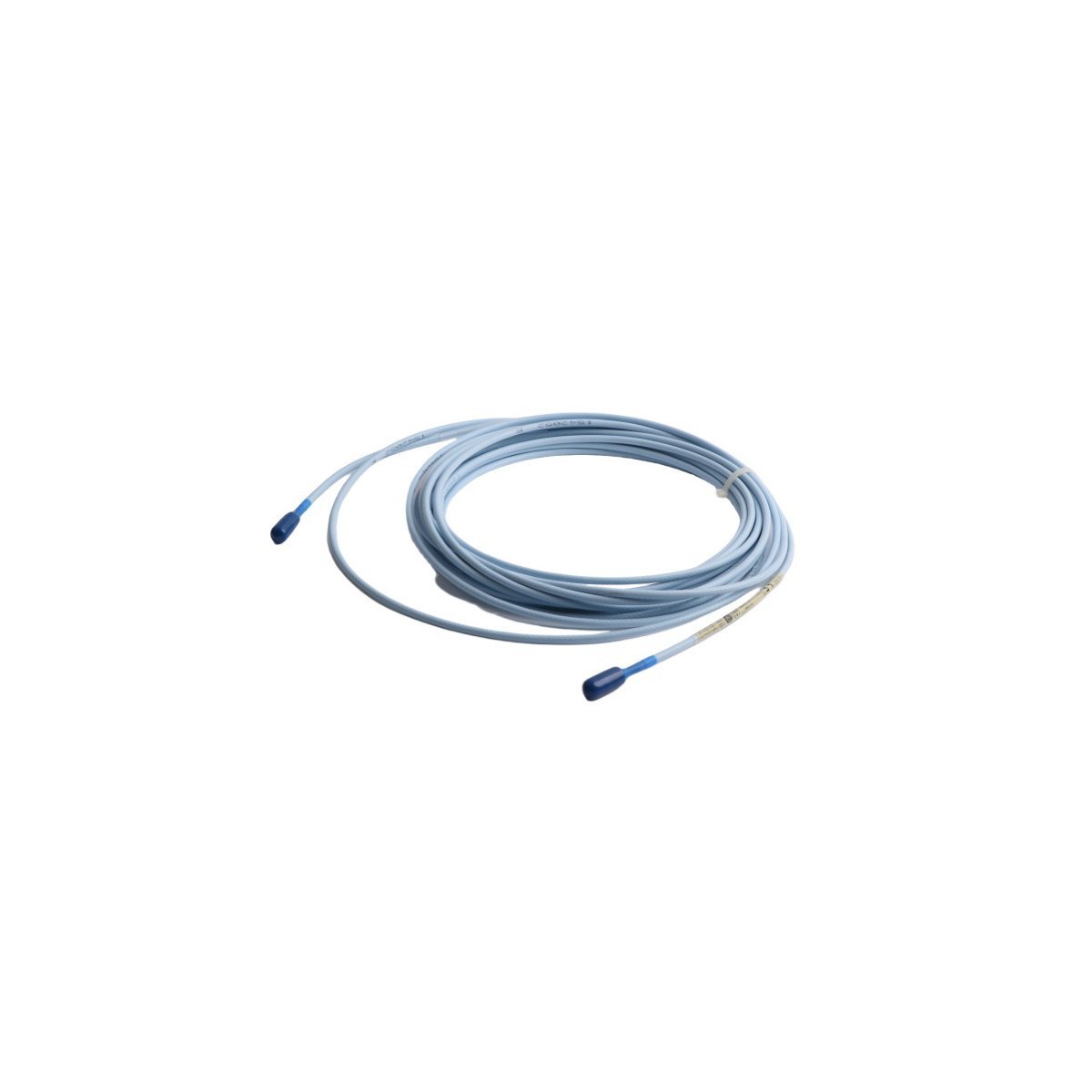

Bently Nevada 330130-070-00-CN Extension Cable

Technical Specification Overview

The Bently Nevada 330130-070-00-CN serves as a critical signal transmission component within the 3300 XL 8mm Proximity Transducer System. This standard extension cable bridges the connection between the proximity probe and the Proximitor sensor, ensuring that high-frequency vibration and displacement signals reach the monitoring system without distortion. By maintaining precise electrical impedance, the cable allows for the accurate measurement of shaft movement in mission-critical rotating machinery.

Design and Functional Capabilities

Engineers specifically designed the 3300 XL series to provide superior performance in harsh industrial environments. Unlike armored variants, this non-armored model offers enhanced flexibility for routing through conduits and tight spaces within control cabinets. Furthermore, the cable features a specialized jacketing material that resists common industrial lubricants and moisture, thereby preserving signal integrity over long-term operation.

• Brand: Bently Nevada
• Model Number: 330130-070-00-CN
• System Series: 3300 XL 8mm
• Cable Length: 7.0 meters
• Armor Option: 00
• Agency Approvals: CN (Certified for Chinese localized standards/hazardous areas)
• Connector Technology: ClickLoc miniature coaxial connectors
• Temperature Rating: -51°C to +177°C

Operational Impact and Applications

This extension cable actively supports predictive maintenance by delivering high-fidelity data to Turbine Supervisory Instrumentation (TSI). Consequently, operators can detect early-stage mechanical issues—such as shaft misalignment, bearing degradation, or rotor imbalance—before they escalate into catastrophic failures. Moreover, the integration of this cable into a Bently Nevada framework optimizes asset life and reduces the frequency of unplanned outages.

Key applications include:

• Vibration Monitoring: Tracking radial vibration in steam and gas turbines.
• Position Sensing: Measuring axial thrust position in high-speed centrifugal compressors.
• Speed Analysis: Providing phase reference signals through Keyphasor sensors for timing and rotational speed diagnostics.

Mechanical Integrity and Installation

To ensure a reliable electrical path, the 330130-070-00-CN utilizes patented ClickLoc connectors. These connectors provide a secure, vibration-resistant “snap” fit that prevents accidental disconnection caused by the intense mechanical oscillations of heavy machinery. Additionally, the “CN” designation ensures the cable complies with specific regional safety and hazardous area requirements, making it suitable for deployment in regulated industrial zones.
