SKU: 330901-00-09-10-02-05

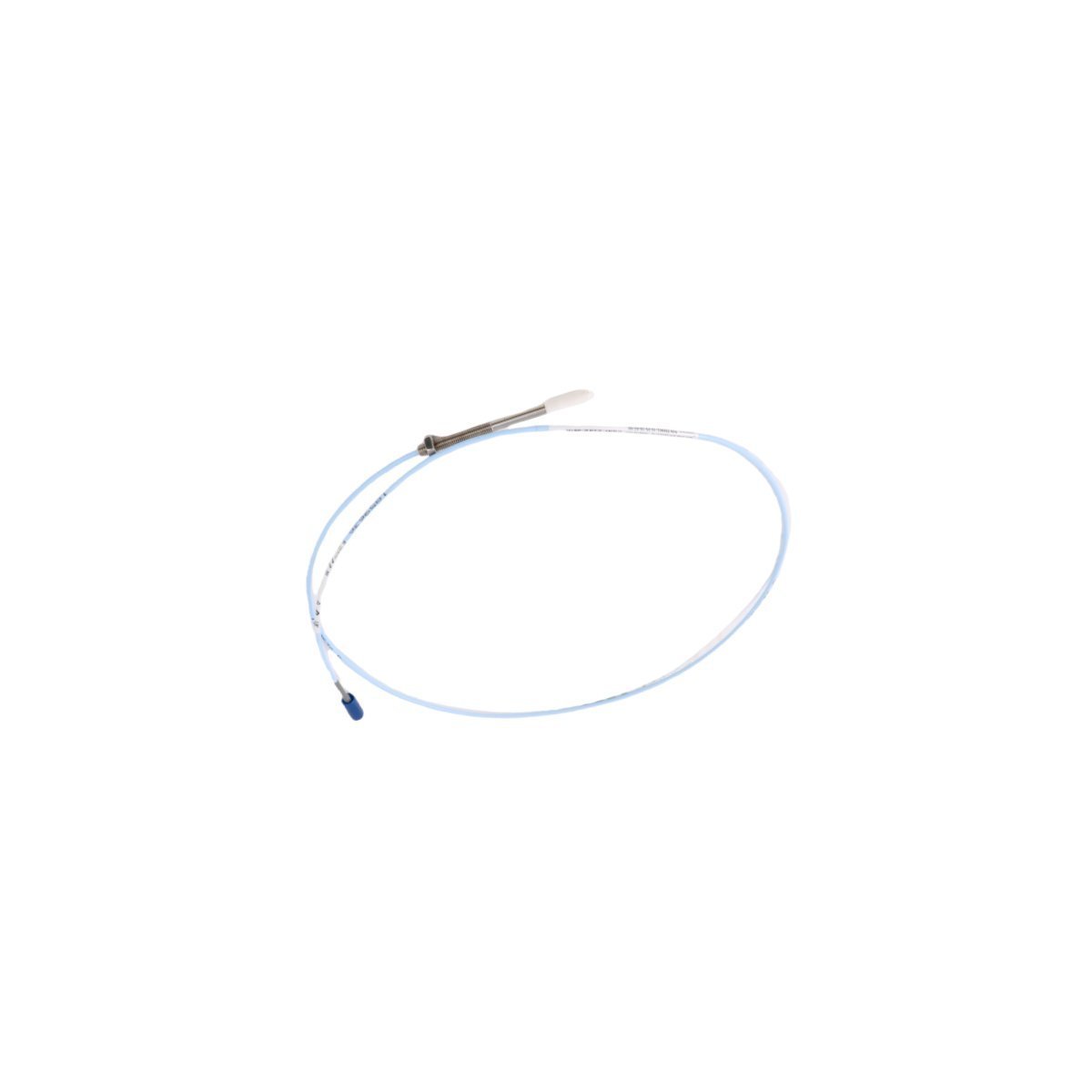

Bently Nevada 330901-00-09-10-02-05 3300 NSv Proximity Probe

The Bently Nevada 330901-00-09-10-02-05 is an intrinsically safe 3300 NSv Proximity Probe designed for small shaft vibration and position monitoring. Featuring a 1/4-28 UNF thread and ClickLoc connector, it provides high-precision displacement sensing in confined industrial spaces where standard sensors are unsuitable

Product Description

The Bently Nevada 330901-00-09-10-02-05 functions as a specialized eddy current sensor within the 3300 NSv (Non-Standard vent) Proximity Transducer System. This probe measures static and dynamic distances between the probe tip and a conductive target, typically a rotating shaft. Because engineers often encounter confined installation spaces or small-diameter shafts, this “NSv” variant utilizes a tighter magnetic field to prevent interference from surrounding metal, ensuring accurate vibration and position data in restricted areas.

Furthermore, this specific configuration features a 1/4-28 UNF thread and an unthreaded length optimized for precise gapping. The probe utilizes a high-quality polyphenylene sulfide (PPS) tip, which withstands the harsh oils and high temperatures common in industrial machinery housings. Since the system converts mechanical movement into a proportional voltage signal, it allows the 3500 Monitoring System to detect early signs of bearing wear, shaft misalignment, or rotor instability. Its robust construction ensures long-term reliability for critical assets where standard proximity sensors cannot be physically accommodated.

Key Technical Characteristics

Manufacturer: Bently Nevada
Model Identification: 330901-00-09-10-02-05
Thread Size: 1/4-28 UNF
Unthreaded Length: 0.0 inches (Option -00)
Overall Case Length: 0.9 inches (Option -09)
Total Length: 1.0 meter (Option -10)
Connector Type: Miniature coaxial ClickLoc connector (Option -02)
Agency Approval: Multiple approvals including ATEX/IECEx (Option -05)
System Compatibility: Primarily for use with 3300 NSv Proximitor Sensors
Target Material: Calibrated for AISI 4140 steel (standard)
Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)

Industrial Applications

Reliability teams implement the 330901 NSv probe in specialized machinery monitoring environments. Specifically, the probe delivers critical data for:

High-Speed Centrifugal Compressors: Monitoring radial vibration on small shafts where side-clearance is minimal.
Auxiliary Pump Protection: Tracking axial thrust position to prevent internal component contact and failure.
Tachometer Applications: Providing phase reference (Keyphasor) signals from small-diameter shafts or gear teeth.
Aviation and Test Stands: Measuring displacements in compact turbine engines or experimental mechanical setups.
