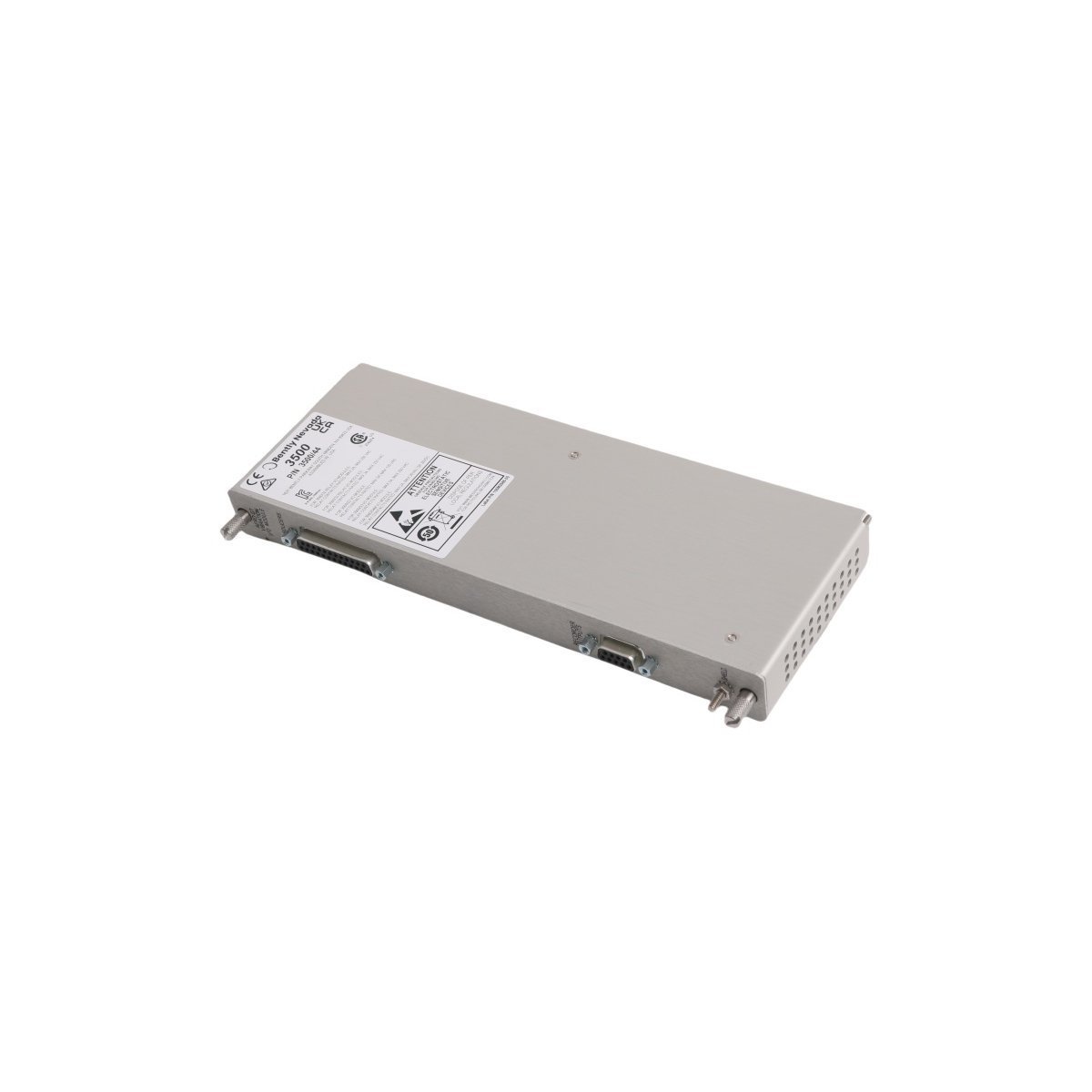

Bently Nevada 3500/44-02-00 126623-01 Aero GT I/O Module

Product Functional Overview

The Bently Nevada 3500/44-02-00 empowers plant operators to monitor the complex vibration profiles of aeroderivative gas turbines within the 3500 Machinery Protection System framework. This four-channel solution specializes in processing the high-frequency signals and multiple rotor speeds—such as N1 and N2 spools—that characterize aero-derivative assets. By integrating the 126623-01 I/O module, the system establishes a robust physical bridge between field-mounted transducers and the centralized monitoring rack.

Building on this structural foundation, the 126623-01 I/O module executes high-fidelity signal conditioning for a wide array of industrial sensors, including both accelerometers and velocity transducers.¹ The monitor actively employs sophisticated tracking filters to isolate specific spectral components related to individual shaft speeds. Consequently, this precision filtering mitigates the risk of false alarms by distinguishing genuine mechanical instabilities from ambient industrial noise.

Beyond its core measurement capabilities, the module incorporates an “External Termination” architecture to maximize system availability. This specific -02 configuration streamlines maintenance procedures, as technicians can disconnect field wiring without interrupting the monitor’s internal operations. Complementing this serviceability, the hardware withstands the rigorous thermal and electromagnetic demands of offshore platforms and power generation facilities. Ultimately, the 3500/44-02-00 safeguards high-value rotating machinery through continuous real-time diagnostics and military-grade component reliability.²

Key Technical Characteristics

• Monitoring Capacity: Four independent channels for continuous vibration surveillance
• Transducer Compatibility: Supports diverse inputs including Aero GT specific velocity and acceleration sensors
• Advanced Filtering: Utilizes programmable tracking filters for multi-spool turbine synchronization
• System Interface: 126623-01 External Termination I/O module for simplified cable management
• Signal Integrity: Maintains a rigorous accuracy standard within $\pm 1\%$ of the full-scale range
• Diagnostic Suite: Performs automated built-in self-tests (BIST) to ensure hardware health
• Environmental Tolerance: Operates across a broad temperature gradient from -20°C to +70°C
• Mechanical Integration: Designed for standard backplane installation in the Bently Nevada 3500 rack
• Regulatory Compliance: 00 Option indicates standard approval ratings for non-hazardous areas
• Physical Footprint: Compact 2.5 cm x 11 cm x 24 cm profile weighing 0.38 kg

Technical Specifications Summary

• Manufacturer: Bently Nevada (Baker Hughes)
• Monitor Model: 3500/44
• Ordering Option: 3500/44-02-00
• I/O Module Part: 126623-01
• Application: Aeroderivative Gas Turbine (Aero GT) Protection
• Input Signal: 4 to 20 mA or Voltage proportional to vibration
• Mounting Type: 3500 Rack-mount (Backplane)
• Protection Class: IP20 / NEMA 1 equivalent
• Data Output: Modbus or standard internal 3500 rack communications
